1. Product Title

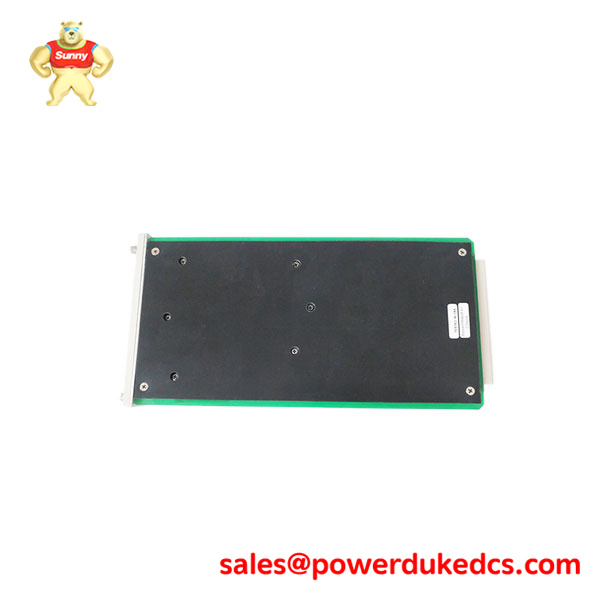

Bently Nevada 3500/15 127610-01 – AC Power Supply Module
2. Product Overview
The Bently Nevada 3500/15 127610-01 is a half-height AC power supply module for the Bently Nevada 3500 series machinery protection system. This module converts wide-range AC mains input into regulated 24 Vdc power that feeds all monitoring cards in the rack, ensuring continuous vibration, position, and speed protection for critical rotating equipment. It solves power reliability challenges in industrial settings through universal voltage acceptance, high efficiency, and redundant capability, preventing system outages during voltage fluctuations. Following the established 3500/15 pattern from modules like 114M5335-01, the Bently Nevada 3500/15 127610-01 installs in designated left-side rack slots with hot-swap functionality for zero-downtime maintenance.
3. Technical Specifications
- Brand: Bently Nevada
- Model: Bently Nevada 3500/15 127610-01
- Warranty: One Year
- Condition: 100% New & Original
- Input Voltage: 90-264 VAC, 47-63 Hz (universal)
- Output Voltage: 24 Vdc ±1% regulated
- Output Power: 100-130 W continuous (5.5 A max)
- Efficiency: ≥90% at full load
- Operating Temperature: -30°C to +65°C
- Dimensions: 120.7 x 50.8 x 251.5 mm
- Weight: 1.39 kg
- Mounting: Half-height rack slot (left side positions)
4. Key Features & Benefits
- Universal AC Input: Accepts global mains voltage without transformers, simplifying worldwide installations.
- Redundant Operation: Pairs with second module for automatic failover, achieving >99.999% availability in dual setups.
- Hot-Swappable Design: Replaces without rack power interruption, enabling predictive maintenance scheduling.
- Comprehensive Protection: Includes over-voltage, over-current, and short-circuit safeguards for downstream electronics.
5. Application Scenarios
- Combined Cycle Power Plants: Supplies stable DC bus for turbine vibration monitoring during grid frequency variations.
- LNG Compressor Trains: Powers protection racks in hazardous areas with universal AC compatibility.
- Paper Mill Drives: Ensures continuous monitoring power despite plant electrical disturbances.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the Bently Nevada 3500/15 127610-01 ?
A: It converts AC mains to regulated 24 Vdc power for all 3500 rack monitoring modules. - Q: Is Bently Nevada 3500/15 127610-01 compatible with legacy systems?
A: Yes, fits standard 3500 racks and supports redundancy with DC PIM modules like 114M5335-01.
