1. Product Title

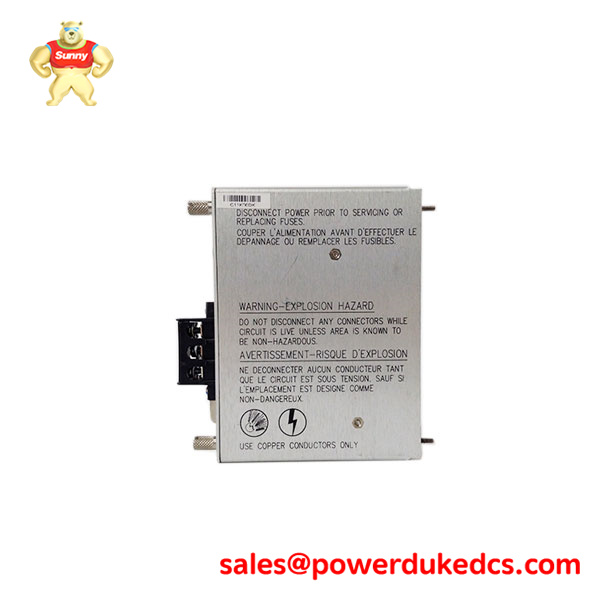

Bently Nevada 3500/15 114M5330-01 – DC Power Supply Module
2. Product Overview
The 3500/15 114M5330-01 is a low-voltage DC power supply module designed for the 3500 series machinery protection and monitoring system. This module provides stable power distribution to rack components, ensuring continuous operation of vibration, position, and speed monitoring functions in critical rotating equipment. It addresses power reliability challenges in industrial environments by offering dual-redundant capability and comprehensive line noise filtering, preventing system failures due to voltage fluctuations or transients. The 3500/15 114M5330-01 supports worldwide DC input compatibility while maintaining SIL 2 safety integrity, making it essential for high-availability applications in power generation and petrochemical processing.
3. Technical Specifications
- Brand: Bently Nevada
- Model:3500/15 114M5330-01
- Warranty: One Year
- Condition: 100% New & Original
- Input Voltage: 24 Vdc low voltage (18-36 Vdc range)
- Output Voltage: +24 Vdc regulated to rack modules
- Power Rating: 100 Watts continuous
- Redundancy: Dual power supplies with automatic failover
- Operating Temperature: -30°C to +65°C
- Line Filtering: EMI/RFI noise suppression standard
- Dimensions/Weight: Rack slot: 24.4 x 2.5 x 24.1 cm / 2.3 kg
- Approvals: SIL 2, ATEX/IECEx hazardous areas
4. Key Features & Benefits
- Dual Redundant Design: Automatic switchover between power supplies maintains 100% uptime during input failures or maintenance.
- Wide Input Range: Accepts 18-36 Vdc industrial supplies, eliminating need for site-specific voltage conversion.
- Integrated Filtering: Suppresses transients and EMI, protecting sensitive monitoring electronics from electrical noise.
- Hot-Swappable: Allows replacement without rack power interruption, minimizing downtime in continuous processes.
5. Application Scenarios
- Gas Turbine Generators: Powers comprehensive vibration monitoring during continuous baseload operation.
- Refinery Compressors: Ensures reliable protection system operation in electrically noisy process environments.
- Offshore Platforms: Provides stable DC power for SIL 2 safety-rated machinery protection in hazardous areas.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the 3500/15 114M5330-01 ?
A: It supplies filtered, regulated DC power to 3500 rack modules for continuous machinery monitoring. - Q: Is 3500/15 114M5330-01 compatible with legacy systems?
A: Yes, fits standard 3500 racks and supports redundancy with existing AC/DC power modules.
