Description
Product Overview

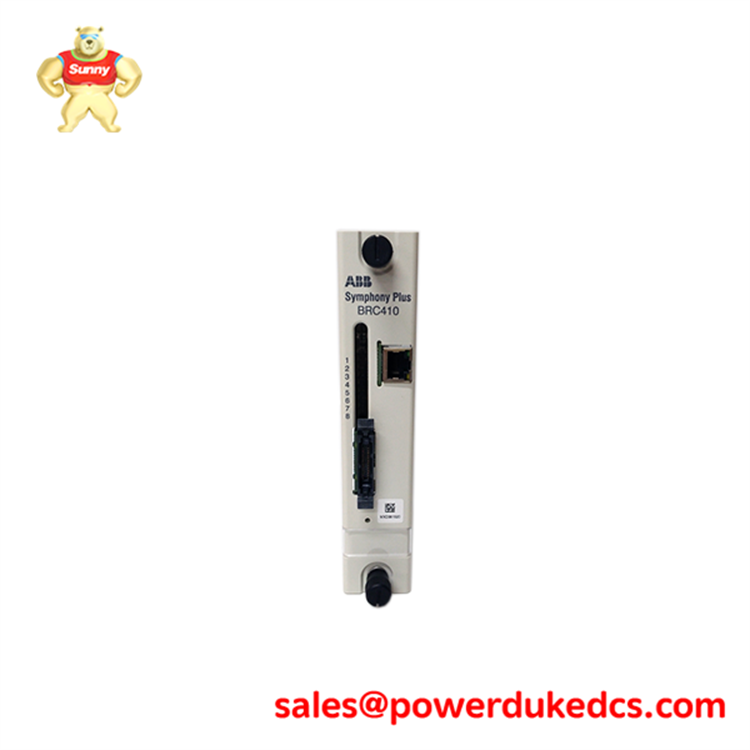

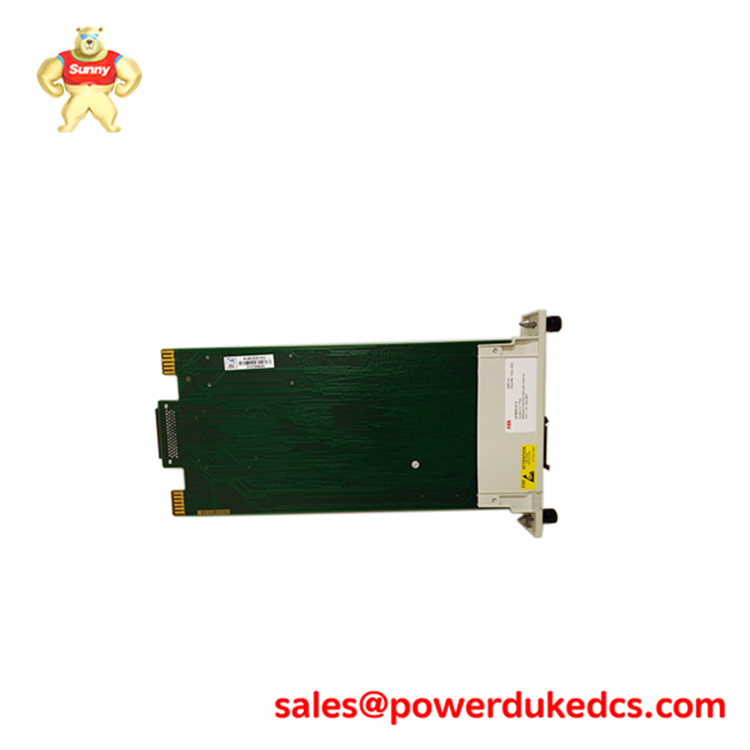

The ABB SPBRC410 is a high-performance controller module designed for seamless integration into ABB’s 800xA distributed control system. As the main processor unit, it delivers robust control and communication capabilities for complex process industries. Engineered for reliability, it supports CPU redundancy to ensure high availability and features EMC certification for operation in electrically noisy environments. With multiple built-in communication ports, the ABB SPBRC410 serves as a central communication bridge between the control network, supervisory systems, and field devices.
Parameter Values
-
Product Model: ABB SPBRC410
-
Brand: ABB
-
Warranty: One Year
-
Input Voltage: 24 V DC nominal (range: 18–32 V DC, typical)
-
Operating Temperature: 0°C to +55°C
-
Storage Temperature: -40°C to +70°C
-
Response Time: Millisecond-level task execution
-
Protection Class: IP20
-
Output Frequency: Not applicable
-
Rated Current Range: Max. 500 mA @ 24 V DC
-
Communication Interface: 2 × RJ45 Ethernet (CN1, CN2), 2 × RJ45 serial (COM3, COM4)
-
Supported Protocols: Ethernet-based 800xA system protocols, ModbusTCP (application-dependent)
-
Overload Capacity: Protected against I/O and network overcurrent/short-circuit
-
Dimensions: Approx. 100 mm × 75 mm × 120 mm
Application Scenarios
-
Process Control: SPBRC410 Serves as the core processor in 800xA systems for industries like oil & gas, petrochemicals, and power generation, managing critical loops and plant-wide automation.
-
Data Acquisition & Supervisory Control: Aggregates field data from remote I/O and subsystems, providing a unified interface for SCADA or MES platforms.
-
Infrastructure Systems: Ideal for water treatment, power distribution, and other utilities requiring a reliable, redundant control backbone with long-term stability.
