Description

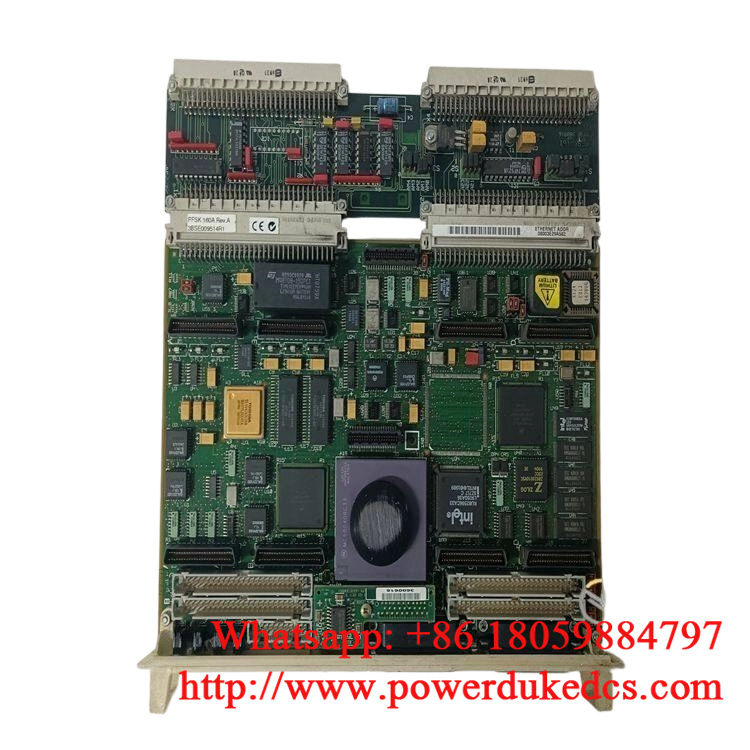

The PFSK160A 3BSE009514R1 is a digital output relay module manufactured by ABB, mainly used in industrial automation control systems to realize the output and control of digital signals. The following is a detailed description of the module:
Model: PFSK160A 3BSE009514R1
Output voltage: 5VDC
Output current: Maximum 10A
Efficiency: Greater than 90%
CPU: 32-bit RISC processor
Operating temperature: -20°C to +50°C
Storage temperature: -40°C to +70°C
Environmental humidity: 5% to 95% relative humidity (no condensation)
Dimensions: 170mm x 105mm x 32mm
Weight: Approximately 120g
Processor: Optional 1.1GHz, 1.4GHz, or 1.8GHz Intel Pentium M processor with 2MB L2 cache (1.4GHz and 1.8GHz models) or 1MB L2 cache (1.1GHz model).
Memory: The system adopts a 400MHz front-side bus and DDR SDRAM memory architecture, supporting a maximum of 1.5GB of ECC memory.
Storage: Supports connection of a 2GB CompactFlash storage device via IDE interface, which can be configured as the system boot device through BIOS settings.
Interfaces: Provides abundant interface resources, including dual Gigabit Ethernet controllers, independent 10/100Mbps Ethernet ports, four 16550-compatible UART serial ports, and four USB 2.0 ports.
III. Application Scenarios The PFSK160A 3BSE009514R1 digital output relay module is widely used in various industrial automation control systems, such as manufacturing, power, chemical, and water treatment industries. It can be used with PLC, DCS, and other systems to achieve data acquisition, control, and monitoring functions.
