Description
Product Overview

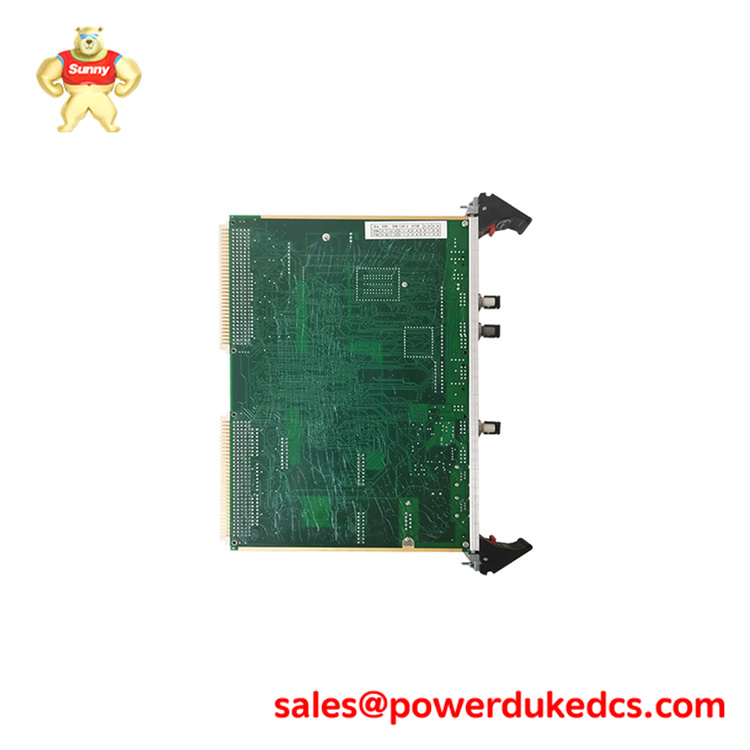

ABB IBA 940143201 is a high-precision analog input module engineered for industrial automation and distributed control systems (DCS). Designed to handle diverse sensor signals with exceptional accuracy, this module excels in harsh environments requiring reliable signal acquisition and processing. The ABB IBA 940143201 supports seamless integration with ABB DCS platforms like Advant and AC 800M, delivering robust performance across extreme temperature ranges and electrically noisy conditions. Its rugged construction ensures durability in petrochemical, power generation, and manufacturing applications. Backed by a one-year warranty, it combines technical sophistication with industrial-grade reliability.
Parameter Values
- Product Model: ABB IBA 940143201
- Brand: ABB
- Warranty: One Year
- Input Voltage: 220V AC
- Output Frequency: 30kHz ±2% (typical)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -50°C to +100°C
- Response Time: ≤5ms
- Protection Class: IP65 (rugged enclosure)
- Accuracy Class: ±0.2% (analog inputs)
- Communication Interface: Dual Ethernet (10/100 Mbps), Serial RS-485, Profibus, CAN
- Supported Protocols: Modbus TCP, Profinet, EtherNet/IP, IEC 61000-6-4 EMC
- Overload Capacity: 120% rated current for 2 minutes
- Dimensions: 150mm x 100mm x 50mm
- Weight: 2.3kg (net)
- Relative Humidity: 5% to 95% (non-condensing)
Key Functions
- High-Precision Signal Acquisition: Processes analog signals from temperature, pressure, and flow sensors with ±0.2% accuracy for precise process control.
- Multi-Protocol Communication: Supports Ethernet, serial, and fieldbus protocols for flexible integration with diverse control systems.
- Wide-Temperature Operation: Maintains stable performance from -40°C to +85°C, ideal for outdoor or unconditioned industrial environments.
- Redundant Design: Dual communication interfaces enable automatic failover, ensuring uninterrupted data flow in critical systems.
- Rugged Durability: IP65-rated enclosure withstands dust, moisture, and vibration in harsh manufacturing and energy sectors.
Application Scenarios
- Process Control: Acquiring signals from distillation columns, reactor feed systems, and boiler controls in oil refineries, chemical plants, and power stations.
- Data Acquisition: Monitoring paper stock consistency in pulp mills, dryer temperatures in textile facilities, and motor load conditions in discrete manufacturing.
- Critical Infrastructure: Providing reliable signal processing for SCADA systems, emergency lighting, and telemetry in electrical substations and railway signaling.
- Harsh Environments: Withstanding vibration, dust, and temperature fluctuations in mining, marine, and offshore platform applications.
