Description
Product Overview

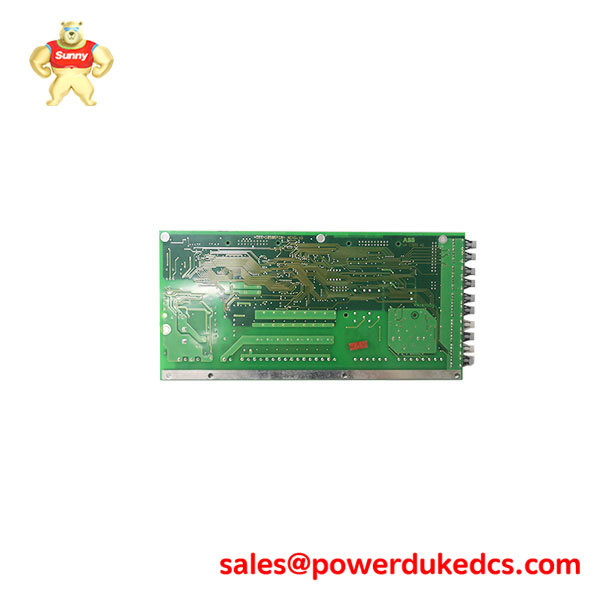

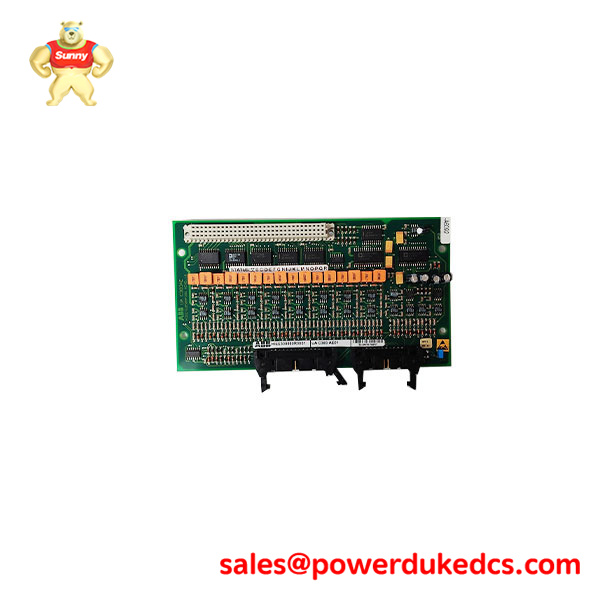

The ABB P3ECa HENF315309R2 is a high-performance programmable logic controller (PLC) module engineered for demanding process and factory automation applications. As a core processing unit, it executes control logic, manages I/O operations, and coordinates communication across distributed control architectures. Designed for seamless integration, it supports connection to ABB’s S800 I/O and System 800xA platforms, providing a scalable and reliable automation backbone for critical processes.
Parameter Values
-
Product Model: ABB P3ECa HENF315309R2
-
Brand: ABB
-
Warranty: One Year
-
Input Voltage: 24 V DC ±20%
-
Power Consumption: < 10 W
-
Operating Temperature: -20°C to +60°C
-
Storage Temperature: -40°C to +85°C
-
Relative Humidity: 0–95% non-condensing
-
Protection Class: IP20 (front panel)
-
Communication Interfaces: 2 × Ethernet (10/100 Mbps), 2 × RS-485, 1 × Profibus DP
-
Supported Protocols: Modbus TCP/IP, Ethernet/IP, Profibus DP, DNP3
-
I/O Capacity: Up to 1024 digital/analog I/O points (via S800 I/O modules)
-
Signal Isolation: 2500 V DC galvanic isolation
-
Processor: Multi-core CPU, approx. 1.2 GHz
-
Memory: 2 GB RAM, 8 GB Flash
-
Mounting: 35 mm DIN rail
-
Dimensions: 120 mm (W) × 150 mm (H) × 80 mm (D)
-
Weight: Approx. 0.9 kg
-
Certifications: CE, UL 508, IEC 61131-2 (EMC)
Application Scenarios
-
Power Generation: P3ECa HENF315309R2 Manages turbine control, boiler feedwater, and balance-of-plant equipment in thermal and combined-cycle power plants.
-
Oil & Gas: Provides precise control for compressor stations, wellhead pressure regulation, and pipeline monitoring in onshore and offshore facilities.
-
Manufacturing & Robotics: Coordinates conveyor systems, robotic arms, and quality inspection equipment on automotive and electronics production lines.
-
Water & Wastewater: Automates chemical dosing, pump control, and flow regulation to ensure compliance with environmental standards.
