Description
roduct Overview

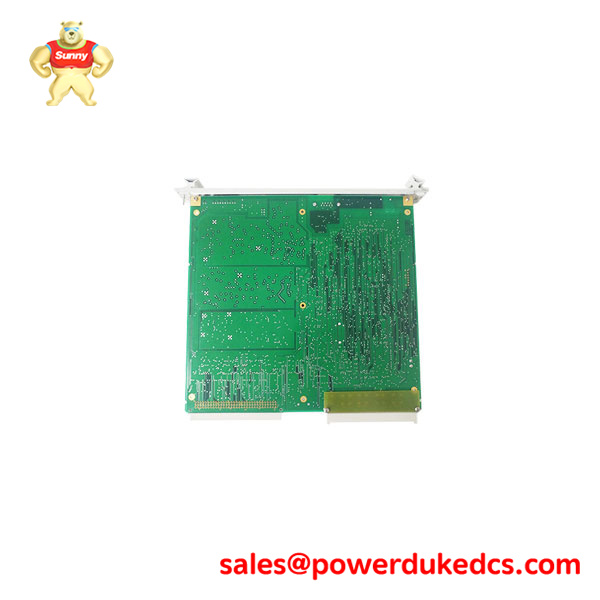

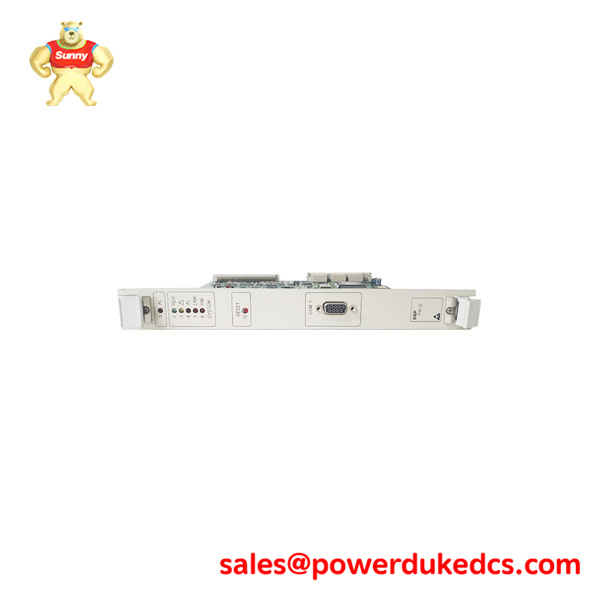

The ABB P7LA HNEF105323R0002 is an industrial-grade communication and I/O expansion module designed to provide reliable field signal interfacing and network connectivity for PLC and DCS automation systems. It functions as a distributed I/O or communication partner, enabling seamless integration of sensors, actuators, and control networks into a unified system architecture. Built for demanding process industries, the ABB P7LA HNEF105323R0002 ensures high noise immunity, stable data transmission, and flexible deployment in complex plant environments.
Parameter Values
-
Product Model: P7LA HNEF105323R0002
-
Brand: ABB
-
Warranty: One Year
-
Input Voltage: 24 V DC nominal (range: 18–32 V DC)
-
Power Consumption: Max. 5 W
-
Communication Interface: 1 × Ethernet (RJ45), 1 × RS-485 (isolated)
-
Supported Protocols: TCP/IP, Modbus TCP, Modbus RTU
-
Data Rate: 10/100 Mbps (Ethernet)
-
Input/Output: Configurable digital I/O (exact count per variant)
-
Signal Isolation: 1500 V DC (I/O to logic)
-
Operating Temperature: –20°C to +60°C
-
Storage Temperature: –40°C to +85°C
-
Relative Humidity: 5–95% non-condensing
-
Protection Class: IP20 (panel / DIN-rail mounting)
-
Mounting: 35 mm DIN rail or panel mount
-
Dimensions: Approx. 90 mm × 80 mm × 24 mm (W×H×D)
-
Weight: Approx. 0.2 kg
Application Scenarios
-
Process Control: P7LA HNEF105323R0002 Connects remote I/O points in oil & gas, chemical, and power plants, enabling real-time monitoring and control of field devices.
-
Factory Automation: Used in conveyor lines, packaging machines, and material handling systems to expand I/O and integrate with plant-wide Ethernet networks.
-
Building & Infrastructure: Suitable for intelligent building management systems (BMS) and infrastructure projects requiring reliable field communication and signal distribution.
