Description
Product Overview

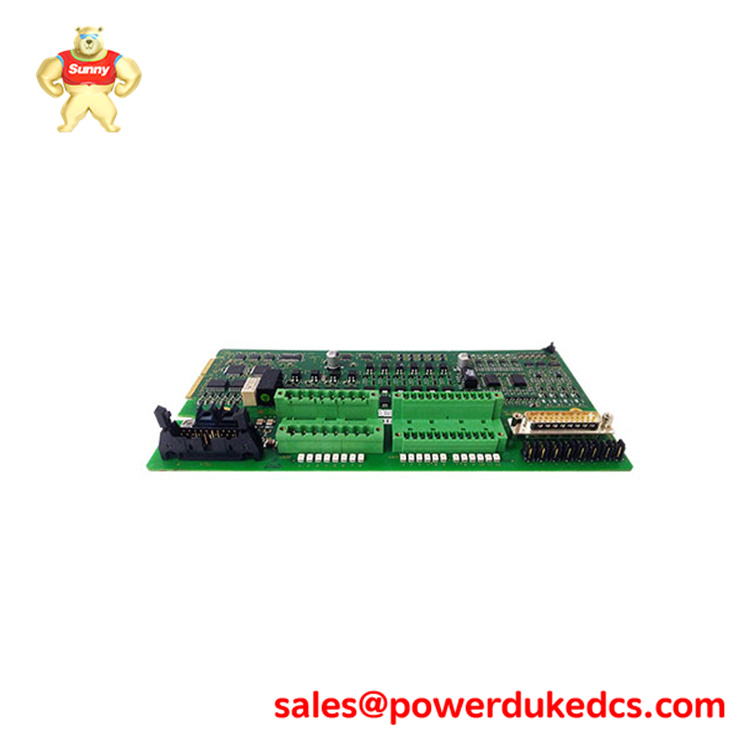

The ABB HIES308461R is a high-performance Intelligent Electrical Actuator Controller module designed for integration within ABB’s Symphony™ DCS or industrial control systems. This specialized unit serves as the intelligent interface between a distributed control system and electric actuators, providing precise positioning, torque control, and comprehensive diagnostic feedback for critical valve and damper applications. The ABB HIES308461R module facilitates advanced control strategies by converting standard control signals into commands for the actuator motor, while simultaneously monitoring position, torque, and status. Engineered for reliability in harsh environments, it is a key component for automating process valves in industries where precise flow control and operational safety are paramount, ensuring seamless integration and enhanced loop performance.
Parameter Values
- Product Model: ABB HIES308461R
- Brand: ABB
- Warranty: One Year
- Supply Voltage: 24 VDC (±10%)
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Control Signal Input: 4-20 mA DC, 0-10 V DC, or digital (Hart protocol optional)
- Position Feedback Output: 4-20 mA DC (isolated), with ≤ 0.5% full-scale accuracy
- Output Contacts (Auxiliary): SPDT relay, 5 A @ 250 VAC (for status/alarm)
- Motor Output: Three-phase or single-phase, up to 5 A (actuator dependent)
- Protection Class: IP54 (enclosure dependent)
- Communication Interface: Optional RS-485/modbus module
- Positioning Accuracy: ±0.5% of full stroke
- Deadband Adjustment: 0.1% to 5.0% user-selectable
- Torque Range Setting: Adjustable via DIP switches or software
- Dimensions: Standard DIN rail mount module, approx. 150mm x 80mm x 60mm (varies).
Key Functions
- Precision Positioning: Receives analog or digital control signals and drives the actuator motor to achieve and maintain the exact required valve position with high repeatability.
- Torque Monitoring & Control: Continuously monitors actuator motor torque to detect seat contact (for valves) or obstructions, providing torque cut-off and alarm signaling to prevent mechanical damage.
Application Scenarios
Process Valve Control: Automating critical control valves and on/off block valves in oil & gas pipelines, refinery process units, and chemical plant reactors for precise flow regulation.
Power Plant Systems: Controlling feedwater valves, turbine bypass valves, and combustion air dampers in thermal power stations for efficient and safe boiler operation.
Water & Wastewater Management: Operating large butterfly valves, gate valves, and penstocks in water treatment plants and distribution networks for level and pressure control.
HVAC in Critical Facilities: Managing high-capacity chilled water valves and air dampers in data centers or pharmaceutical facilities to maintain strict environmental conditions.
