Product Overview

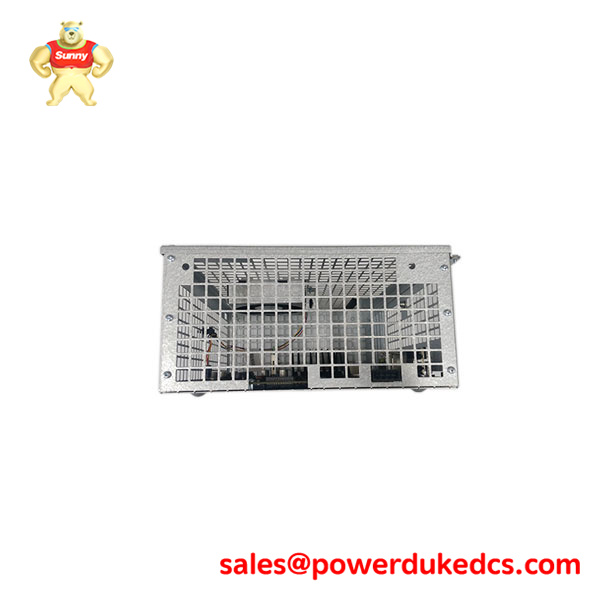

The ABB DSQC313 is a robust and versatile 16-Channel Digital Input Module designed specifically for integration within the ABB S4C and IRC5 robot controller systems. This module serves as a dedicated interface for acquiring digital status signals from a wide array of field devices in an industrial automation cell. Its primary function is to reliably read the ON/OFF state of sensors, switches, and other binary devices, providing critical real-time data to the robot’s control system for decision-making and sequence control.
Engineered to perform reliably in the electrically noisy environments typical of robotic workcells, the DSQC313 offers high-density input capability in a compact form factor. It features configurable input types to accommodate both sinking (NPN) and sourcing (PNP) sensor technologies, ensuring compatibility with a broad range of industrial equipment.
Parameter Values
- Product Model: DSQC313
- Brand: ABB
- Warranty: One Year
- I/O Type: 16 Digital Inputs
- Input Voltage Range: 24 VDC (10-30 VDC)
- Input Type: Configurable as Sinking (NPN) or Sourcing (PNP)
- Input Current: Typically 6 mA @ 24 VDC
- “ON” State Voltage Level: ≥ 15 VDC
- “OFF” State Voltage Level: ≤ 5 VDC
- Response Time: < 1.5 ms
- Isolation Voltage: 500 VAC (channel to channel and channel to bus)
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +85°C
- Connection: Via removable screw terminal block
- Diagnostic Indicators: Green LED per channel for signal status
- Compatibility: ABB S4Cplus, IRC5 controllers (with appropriate DSQC base unit)
Application Scenarios
Assembly & Machine Tending: Reading part presence sensors in fixtures, confirming clamp closed/open status, and receiving cycle-start signals from CNC machines or presses.
Material Handling Systems: Monitoring photo-eye sensors on conveyors, receiving signals from barcode readers, and confirming pallet presence at pick/place stations.
Safety & Cell Management: Interfacing with safety door switches, light curtain outputs, and emergency stop reset signals to integrate the robot into the overall cell safety system.
