Description
1. Product Title

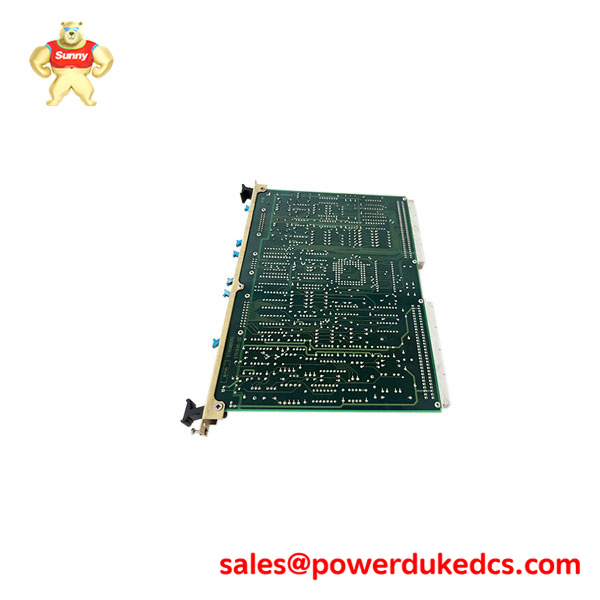

ABB 086329-004 – Drive Control Interface Board (Revision 004)
2. Product Overview
The 086329-004 is a sophisticated control interface circuit board designed for ABB’s high-power industrial drive systems and power conversion units. As a later revision of this critical hardware series, it serves as the central hub for distributing gate-firing pulses and processing feedback signals between the drive’s control logic and the power semiconductor stage (IGBTs/Thyristors).
In heavy-duty industrial applications, the 086329-004 solves the challenge of maintaining precise motor synchronization in high-interference environments. It acts as a buffer and translator for low-voltage control signals, ensuring they reach the power stage with microsecond accuracy. This revision often includes optimized circuit traces and updated component specifications intended to improve thermal management and signal-to-noise ratios compared to earlier versions, making it essential for the reliability of large-scale motor control architectures.
3. Technical Specifications
- Brand: ABB
- Model: 086329-004
- Warranty: One Year
- Condition: 100% New & Original
- Revision: 004
- Application: High-power Variable Frequency Drives (VFD) and DC Converters
- Signal Support: PWM signal distribution and analog/digital feedback integration
- Coating: Industrial conformal coating for humidity and dust resistance
- Connector Type: Multi-pin ribbon cable headers and high-speed data bus connectors
- Operating Temp: -10°C to +60°C
4. Key Features & Benefits
- Advanced EMI Shielding: The ABB 086329-004 is engineered to filter out electromagnetic noise generated by high-frequency switching, protecting the integrity of the drive’s control loops.
- Revision 004 Enhancements: Features updated component tolerances that provide better stability under fluctuating thermal loads, reducing the risk of intermittent drive faults.
- Deterministic Signal Delivery: Ensures that gate-firing commands are perfectly synchronized, which is critical for the implementation of Direct Torque Control (DTC) and vector control modes.
- Simplified Diagnostics: Designed with specific test points and status pathways that allow technicians to quickly verify signal presence during system commissioning or troubleshooting.
5. Application Scenarios
- Metal Rolling Mills: Used in large-scale multidrive systems to ensure precise speed matching and tension control during high-speed metal processing.
- Marine Propulsion Systems: Deployed in the power modules of cruise ships and cargo vessels where the ABB 086329-004 manages the high-current switching for propulsion motors.
- Oil & Gas Drilling: Integrated into top-drive and mud-pump control systems that require ruggedized electronics to handle the high vibration and electrical stress of drilling operations.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the ABB 086329-004 ?
- A: It is an interface board that coordinates the communication and signal distribution between the drive’s main processor and the power switching components.
- Q: Can the ABB 086329-004 replace an older -003 version?
- A: In many ABB drive families, the -004 is a backward-compatible upgrade for the -003; however, you should always verify the specific drive firmware requirements before installation.
