Description
1. Unboxing & Physical Snapshot

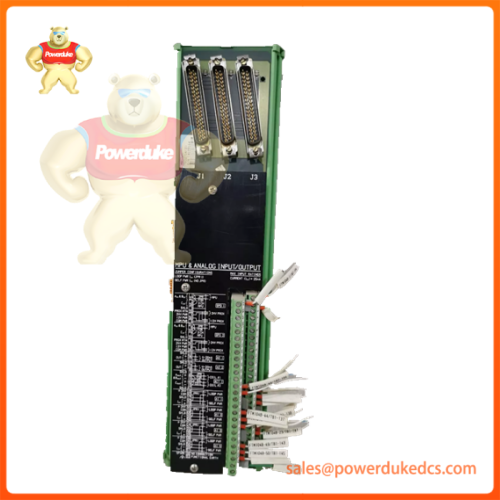

- Model & Brand: Woodward — 5501-365 Rev C
- Physical Dimensions: Approximately 100 mm x 50 mm x 30 mm (modular card layout).
- Estimated Shipping Weight: 0.6 kg (including anti-static packaging and protection inserts).
- What’s in the Box: 5501-365 Rev C module unit, factory inspection report slip, moisture-barrier anti-static envelope (note: rack backplanes and external terminal breakout boards must be procured separately).
2. Product Introduction
Architectural integration inside primary turbine control racks dictates the physical placement of this electronic card. Operating as an analog input/output module, the hardware slots directly into modular backplanes, routing precise control signals between heavy industrial actuators and central processing units (—which is vital for closed-loop turbine speed regulation).
Internal signal conditioning circuitry transforms low-level sensor readings into stable voltage loops. Plant operators rely on this exact revision level to maintain precise mechanical feedback within power generation and gas compression trains without unexpected signal drift.
3. Core Technical Specifications
| Parameter | Value |
| Input Voltage | 24 VDC nominal power supply |
| Output Voltage Range | 0 to 10 VDC analog output |
| Current Rating | 5 A maximum operational draw |
| Communication Interface | RS-485 serial data link |
| Operating Temperature | -10^\circC to +60^\circC |
| Storage Temperature | -40^\circC to +85^\circC |
| Enclosure Type | Open-board modular card format with gold-plated contacts |
| Revision Level | Rev C hardware configuration |
4. Global Compliance & Industry Certifications
Auditors require strict proof of compliance when inspecting critical power generation assets.
- Certifications: CE Mark, UL/cUL listed industrial control equipment, and standard RoHS compliance directives.
- Safety Relevance: The UL industrial control rating ensures that internal component failure or thermal spikes will not trigger electrical fires inside enclosed turbine control cabinets.
- Audit Note: Verify specific lot approvals against regional electrical code standards before plant commissioning.
5. Long-Term Storage & Asset Preservation Guide
Spare electronic cards stored in warehouse bays suffer from component degradation over time. Protect your asset inventory by following these procedures:
- Store cards in climate-controlled areas where temperatures stay between -20^\circC and +55^\circC and relative humidity remains under 50% to prevent oxidation on the gold-plated edge fingers.
- Leave the unit inside its original factory-sealed anti-static shielding bag with integrated desiccant packs until the exact maintenance outage window.
- Inspect the conformal-coated printed circuit board annually for dust accumulation or trace corrosion, brushing surfaces gently with clean, dry compressed air if necessary.
6. Physical Installation Prerequisites
Proper physical alignment inside the card rack prevents backplane pin damage and signal interference.
- Clearance Space: Ensure unobstructed airflow channels above and below the card slot to facilitate passive convection cooling across the circuit traces.
- Grounding Requirements: Fasten the rack chassis securely to earth ground using low-impedance copper bus bars to eliminate electrical noise interference on the analog loops.
- Insertion Protocol: Align card edges carefully with the backplane guide slots, pushing firmly until the retaining latches click into place.
7. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What Harmonized System (HS) Tariff Code applies to this Woodward module for global customs processing?
A: Industrial electronic regulator components typically classify under HS code 8538.90.8180 (Parts suitable for use solely or principally with the apparatus of heading 8537). Confirm exact codes with your freight forwarder.
Q: Does this Rev C unit require factory firmware flashing prior to installation?
A: No, basic operational parameters are handled via onboard hardware configurations, though system-level calibration must match the specific turbine application during startup.
Q: What is the Country of Origin (COO) for regulatory documentation?
A: This hardware is manufactured in the United States, requiring formal documentation on commercial shipping invoices to satisfy export regulations.
Q: Is specialized transit insurance recommended for international delivery?
A: Yes, because precision surface-mounted electrical components are sensitive to high-impact drop shocks, comprehensive freight insurance is strongly advised.
