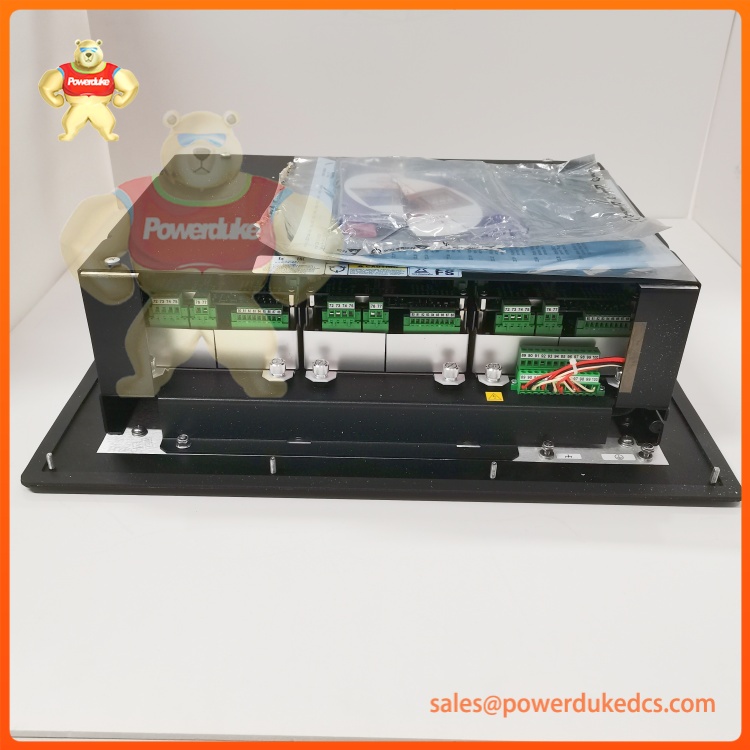

WOODWARD 8237-1600|High-performance industrial control module

Technical Specifications

• Product Model: WOODWARD 8237-1600

• Brand: Woodward

• Warranty: One Year

• Input Voltage: Dual power inputs supporting high-voltage 88–264 VAC (47–63 Hz) or 90–150 VDC supply options

• Operating Temperature: -20°C to +60°C (up to 95% non-condensing humidity)

• Storage Temperature: -20°C to +65°C

• Response Time: High-speed turbine overspeed detection with millisecond-level trip response

• Protection Class: IP56 enclosure for dust and water resistance when properly installed

• Accuracy Class: High-precision turbine speed monitoring with multi-channel verification

• Output Frequency: Speed signal processing range approximately 0.5 Hz to 32 kHz from MPU sensors

• Rated Current Range: Designed for industrial turbine protection circuits

• Communication Interface: RS-485 serial communication and Ethernet interfaces

• Supported Protocols: Modbus RTU / Modbus TCP for integration with control systems

• Overload Capacity: Triple modular redundancy (TMR) architecture with 2-out-of-3 voting logic

• Dimensions: Approx. 330 × 445 × 159 mm (13 × 17.5 × 6.25 in)

• Speed Sensor Inputs: 3 magnetic pickup (MPU) inputs

• Analog Outputs: 4–20 mA speed signal output for monitoring systems

Product Overview

The WOODWARD 8237-1600 is a configurable overspeed protection system from the Woodward ProTech-GII series, designed to safeguard industrial turbines against dangerous overspeed conditions. In turbine applications such as steam, gas, and hydro power generation, uncontrolled acceleration can cause catastrophic mechanical damage. This protection system continuously monitors turbine speed signals and triggers immediate shutdown actions when abnormal speed conditions are detected.

The device uses three independent speed sensing channels connected to magnetic pickup sensors. By applying a 2-out-of-3 voting logic architecture, the system validates speed data and ensures accurate fault detection while minimizing false trips. This redundancy is essential for mission-critical rotating equipment where continuous operation and safety are equally important.

Designed for integration into turbine control cabinets, the system features a rugged enclosure and conformal-coated electronics that resist corrosive gases such as hydrogen sulfide and sulfur dioxide. Communication interfaces allow the module to transmit speed data and diagnostic information to plant control systems, enabling operators to monitor turbine performance and perform predictive maintenance.

Key Functions

Triple-Redundant Overspeed Protection

The system monitors turbine speed using three independent MPU sensor channels. Its 2-out-of-3 voting logic ensures reliable overspeed detection while preventing unnecessary shutdowns caused by sensor faults.

High-Speed Trip Relay Output

When overspeed or rapid acceleration is detected, the controller activates redundant trip relays that immediately shut down the turbine. This rapid response prevents mechanical damage and protects connected equipment.

Integrated Diagnostics and Self-Testing

The module includes built-in test routines that periodically verify sensor operation, overspeed logic, and system health. Diagnostic logs and time-stamped events help engineers analyze turbine operating conditions and troubleshoot issues efficiently.

Industrial Network Communication

Through Modbus communication, the protection system can transmit speed data and status signals to DCS, SCADA, or PLC platforms. This capability allows centralized monitoring and integration with plant-wide automation systems.

Rugged Environmental Design

Conformal coating protects internal circuits from corrosive gases such as H₂S and SO₂. Combined with an IP56 enclosure, the device is suitable for harsh environments including refineries and power plants.

Application Scenarios

Gas Turbine Protection Systems

In gas turbine installations, overspeed protection is critical to prevent rotor damage and catastrophic failure. The protection system continuously monitors turbine shaft speed and activates shutdown procedures when limits are exceeded.

Steam Turbine Power Generation

Steam turbines in power plants operate under high mechanical stress. The protection module ensures safe operation by detecting overspeed events and triggering emergency shutdowns before mechanical limits are exceeded.

Hydro Turbine Control

Hydroelectric facilities require reliable turbine safety systems due to rapid load changes. The protection system detects abnormal acceleration and prevents runaway conditions.

Oil and Gas Compressor Drives

Many compressor stations use turbine-driven compressors. The protection module monitors shaft speed and provides fast protective trips, ensuring safe operation of high-value rotating equipment.
