Description
Technical Specifications
- Product Model: HCU3700/3703E
- Brand: TRICONEX
- Warranty: One Year
- Input Voltage: 24 VDC (system supplied)
- Operating Temperature: –20 °C to +60 °C
- Storage Temperature: –40 °C to +85 °C
- Response Time: ≤ 10 ms (signal processing typical)
- Protection Class: IP20
- Accuracy Class: Not applicable (communication and control module)
- Output Frequency: Not applicable
- Rated Current Range: 0.5 A per channel (maximum)
- Communication Interface: Tricon backplane interface
- Supported Protocols: Tricon proprietary communication protocols, standard fieldbus protocols
- Overload Capacity: Designed to withstand short-duration transients and fault conditions
- Dimensions: Approx. 233 × 30 × 115 mm (H × W × D)
Product Overview

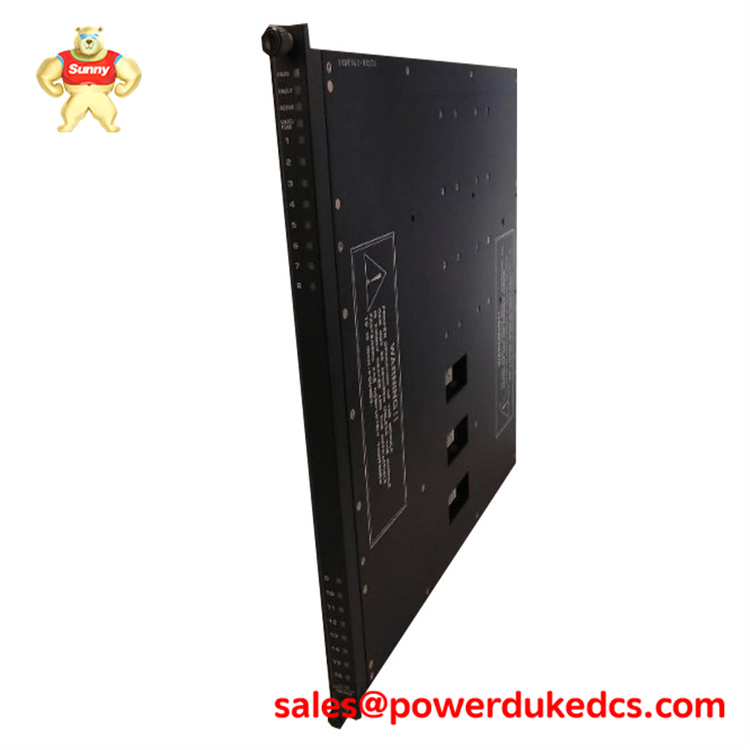

The TRICONEX HCU3700/3703E is an advanced human control unit module designed for integration within Tricon safety instrumented systems (SIS). This module serves as the primary interface between human operators and the Tricon safety controllers, allowing users to manage and monitor safety-critical processes in real-time. The HCU3700/3703E features robust data handling capabilities, offering reliable communication between the safety system and external control or monitoring units.
Through its versatile display and intuitive user interface, the HCU3700/3703E provides operators with a clear, actionable overview of system health, process conditions, and safety status. The module’s flexible communication protocols enable seamless integration with other Triconex components, as well as third-party systems, ensuring comprehensive situational awareness for industrial operators. Designed for demanding operational environments, the HCU3700/3703E is a reliable choice for controlling and monitoring systems that require stringent safety and reliability standards.
Key Functions
Operator Interface for Real-Time Monitoring
The HCU3700/3703E allows operators to monitor real-time data from safety systems, including alarms, status updates, and operational metrics, providing critical insights for informed decision-making in process control.
Multi-Protocol Communication Support
Supporting both proprietary Tricon communication and standard fieldbus protocols, the module ensures smooth integration into diverse industrial control environments and seamless data exchange between different systems.
Alarm and Event Management
With built-in capabilities for handling alarms and events, the module helps operators quickly identify and respond to abnormal situations, improving safety and reducing response times during emergencies.
Application Scenarios
Oil & Gas Process Control
The module is used in offshore and onshore facilities to provide operators with critical visibility into drilling, production, and refinery operations. Its real-time data and alarm handling ensure fast response times to critical safety situations.
Chemical Plant Safety Systems
In chemical processing, the HCU3700/3703E enables monitoring of hazardous materials and equipment, helping operators maintain safe working conditions and regulatory compliance.
Power Generation Control Systems
The module supports power plant operators by displaying turbine, boiler, and auxiliary equipment status, contributing to optimized safety and operational efficiency.
