Description

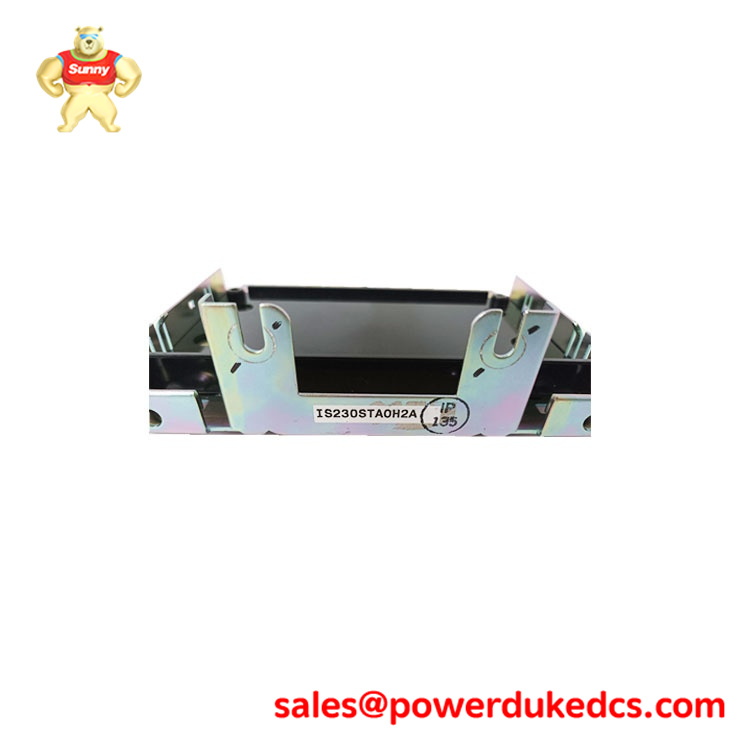

GE IS230STAOH2A – Analog Output Terminal Board
GE IS230STAOH2A is a high-density analog output terminal board for GE’s Mark VIe turbine control systems, providing field wiring interface for I/O packs like SNAOH2A. This module supports 16 channels of 4-20 mA outputs with isolated screw terminals, delivering precise actuator control for valves, dampers, and variable frequency drives in gas turbine applications. It addresses signal distribution challenges by offering transient protection, short-circuit detection, and compatibility with simplex or TMR configurations, ensuring reliable command execution under demanding electrical conditions. The GE IS230STAOH2A mounts on DIN rails with removable connectors for simplified maintenance in control cabinets.
Technical Specifications
- Brand: GE
- Model: IS230STAOH2A
- Warranty: One Year
- Condition: 100% New & Original
- Series: Mark VIe
- Channels: 16 analog outputs (4-20 mA)
- Output Current: 0-20 mA, max 24 mA
- Load Resistance: 0-800 Ω
- Power Supply: 24 VDC external
- Isolation: 250 VDC channel-to-channel
- Operating Temp: -20°C to +65°C
- Terminal Type: Screw clamp, 35 lb-in torque
- Mounting: DIN rail
Key Features & Benefits
- High-Density Termination: 16 isolated outputs in compact DIN format maximize I/O capacity while maintaining field wiring accessibility.
- Fault-Tolerant Design: Built-in current limiting and open-loop detection protect downstream actuators during cable faults or I/O pack failures.
- Redundancy Support: TMR-compatible wiring scheme enables voting between multiple packs for critical control loops.
Application Scenarios
- Fuel Control Valves: Distributes 4-20 mA commands for gas fuel admission and liquid fuel bypass positioning in combustion systems.
- IGV/Dampers: Drives inlet guide vane servos and exhaust damper actuators for turbine airflow optimization.
- Auxiliary Drives: Controls VFD speed references for cooling fans and lube oil pumps in balance-of-plant systems.
Frequently Asked Questions (FAQ)
- Q: What is the primary function of the GE IS230STAOH2A?
- A: It provides screw terminal interface for 16 analog output channels from Mark VIe I/O packs to field actuators.
- Q: Is GE IS230STAOH2A compatible with legacy systems?
- A: Yes, it supports standard Mark VIe SNAOH packs and 4-20 mA field wiring compatible with GE Speedtronic controls.
