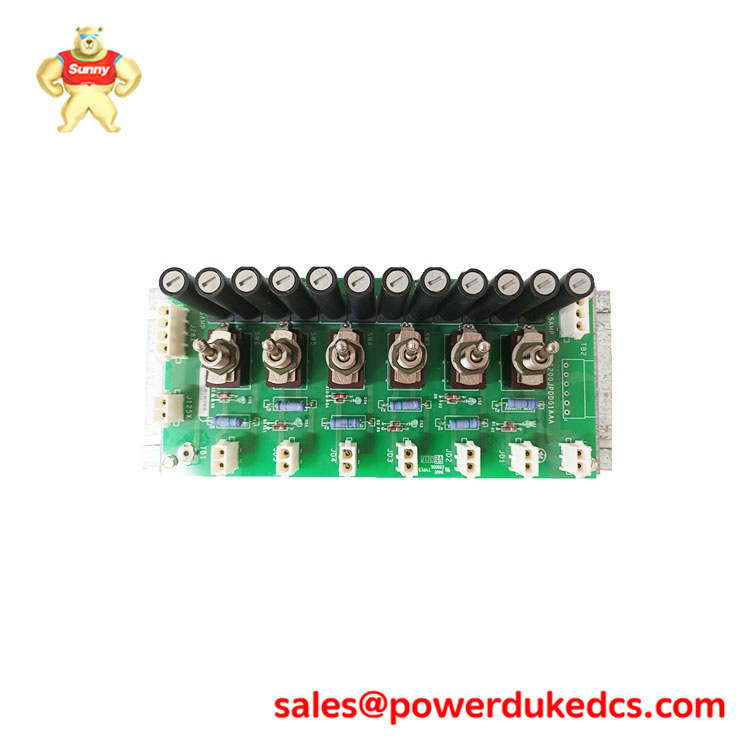

GE IS200JPDDG1AAA – Power Distribution Board
2. Product Overview
The IS200JPDDG1AAA is a core power distribution module utilized within the GE Mark VI Innovation Series and EX2100 excitation control systems. Its primary function is to distribute regulated DC power to various control boards, I/O packs, and cooling fans within the control cabinet. By acting as the central hub for power routing, the IS200JPDDG1AAA ensures that sensitive electronic components receive stable, fused voltage, protecting them from overcurrent conditions. It solves the industrial challenge of maintaining high system availability by providing a modular, easily maintainable power architecture that simplifies cable management and troubleshooting in complex automation environments.
3. Technical Specifications
- Brand: General Electric (GE)
- Model: IS200JPDDG1AAA
- Warranty: One Year
- Condition: 100% New & Original
- Series: Mark VI / Innovation Series
- Board Type: Power Distribution (JPDD)
- Input Voltage: Typically 24V DC or 125V DC (depending on system configuration)
- Outputs: Multiple fused DC distribution points for controllers and fans
- Fusing: Plug-in automotive-style or glass fuses for circuit protection
- Dimensions: 17.8 cm x 12.7 cm (Approx.)
- Mounting: DIN-rail or standoff mounting within the control cabinet
4. Key Features & Benefits
- Circuit Isolation: Features individual fuses for each output branch, ensuring that a fault in a single fan or I/O pack does not cause a total system shutdown.
- Diagnostic Feedback: The <span style=”color: blue;”>IS200JPDDG1AAA</span> is designed to provide status signals to the controller, allowing for real-time monitoring of fuse integrity and power rail health.
- High Reliability Terminations: Equipped with robust, vibration-resistant connectors that are essential for long-term stability in harsh industrial environments like turbine halls.
- Simplified Maintenance: The “AAA” version represents a standardized layout that allows for quick field replacement without the need for complex rewiring or configuration.
5. Application Scenarios
- Gas Turbine Control: Deployed in Mark VI turbine control panels to distribute power to the protection modules and secondary control hardware.
- Excitation Systems: Used in EX2100 cabinets to provide the necessary 24V DC logic power for the gate driver boards and cooling fan assemblies.
- Industrial Drive Systems: Utilized in large-scale GE Innovation Series drives to manage the power routing for auxiliary control circuits.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the <span style=”color: blue;”>IS200JPDDG1AAA</span>?
- A: It is a power distribution board that routes and protects DC power circuits for control hardware and cooling fans within a GE control cabinet.
- Q: Does the <span style=”color: blue;”>IS200JPDDG1AAA</span> include onboard fuses?
- A: Yes, it is equipped with several fuse holders to protect downstream devices from short circuits or overcurrent events.
