1. Product Title

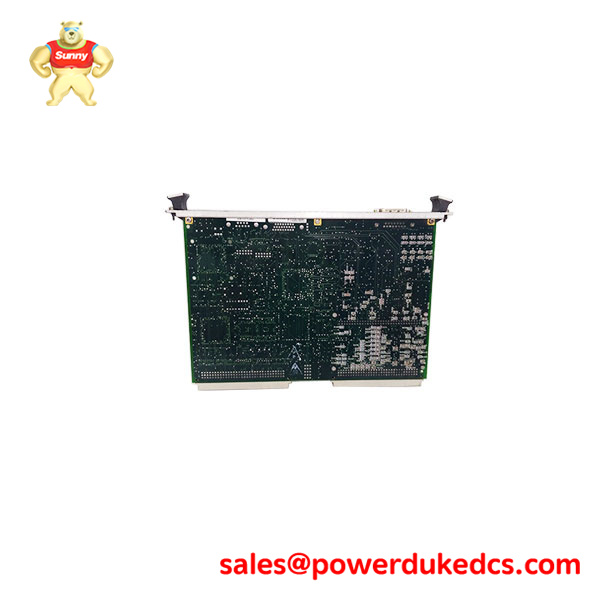

GE IS200VTCCH1CBB – Thermocouple Processor Board
2. Product Overview
The GE IS200VTCCH1CBB is a thermocouple input processor board from GE’s Mark VI turbine control system series. It accepts up to 24 thermocouple signals of types E, J, K, S, or T, performing cold junction compensation, linearization, and A/D conversion for precise temperature monitoring. This board addresses measurement accuracy challenges in turbine exhaust and metal temperature applications by filtering noise and providing high-resolution data to controllers. Paired with TBTC or DTTC terminal boards, the GE IS200VTCCH1CBB supports simplex and TMR redundancy, ensuring reliable thermal protection in gas and steam turbine environments.
3. Technical Specifications
- Brand: GE (General Electric)
- Model: IS200VTCCH1CBB
- Warranty: One Year
- Condition: 100% New & Original
- Channels: 24 thermocouple inputs
- Thermocouple Types: E, J, K, S, T; mV inputs
- Resolution: 16-bit A/D conversion
- Connectors: Two DCN connectors to terminal boards
- Span: -8 mV to +45 mV typical
- Operating Temp: 0°C to +45°C
- Power: +5 VDC, ±15 VDC from backplane
4. Key Features & Benefits
- Multi-Type Support: Configurable for common industrial thermocouples with automatic linearization, simplifying integration across turbine sections.
- Cold Junction Compensation: Onboard reference sensors ensure accurate absolute temperature readings regardless of ambient conditions.
- Diagnostic Monitoring: Detects open circuits, shorts, and out-of-range signals, enabling predictive maintenance for thermal protection systems.
5. Application Scenarios
- Gas Turbine Exhaust: Monitors thermocouple arrays for hot gas path temperatures and combustor health during full-load operation.
- Steam Turbine Metals: Tracks rotor and casing temperatures for thermal stress protection and startup permissives.
- Boiler Control: Interfaces superheater and reheater thermocouples for coordinated firing rate control.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the GE IS200VTCCH1CBB?
A: It processes 24 thermocouple inputs with linearization and compensation for Mark VI temperature monitoring applications. - Q: Is GE IS200VTCCH1CBB compatible with legacy systems?
A: Yes, it connects to TBTC terminal boards and integrates with Mark VI controllers via standard VME interfaces.
