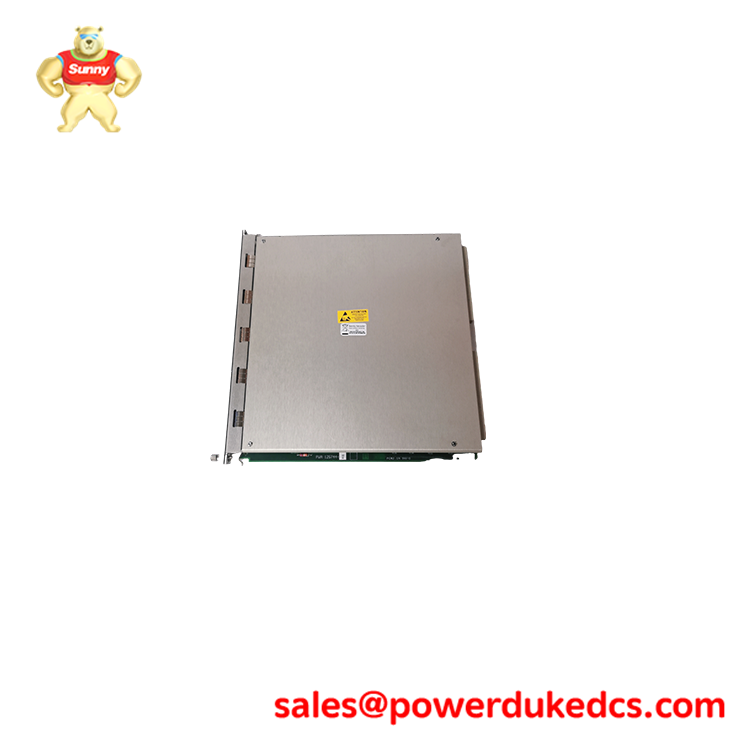

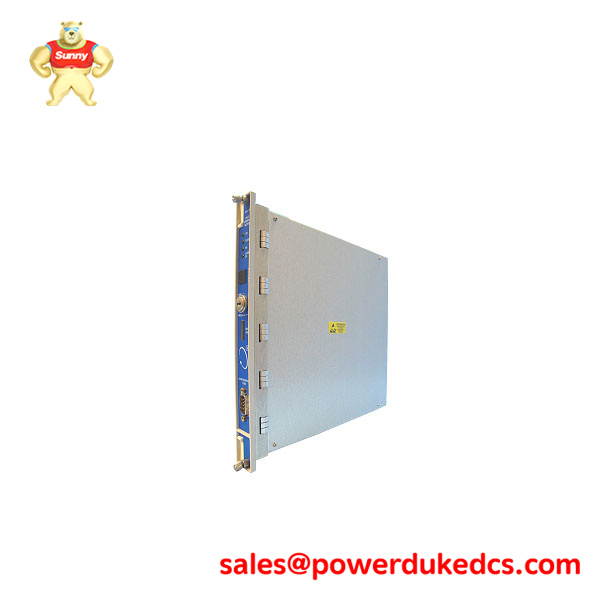

BENTLY 3500/20 125744-02 | -30 °C to +65 °C | Rack Interface Module (RIM)

Technical Specifications

• Product Model: BENTLY 3500/20 125744-02
• Brand: Bently Nevada
• Warranty: One Year
• Input Voltage: 18–32 VDC (nominal 24 VDC)
• Operating Temperature: -30 °C to +65 °C
• Storage Temperature: -40 °C to +85 °C
• Response Time: Real-time system communication (millisecond-level internal processing)
• Protection Class: IP20 (installed within 3500 rack enclosure)
• Accuracy Class: System-level accuracy dependent on connected monitoring modules
• Output Frequency: Not applicable (communication and control module)
• Rated Current Range: Approx. 500 mA at 24 VDC (rack dependent)
• Communication Interface: Ethernet, RS-232/RS-422
• Supported Protocols: Proprietary Bently Nevada 3500 communications, TCP/IP
• Overload Capacity: Designed for continuous operation under full rack load
• Dimensions: Standard 3500 rack module form factor

Product Overview

The BENTLY 3500/20 125744-02 is a Rack Interface Module (RIM) designed for use within the Bently Nevada 3500 Machinery Protection System. This module serves as the primary communication gateway between the 3500 rack and external configuration, monitoring, and diagnostic systems. It plays a central role in ensuring reliable data exchange, system configuration access, and health monitoring of all installed 3500 modules.

By acting as the rack’s supervisory interface, this automation solution allows maintenance teams and reliability engineers to retrieve real-time vibration and machinery condition data without interrupting operation. The module supports secure and stable communication for system setup, alarm management, and ongoing diagnostics, making it essential for mission-critical rotating equipment protection. Industries that rely on high-availability turbomachinery—such as power generation, oil and gas, and heavy manufacturing—benefit directly from its robust design and seamless integration. Its proven reliability ensures long-term system stability while simplifying troubleshooting and lifecycle maintenance within complex condition monitoring architectures.

Key Functions

Rack-Level Communication Management

This module coordinates all external communications between the 3500 rack and host systems. It ensures stable data transfer for configuration, diagnostics, and monitoring without impacting protection performance.

System Configuration and Diagnostics

The RIM enables engineers to configure modules, manage alarm parameters, and perform diagnostics from authorized workstations. This reduces commissioning time and simplifies ongoing system adjustments.

Real-Time Data Access

By providing continuous access to machinery condition data, the module supports predictive maintenance strategies. Operators can identify abnormal trends early and take corrective action before failures occur.

System Integrity Supervision

The interface monitors rack health and communication status, helping maintenance teams quickly identify wiring, power, or module-related issues within the protection system.

Application Scenarios

• Power Generation Turbines:
  In steam and gas turbine installations, the module provides continuous communication between vibration monitoring modules and plant control or maintenance systems, supporting safe and reliable operation.
• Oil & Gas Compressors:
  For critical compressor trains, it enables real-time condition monitoring data retrieval, helping prevent unplanned shutdowns and costly equipment damage.
• Petrochemical Rotating Equipment:
  The module supports centralized diagnostics for pumps and motors operating in harsh environments, improving maintenance planning and equipment availability.
• Heavy Industrial Machinery Protection Systems:
  Integrated within large-scale machinery protection racks, it allows reliability teams to manage multiple monitoring channels from a single, secure interface.
