Description
Product Overview

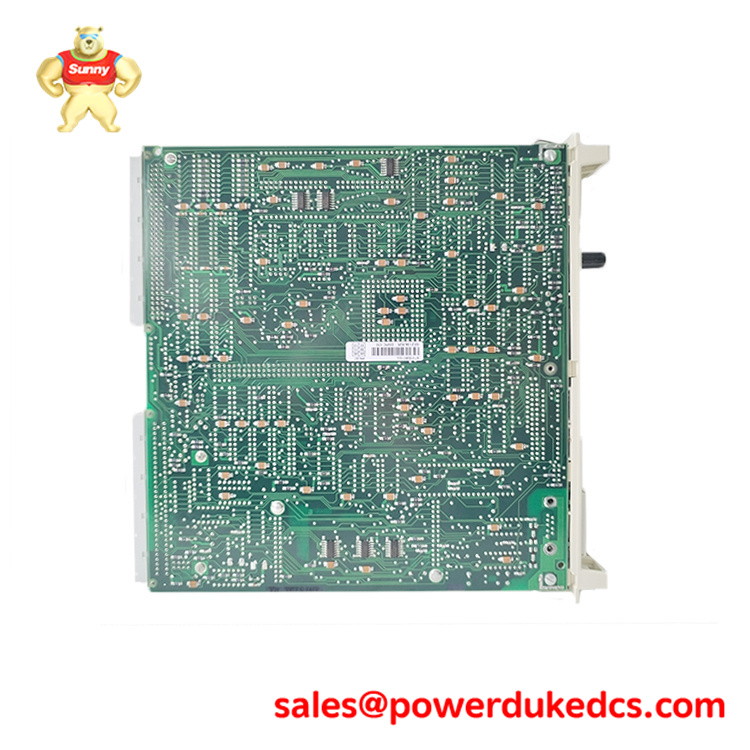

ABB DSPC172 and DSPC172H are high-performance master CPU processor modules designed for ABB’s Advant OCS and MasterPiece 200/200/1 distributed control systems (DCS). They serve as the core processing units, executing real-time control logic, handling data communication, and managing system operations in industrial automation environments. DSPC172H is typically an enhanced or variant version of DSPC172, offering improved performance, redundancy support, or additional features for critical applications.
Parameter Values
Paramete： DSPC172 Specification
Product Model： DSPC172 (57310001-ML)
Brand： ABB
Product Type： Master CPU Processor
Series： Advant OCS / MasterPiece 200 Advant OCS
Processor： PowerPC 603e / Dual-core DSP
Clock Speed 180 MHz： Typically higher than
Memory RAM: 64 MB; Flash: 16 MB RAM: ≥64 MB;
Communication Interfaces： 2×Ethernet, 4×Serial (RS-232/485),
Same as DSPC172 + redundancy protocols
Input Voltage ：24 VDC (±10%)
Power Consumption： ~15 W
Operating Temperature： -25°C to 70°C
Storage Temperature ：-40°C to 85°C
Dimensions： ~160×160×120 mm
Weight： 0.915 kg ~1.1 kg
Protection Class： IP20
Paramete： DSPC172 Specification
Product Model： DSPC172 (57310001-ML)
Brand： ABB
Product Type： Master CPU Processor
Series： Advant OCS / MasterPiece 200 Advant OCS
Processor： PowerPC 603e / Dual-core DSP
Clock Speed 180 MHz： Typically higher than
Memory RAM: 64 MB; Flash: 16 MB RAM: ≥64 MB;
Communication Interfaces： 2×Ethernet, 4×Serial (RS-232/485),
Same as DSPC172 + redundancy protocols
Input Voltage ：24 VDC (±10%)
Power Consumption： ~15 W
Operating Temperature： -25°C to 70°C
Storage Temperature ：-40°C to 85°C
Dimensions： ~160×160×120 mm
Weight： 0.915 kg ~1.1 kg
Protection Class： IP20
Application Scenarios
- Power Generation: Core control unit in thermal, hydro, and nuclear power plants for turbine/generator control and process monitoring.
- Oil & Gas: Manages critical processes in refineries, pipelines, and offshore platforms, ensuring safe and efficient operation.
- Chemical & Petrochemical: Executes complex control logic for reactor, distillation, and storage systems.
- Metals & Mining: Controls smelting, rolling, and material handling processes in steel and non-ferrous metal plants.
- Water & Wastewater: Monitors and controls treatment processes, including pH adjustment, filtration, and sludge handling.
