Description
Product Overview

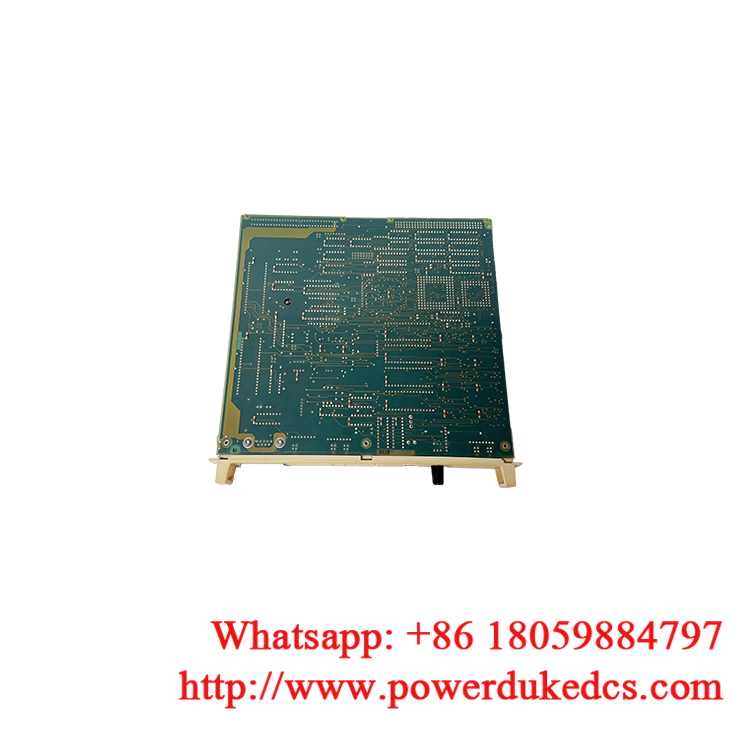

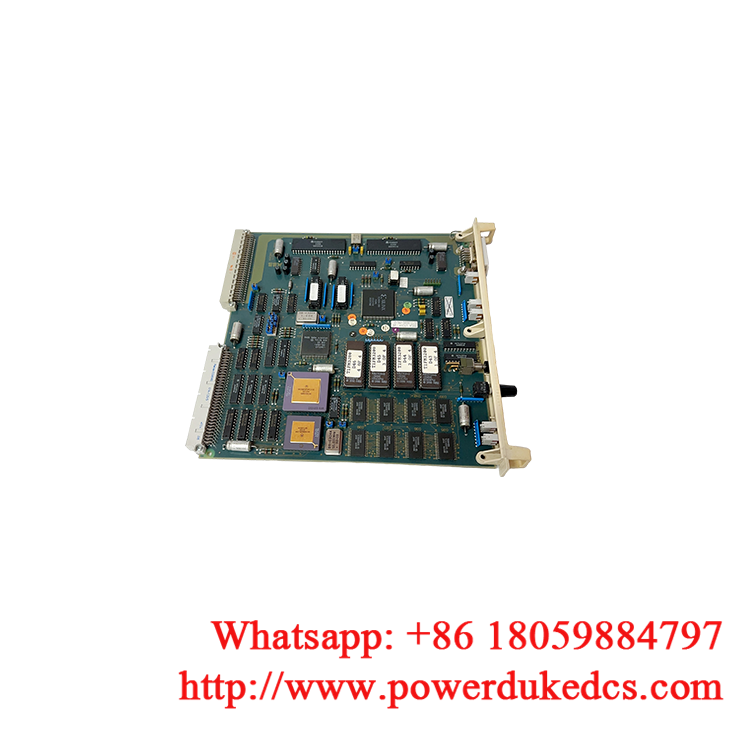

The ABB DSCA190V 57310001-PK is a high-integrity analog input module engineered for precision signal acquisition in ABB’s Advant OCS and S800 I/O systems. Designed to meet the stringent demands of industrial automation environments, this module provides reliable voltage input measurement essential for accurate monitoring and control of analog field devices. The ABB DSCA190V 57310001-PK is particularly suited for power plants, chemical processing, and manufacturing facilities that rely on stable and noise-resistant data acquisition.
This module offers 8 differential voltage inputs with high resolution and excellent common-mode rejection, ensuring minimal signal distortion even in electrically noisy environments. The ABB DSCA190V 57310001-PK supports configurable filtering and diagnostics, enabling enhanced signal integrity and easier maintenance. Its compact design and plug-in terminal base streamline installation and replacement procedures, reducing overall system downtime.
Technical Specifications
|
Parameter
|
Value
|
|---|---|
|
Product Model
|
ABB DSCA190V 57310001-PK
|
|
Manufacturer
|
ABB
|
|
Product Type
|
Analog Input Module
|
|
Input Type
|
Differential Voltage
|
|
Number of Channels
|
8
|
|
Input Range
|
±10 V, 0–10 V (software selectable)
|
|
Resolution
|
16-bit
|
|
Update Rate
|
Up to 100 Hz per channel
|
|
Isolation
|
Channel-to-channel and channel-to-ground
|
|
Power Consumption
|
3.0 W typical
|
|
Operating Temperature
|
-20°C to +60°C
|
|
Dimensions
|
45 x 75 x 105 mm
|
|
Mounting
|
S800 I/O rack compatible
|
|
Communication Protocol
|
ABB S800 I/O native bus
|
|
IP Rating
|
IP20
|
Key Features and Benefits
The ABB DSCA190V 57310001-PK excels in delivering precise and stable analog voltage measurements in complex industrial environments. Each of its eight differential input channels ensures high immunity to electrical interference through robust isolation and advanced filtering techniques. This makes the module especially valuable in large-scale plants where long cable runs and electromagnetic interference can degrade signal fidelity.
One of the standout technical advantages is its 16-bit resolution, allowing fine granularity in signal capture for improved control loop accuracy. The software-selectable input ranges accommodate a variety of transmitter outputs and sensor types, enhancing application flexibility. Furthermore, the module’s update rate of up to 100 Hz per channel supports near real-time process monitoring, crucial for fast-responding control strategies.
Please contact Sunny [email protected] for the best price.
