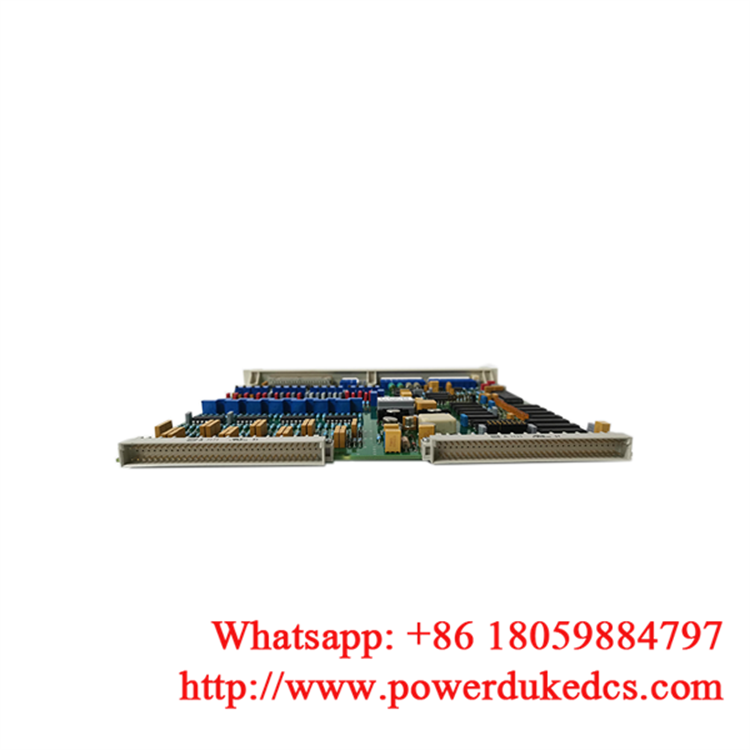

DSAI130A 3BSE018292R1 |  ±0.03% of full scale | high-precision analog input module

DSAI130A 3BSE018292R1 |  ±0.03% of full scale | high-precision analog input module

  • Product Model: DSAI130A 3BSE018292R1

  • Brand: ABB

  • Warranty: One Year

  • Module Supply Voltage: 24 VDC

  • Operating Temperature: 0°C to +60°C

  • Inventory: Spot/Futures
    Delivery time: 3-5 days
    HS code: 9032900001.00
Get a Quote
Category:

Description

Product Overview

The ABB DSAI130A 3BSE018292R1 is an industrial-grade, high-precision analog input module engineered for ABB’s Symphony™ Plus Distributed Control System (DCS), compatible with Harmony Series controllers and I/O racks. Designed for reliable data acquisition in demanding process environments, this module interfaces with standard field instrumentation such as pressure transmitters, temperature transmitters, flow meters, and level sensors. The DSAI130A 3BSE018292R1 features configurable per-channel signal conditioning for a variety of current and voltage inputs, providing exceptional measurement accuracy and stability. Its robust design incorporates comprehensive galvanic isolation to protect the control system from field-side electrical noise and transients, ensuring signal integrity. This module is a critical component for applications requiring continuous, high-fidelity monitoring and forms the reliable sensory foundation for advanced process control strategies.

Parameter Values

  • Product Model: DSAI130A 3BSE018292R1

  • Brand: ABB

  • Warranty: One Year

  • Module Supply Voltage: 24 VDC (via system backplane)

  • Operating Temperature: 0°C to +60°C

  • Storage Temperature: -40°C to +85°C

  • Input Type: 8 channels, differential, configurable per point

  • Signal Ranges: 0-20 mA, 4-20 mA (with wire break detection), ±20 mA; 0-10 V, ±10 V; ±100 mV

  • Resolution: 16-bit

  • Conversion Time: 5 ms per channel (typical)

  • Accuracy (at 25°C): ±0.03% of full scale

  • Common-Mode Rejection: > 120 dB at 50/60 Hz

  • Channel-to-Channel Isolation: 500 VAC

  • Communication Interface: Harmony I/O Rack bus

Application Scenarios

Precision Batch Processing in Pharmaceuticals: DSAI130A 3BSE018292R1 Acquiring highly accurate temperature, pressure, and pH data from bioreactors and mixing vessels to ensure strict adherence to recipe parameters and regulatory compliance.

Continuous Process Control in Refining: Monitoring critical analog signals from distillation column trays, furnace temperatures, and pump discharge pressures to optimize yield and ensure safe, efficient refinery operations.

Environmental Monitoring & Utilities: Measuring flow rates in water distribution networks, pressure in steam headers, and analog outputs from gas detection systems for efficient resource management and safety system support.

Please contact Sunny [email protected] for the best price.
