Description
The ABB COM0003 2RAA005844A0006A is a high-performance communication interface module in ABB’s industrial communication product series, specifically designed for reliable data exchange between automation control systems and field devices. This module employs advanced communication technology, supports the Profibus DP protocol, and can seamlessly integrate with various field devices such as sensors, actuators, and frequency converters. In industrial automation systems, the COM0003 2RAA005844A0006A plays a crucial bridging role between the control layer and the field layer, ensuring accurate transmission of control commands and real-time acquisition of process data.

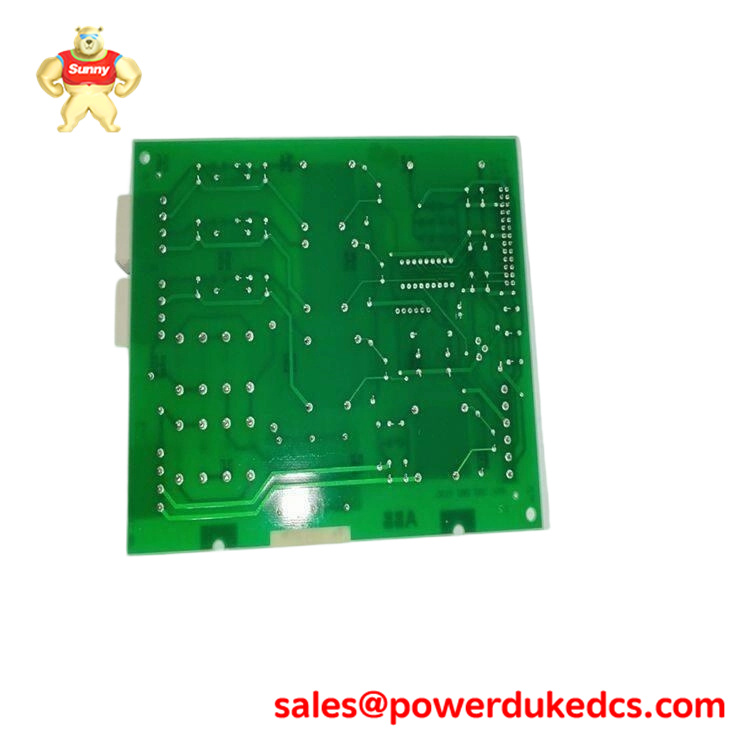

Product Model: ABB COM0003 2RAA005844A0006A
Product Type: Serial Communication Module / I/O Expansion Card
Core Function: Expands the serial port of the ABB AC 800M controller, allowing connection to third-party devices such as Modbus RTU/ASCII via RS-232/RS-485 without an additional gateway.
Typical Applications: Connecting older or specialized equipment that only supports serial communication, such as frequency converters, flow meters, and valve positioners.
🔌 Key Parameters
Communication Interface:
1 × RS-232 (DB9 male)
1 × RS-485/422 (software optional, 5.08 mm terminal block)
Supported Protocols: Modbus RTU, Modbus ASCII, supports custom ASCII/binary protocols.
Transmission Rate: 300 bps ~ 115.2 kbps (configurable).
Electrical Isolation: The RS-485 port features 2.5 kV optical isolation for enhanced interference immunity.
Power Supply: Powered via the AC 800M backplane, no external power supply required.
Installation: Insert into the XS2/XS3 expansion slot of the AC 800M CPU (e.g., PM864A) or the S800 I/O backplane.
Operating Temperature: 0°C ~ +60°C.
Status Indicators: Front panel equipped with PWR (Power), TX (Transmit), and RX (Receive) indicator lights.
Typical Applications
Automotive Manufacturing: In the retrofitting of an automotive painting line in Europe, this module connected dozens of frequency converters that only supported Modbus RTU to the AC 800M system, avoiding large-scale equipment replacement and significantly reducing retrofitting costs and downtime.
Pharmaceutical Industry: In a pharmaceutical plant’s water for injection (WFI) distribution system, this module directly polled multiple Modbus flow meters and pressure transmitters, meeting the data integrity requirements of FDA 21 CFR Part 11 and shortening the commissioning cycle.
