Description
Product Overview

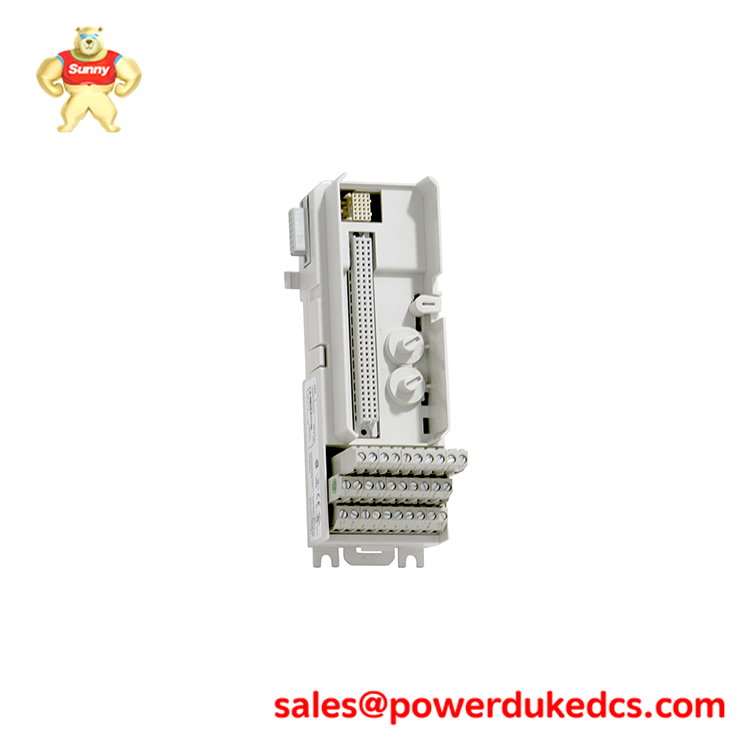

The ABB TP853 3BSE018126R1 is a screw-terminal baseplate designed for ABB S800 I/O modules within the AC 800M and System 800xA distributed control systems. It serves as the dedicated field-wiring interface, providing a robust and reliable connection point for sensors, actuators, and other field devices. This passive yet critical component ensures signal integrity and simplifies maintenance by enabling quick, hot-swappable replacement of I/O modules without disturbing field wiring.
-
Product Model: ABB TP853 3BSE018126R1
-
Brand: ABB
-
Warranty: 12 months
-
Input Voltage: 24 V DC
-
Operating Temperature: -25°C to +55°C
-
Storage Temperature: -40°C to +70°C
-
Response Time: Millisecond range
-
Protection Class: IP20
-
Rated Current Range: Supports standard S800 I/O module current ratings
-
Communication Interface: DCS backplane communication via module connector
-
Supported Protocols: System bus protocols
-
Overload Capacity: Protected by connected I/O module
-
Dimensions: Approx. 127.5 mm (H) × 59 mm (W) × 162 mm (D)
-
Weight: Approx. 0.55 kg
Key Functions
-
Field-Wiring Interface: TP853 3BSE018126R1 Provides a secure, screw-terminal connection for field wiring, ensuring stable contact and resistance to vibration.
-
Hot-Swappable Module Mounting: Allows I/O modules to be replaced without rewiring, minimizing downtime and maintenance efforts.
-
Signal Integrity: Maintains signal fidelity for sensitive signals (e.g., millivolt thermocouples, 4–20 mA loops) through impedance-matched and shielded internal PCB traces.
-
Diagnostic Support: Exposes module status LEDs and routes diagnostic signals to the backplane, enabling quick fault detection and troubleshooting.
Application Scenarios
-
Process Control: Used in industries like chemical, oil and gas, and power generation to connect field devices to DCS/PLC systems, ensuring reliable signal transmission and easy maintenance.
-
Data Acquisition: Facilitates the connection of remote sensors and transmitters to the control system, supporting accurate data collection and process monitoring.
