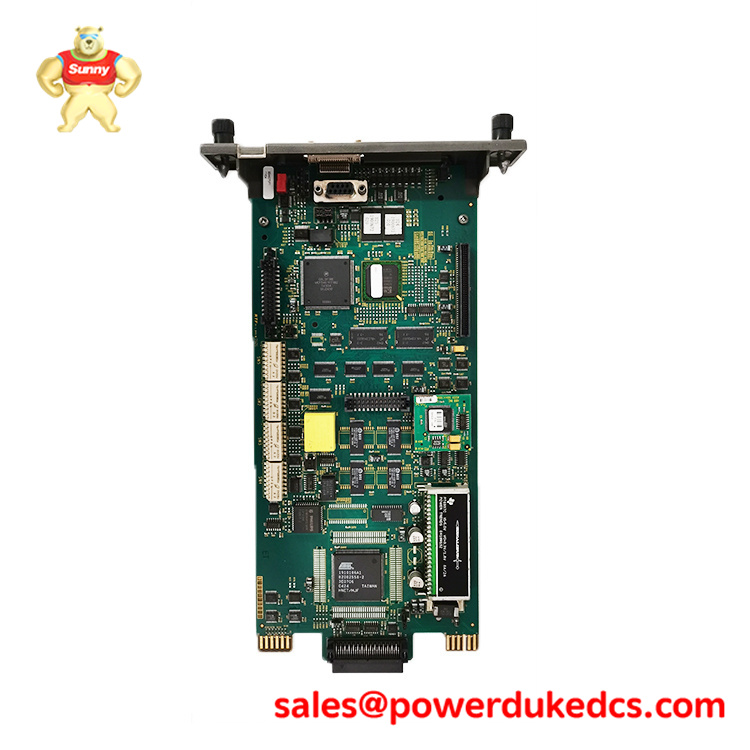

The ABB BPL0001 is an industrial-grade feeder protection and control module, functioning as a motherboard or main control board within ABB’s protection relay family. It is designed for medium-voltage distribution networks, providing essential functions for line and feeder protection, measurement, and control. This module is typically integrated into switchgear, motor control centers (MCCs), and distribution panels to ensure safe and reliable power system operation.
The ABB BPL0001 is built for long-term, maintenance-free service in demanding environments. It supports a variety of protection functions, including overcurrent, earth fault, and undervoltage, and is suitable for both new installations and retrofit projects. With its modular design, the ABB BPL0001 can be easily integrated or replaced, minimizing downtime during upgrades or repairs.
-
Product Model: ABB BPL0001
-
Brand: ABB
-
Warranty: One Year
-
Input Voltage: 24 V DC (nominal)
-
Operating Temperature: -25°C to +70°C
-
Storage Temperature: -40°C to +85°C
-
Response Time: ≤ 30 ms (typical for fault detection)
-
Protection Class: IP20 (panel-mount)
-
Accuracy Class: 0.5 (for current/voltage measurement)
-
Output Frequency: Not applicable (relay-based output)
-
Rated Current Range: 1 A / 5 A (configurable, depending on CT/VT inputs)
-
Communication Interface: Optional communication module (e.g., RS-485, Ethernet)
-
Supported Protocols: IEC 60870-5-103, Modbus RTU (via optional module)
-
Overload Capacity: 2× rated current for 1 second
-
Dimensions: Approx. 100 mm (H) × 60 mm (W) × 120 mm (D)
Key Functions
-
Feeder Protection: Provides comprehensive protection for distribution feeders, including overcurrent, earth fault, and undervoltage.
-
Measurement & Monitoring: Measures key electrical parameters such as current, voltage, power, and energy for system monitoring and analysis.
-
Control & Signaling: Supports trip, close, and alarm outputs for integration with circuit breakers and SCADA systems.
-
Modular Design: Facilitates easy maintenance and replacement, reducing system downtime during upgrades or repairs.
Application Scenarios
-
Process Control: Ensures reliable power distribution and protection in industries such as oil & gas, petrochemical, and power generation.
-
Data Acquisition: Facilitates accurate measurement and monitoring of electrical parameters in substations and distribution networks.
