Description

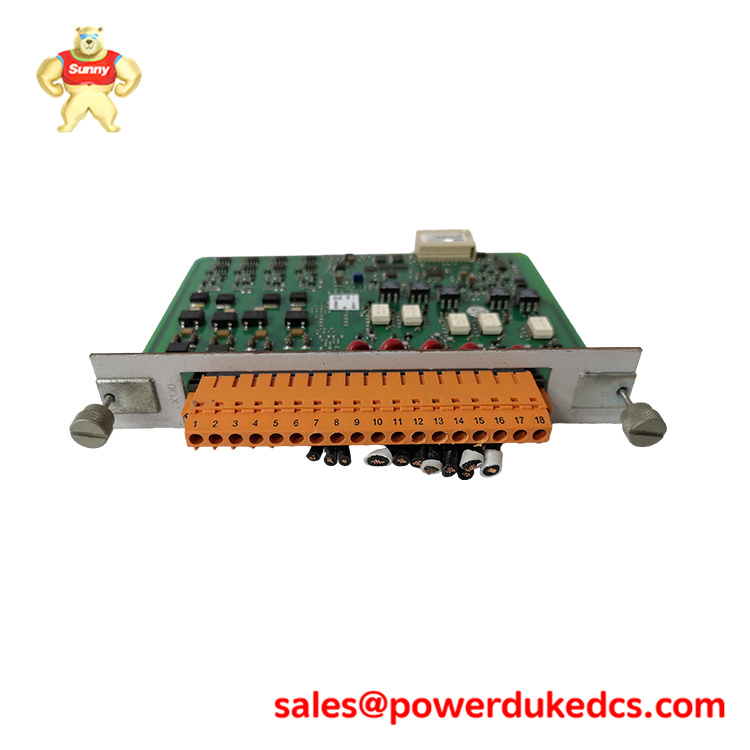

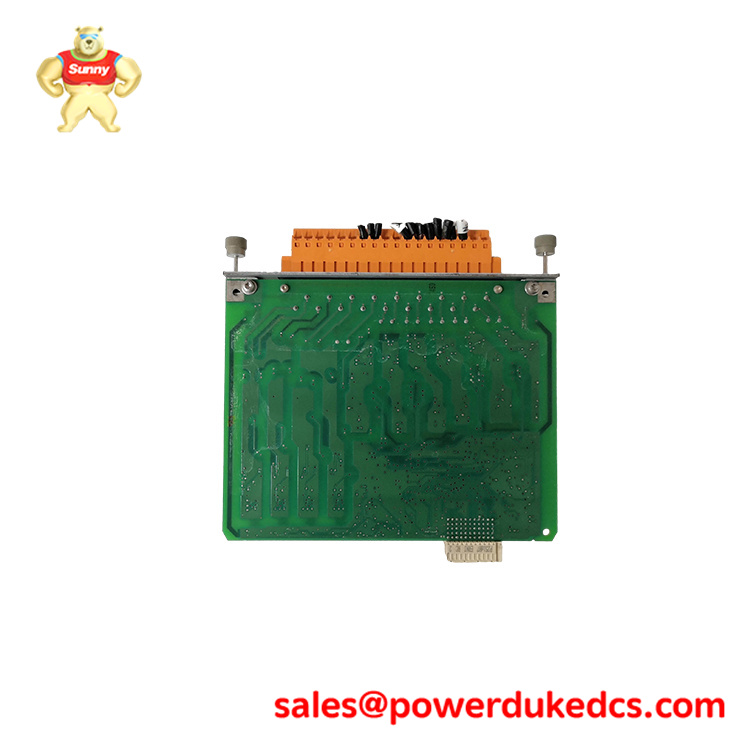

The AIM0006 2RCA021397A0001F is a high-density Analog Input Master (AIM) module designed for the ABB distributed control system (DCS). This specific, fully-qualified part number represents a complete, factory-configured module ready for installation in a DeltaV S-series or PM I/O subsystem. The module’s core function is to serve as the intelligent controller for a bank of up to 16 single-channel or 8 dual-channel analog input cards, managing the signal acquisition, conditioning, and communication for a large number of field instruments. The AIM0006 2RCA021397A0001F handles a variety of analog signals—including 4-20 mA, voltage, RTD, and thermocouple inputs—by coordinating with its associated CHARacterizer Module (CHARM) cards. It provides advanced diagnostics, signal linearization, and digital filtering before publishing data to the DeltaV controller network.
Technical Parameters
| Parameter | Value |
|---|---|
| Product Model: | AIM0006 2RCA021397A0001F |
| Brand: | ABB |
| Warranty: | 3 Years (New) |
| System Platform: | DeltaV S-series or PM I/O |
| I/O Type Managed: | Analog Input (AI) |
| Maximum Channels Managed: | 16 single-channel CHARMs or equivalent |
| Input Signal Compatibility: | 4-20 mA, 0-10 VDC, RTD (Pt100, Pt1000), Thermocouple (J, K, T, E, etc.) via CHARMs |
| Communication Bus: | Native DeltaV I/O Bus |
| Operating Temperature: | 0 °C to +60 °C (in rated enclosure) |
| Storage Temperature: | -40 °C to +85 °C |
| Isolation: | Channel-to-channel and field-to-system via individual CHARM modules |
| Update Rate: | Configurable, synchronized with controller scan (e.g., 250 ms) |
| Power Supply: | +5 VDC and +24 VDC from I/O card carrier backplane |
| Accuracy: | Dependent on CHARM type; typically ±0.05% of span for standard AI |
Application Scenarios
-
- Large Process Unit Instrumentation: Consolidating hundreds of temperature, pressure, level, and flow transmitter signals from a distillation column or reactor train in a petrochemical plant into a compact I/O footprint.
- Pharmaceutical Batch Facilities: Managing precise temperature and pressure inputs from vessels and bioreactors where high channel count and reliable data integrity are required for process validation and recipe control.
- Power Plant Monitoring: Acquiring analog signals from turbine and boiler monitoring points (vibration, temperature, pressure) for performance calculation and equipment protection logic within the DCS.
