Description
Product Overview

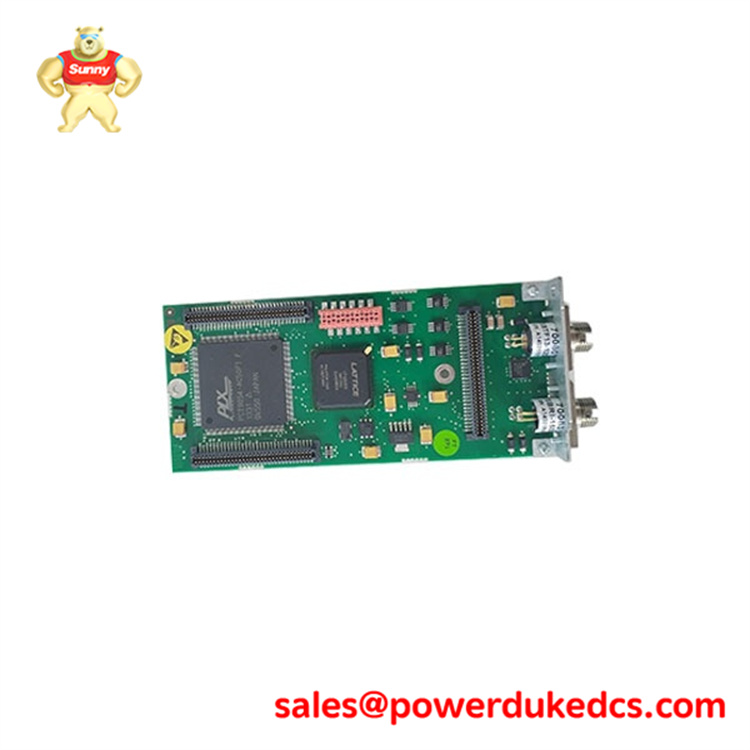

The ABB 12KM02E-V0002 is a high-performance control and interface module designed for ABB automation platforms. It functions as an online motherboard or multi-axis control unit, providing critical signal processing, motion coordination, and system communication functions.
This module is commonly used as a spare part for ABB control systems and CNC machine tools, supporting seamless integration, online data exchange, and multi-axis interpolation. It is suitable for upgrading and retrofitting industrial equipment, ensuring stable and reliable operation in demanding automation applications.
-
Product Model: ABB 12KM02E-V0002
-
Brand: ABB
-
Warranty: One Year
-
Input Voltage: 24 V DC (nominal)
-
Operating Temperature: -10°C to +60°C
-
Storage Temperature: -40°C to +85°C
-
Response Time: ≤ 5 ms (typical)
-
Protection Class: IP20 (panel-mount)
-
Accuracy Class: 0.1% FS (typical, for analog channels)
-
Output Frequency: Up to 100 kHz (programmable, depending on application)
-
Rated Current Range: 0–20 mA / 4–20 mA (configurable analog outputs)
-
Communication Interface: RS-485 / Ethernet (depending on configuration)
-
Supported Protocols: Modbus RTU / Modbus TCP (as applicable)
-
Overload Capacity: 150% of rated current for 10 seconds
-
Dimensions: Approx. 150 × 100 × 75 mm (H × W × D)
Key Functions
-
Multi-Axis Control: Supports multi-axis motion control and interpolation, enabling synchronized operation of servo axes for CNC and motion applications.
-
Online Motherboard: Acts as the central processing and communication board for ABB control systems, managing data exchange between the host and I/O modules.
-
Flexible I/O Processing: Provides configurable digital and analog I/O channels with signal conditioning, isolation, and filtering for precise data acquisition and control.
Application Scenarios
-
CNC Machine Tools: Used as the interpolation and motion control module for multi-axis CNC machines, ensuring precise and synchronized axis movement.
-
Industrial Automation: Ideal for upgrading and retrofitting ABB control systems, providing a cost-effective solution for system expansion and modernization.
-
Process Control: Suitable for applications requiring precise control and monitoring of industrial processes, such as in the automotive, aerospace, and electronics industries.
