Description
Product Overview

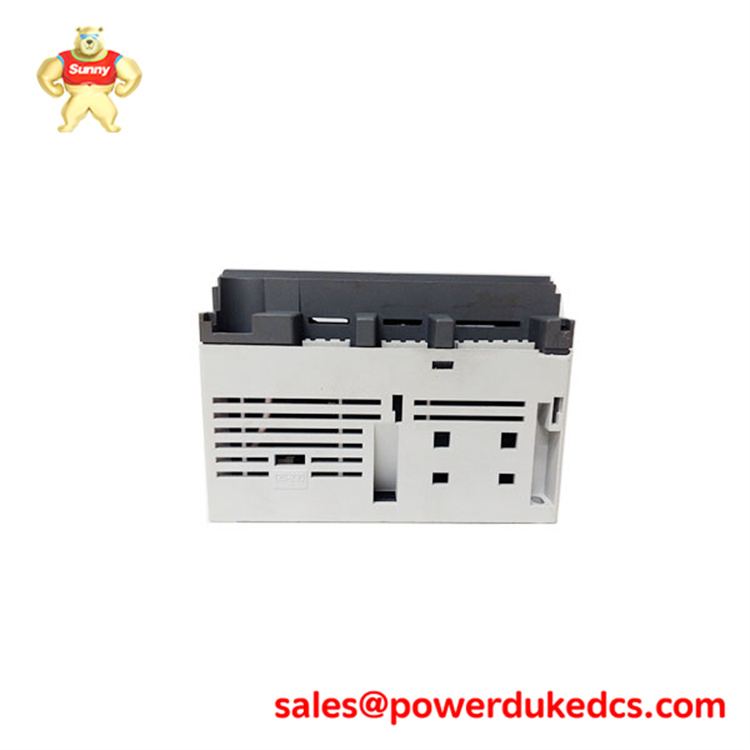

The ABB 07KT97F1 is a high-performance Advant Controller 31 base unit, serving as a central processing unit (CPU) for distributed control systems. It integrates a rich mix of digital and analog I/O, communication ports, and real-time control functions, making it ideal for both standalone and networked automation tasks.
-
Product Model: ABB 07KT97F1
-
Brand: ABB
-
Warranty: One Year
-
Input Voltage: 24 V DC (nominal, ±10%)
-
Operating Temperature: 0°C to +55°C
-
Storage Temperature: -25°C to +70°C
-
Response Time: Millisecond-level
-
Protection Class: IP20 (panel-mount, touch-safe inside cabinet)
-
Accuracy Class: Not applicable
-
Output Frequency: Program-controlled
-
Rated Current Range: Not applicable
-
Communication Interface: 1 × CS31 system bus, 2 × serial ports (COM1/COM2, RS-232/RS-485)
-
Supported Protocols: CS31, Modbus RTU/ASCII (via serial ports)
-
Overload Capacity: Protected by host system; module is not user-load rated
-
Dimensions: Approx. 160 mm × 120 mm × 100 mm (W × H × D)
-
Weight: Approx. 0.8 kg
Key Functions
-
Central Processing: Executes user logic programs and manages all connected I/O modules and communication interfaces.
-
Flexible I/O Configuration: Supports a wide range of digital and analog I/O modules for customized control solutions.
-
Distributed System Architecture: Can function as a CS31 bus master or a remote processor, enabling scalable and modular system design.
Application Scenarios
-
Process Control: Ideal for monitoring and controlling parameters such as temperature, pressure, and flow in industries like oil and gas, chemical, and power generation.
-
Machine Automation: Suitable for controlling and monitoring automated machinery in manufacturing plants, ensuring precise and synchronized operation.
-
Legacy System Upgrade: Perfect for upgrading and retrofitting ABB AC31 and Advant Controller 31 systems, providing a cost-effective solution for system modernization.
