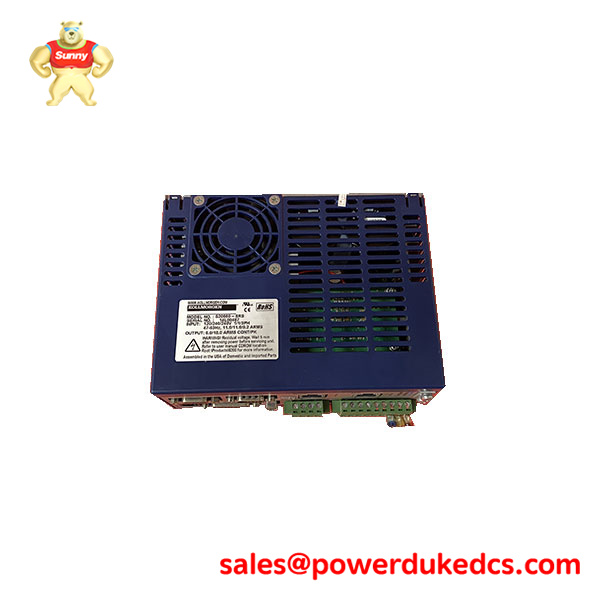

Kollmorgen SERVOSTAR 603 – Digital Servo Amplifier (S600 Series)
2. Product Overview
The SERVOSTAR 603 is a high-performance, fully digital servo amplifier within Kollmorgen’s S600 series, designed to provide precise control for brushless synchronous servo motors. Operating directly from 230V to 480V AC lines, this drive eliminates the need for external transformers in many global industrial applications. It is engineered to solve the challenge of high-speed motion control in compact spaces, offering an integrated power supply and internal EMI filters.
The SERVOSTAR 603 utilizes advanced digital control loops (PI or PDFF) and patented DQ current control to enhance motor performance, providing smooth low-speed operation and high-speed torque. Its ability to store up to 180 motion tasks and interface with various fieldbus options (like CANopen, PROFIBUS, or EtherCAT via expansion cards) makes it a versatile hub for complex multi-axis automation systems, ensuring reliability and operational simplicity.
3. Technical Specifications
- Brand: Kollmorgen (Danaher Motion)
- Model:SERVOSTAR 603
- Warranty: One Year
- Condition: 100% New & Original
- Rated Output Current: 3 Amps (RMS) continuous
- Peak Output Current: 6 Amps (RMS) for max 5 seconds
- AC Input Voltage: 3 x 208V – 480V (+10%), 50/60 Hz
- Rated Installed Power: 2 kVA
- Velocity Loop Bandwidth: Up to 400 Hz
- Switching Frequency: 8 kHz
- Feedback Support: Resolver (Standard), Sine Encoder, ComCoder, Incremental Encoder
- Digital I/O: 4 Configurable Inputs / 2 Configurable Outputs (24V PLC compatible)
- Analog I/O: 2 Configurable Inputs (±10V, 14/12-bit) / 2 Configurable Outputs
- Dimensions: 275 mm (H) x 70 mm (W) x 265 mm (D)
4. Key Features & Benefits
- Integrated Safety & Filtering: The <span style=”color: blue;”>SERVOSTAR 603</span> includes a built-in CE line filter and a safety relay to switch off the power stage, reducing the need for external safety components and saving valuable cabinet space.
- Intelligent Positioning: With an onboard position controller, the drive supports speed profiles, register control, and jolt limiting. It can execute complex absolute or relative indexing moves independently of a central PLC.
- Regenerative Power Sharing: Features patented circuitry that allows the DC bus of multiple drives to be connected, enabling them to share regenerative energy and improve overall system efficiency.
5. Application Scenarios
- Precision Labeling & Packaging: Ideal for high-speed labeling machines where rapid acceleration and sub-millisecond synchronization are required to ensure accurate placement on moving conveyors.
- Robotic Pick-and-Place: Used in multi-axis robotic arms for electronics assembly, where the drive’s high velocity bandwidth ensures smooth and precise movements.
- Automated Material Handling: Deployed in warehouse sorting systems and rotary indexing tables that require robust torque control and diverse communication options.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the SERVOSTAR 603 ?
- A: It is a digital servo amplifier that converts AC power into precise current to control the position, speed, and torque of a brushless servo motor.
- Q: Does the SERVOSTAR 603 require a PC for setup?
- A: While basic parameters can be set via the integrated 2-key keypad and LED display, full optimization and complex motion tasking are best handled via a PC using the MOTIONLINK® or DRIVE.EXE software.
