Description
Technical Specifications
- Product Model: IMSS 4701X
- Brand: TRICONEX
- Warranty: One Year
- Input Voltage: 24 V DC
- Operating Temperature: -20°C to +60°C
- Response Time: Sub‑millisecond I/O‑bus response within IMSS backplane; latency governed by Triconex scan cycle
- Protection Class: IP20
- Accuracy Class: SIL 3‑compliant in integrated‑TMR Triconex SIS
- Output Frequency: N/A (bus‑interface; not a waveform‑generating I/O)
- Rated Current Range: Designed for I/O‑bus power budget with components sized for typical safety‑system current draw; power‑implied load ≈20–30 W per mid‑density IMSS‑blade‑slot layouts
- Communication Interface: IMSS‑style I/O bus
- Supported Protocols: Native Triconex I/O‑bus handshake; interoperates with Triconex‑style digital/analog and specialty I/O modules via TMR voting architecture
- Overload Capacity: 2500 V AC optical isolation (bus‑to‑channel and channel‑to‑channel);
- Dimensions: ≈140 mm × 99 mm × 64 mm (rack‑blade footprint); ≈0.5 kg typical weight
Product Overview

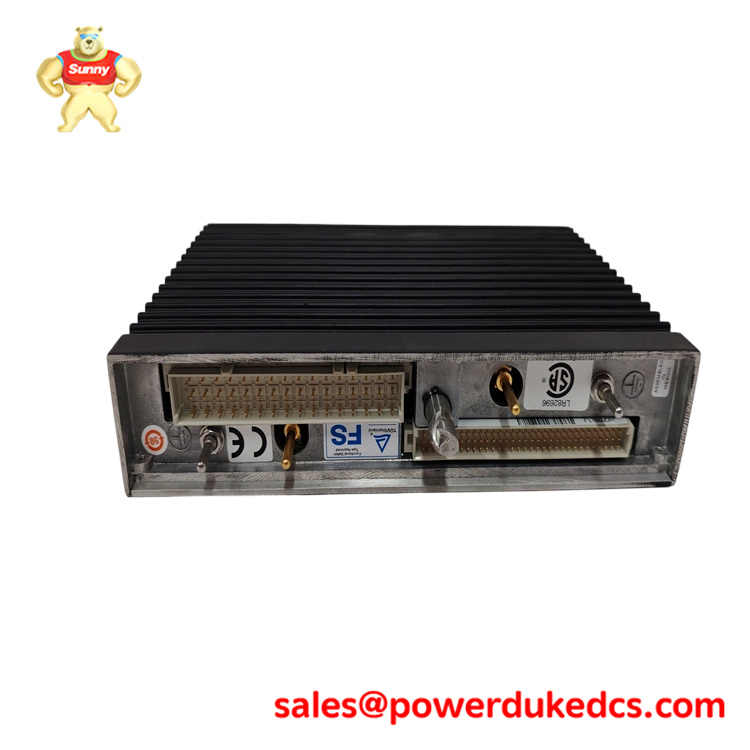

The TRICONEX IMSS 4701X is an Integrated Modular Safety System (IMSS) I/O bus interface module that acts as a redundant communication bridge between Triconex TMR controllers and a wide range of safety‑related I/O modules. Designed for Emergency Shutdown (ESD), Fire & Gas (F&G), Burner Management, and High‑Integrity Pressure Protection applications, this IMSS 4701X ensures real‑time, deterministic message‑passing between control processors and digital/analog field‑interface cards in SIL 3‑capable architectures. The module provides galvanically isolated, 2500 V AC‑rated coupling between safety‑logic CPUs and I/O layers, which helps suppress surges and noise from high‑power field circuits while preserving signal integrity for mission‑critical loops. Its hot‑swappable form factor supports replacement or reset without a plant‑level shutdown, making it suitable for continuous‑process environments in oil & gas, petrochemicals, and power generation. Compatibility with Tricon CX, Trident, and legacy Tricon mainframes ensures this IMSS‑class interface can be integrated into both new and upgraded safety‑instrumented systems. (157 words)
Key Functions
High‑Integrity I/O Bus Interface
The IMSS 4701X serves as the dedicated bus‑coupler card that links the Triconex safety‑CPU to stacks of digital input, analog input, and specialty‑output modules. By formatting and forwarding I/O frames with low‑latency and strict TMR‑aware routing, it keeps safety‑logic scan times consistent, even when I/O density grows. Engineers benefit from a clear separation of control‑logic and field‑signal paths without complex application‑code workarounds.
Triple‑Modular‑Redundant Architecture
Behind its backplane‑facing interface, the module operates within Triconex’s Triple Modular Redundancy (TMR) framework, where three independent signal paths vote on bus‑transactions for critical channels. This structure enables the module to detect and mask faults in link‑handling while keeping valid I/O data available, which is essential in SIL 3‑rated ESD and Turbomachinery Control implementations.
Surge and Noise Immunity via Optical Isolation
With 2500 V AC optical isolation between the system bus and its channel‑side links, the IMSS 4701X provides strong surge‑and‑noise protection typical of high‑integrity safety‑racks. In practical terms, this reduces the risk of voltage spikes or ground‑loop disturbances in high‑power motor‑or‑valve cabinets propagating into the control‑logic plane and causing spurious trips. The module’s isolation also helps maintain consistent performance in harsh, electrically noisy industrial environments.
Hot‑Swap and Predictive Diagnostics
The rack‑blade design allows the IMSS 4701X to be replaced live without removing power from the rest of the Triconex rack, minimizing downtime during maintenance or module‑upgrade events. Onboard diagnostics report bus‑health status and module‑readiness via flashing LEDs or status bits to the control‑engineer’s host software, supporting predictive maintenance and rapid fault‑localization without extensive manual testing.
Application Scenarios
Emergency Shutdown and HIPPS in Oil & Gas
Offshore platforms and onshore gas‑processing facilities integrate the IMSS 4701X into their Tricon‑CX‑based ESD and High‑Integrity Pressure Protection System (HIPPS) cabinets. The module couples pressure‑safety valves, power‑circuit breakers, and ESD pushbuttons to the safety‑CPU, using TMR‑aware bus routing and optical isolation so that localized wiring faults or lightning‑induced surges do not falsely trigger shutdown logic. Field operators note that the hot‑swap capability greatly eases proof‑test coordination during busy production runs.
Fire and Gas Protection in Refining
Large‑scale refineries and chemical‑processing units use the IMSS 4701X‑coupled racks to interface flame detectors, gas‑transmitters, and beacon/relays into Fire & Gas systems. By cleanly separating the control‑CPU and field‑device wiring, the module simplifies loop documentation and reduces cross‑talk in mixed digital/analog panels. Auditors find the optical‑isolation and SIL‑rated diagnostics records helpful in demonstrating that F&G signal‑paths remain reliable and verifiable across long lifecycle intervals.
