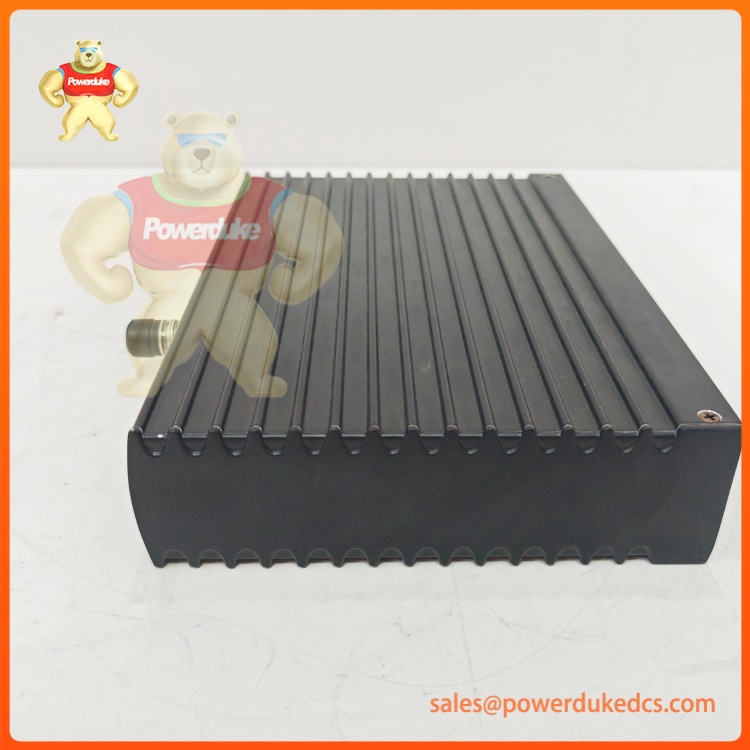

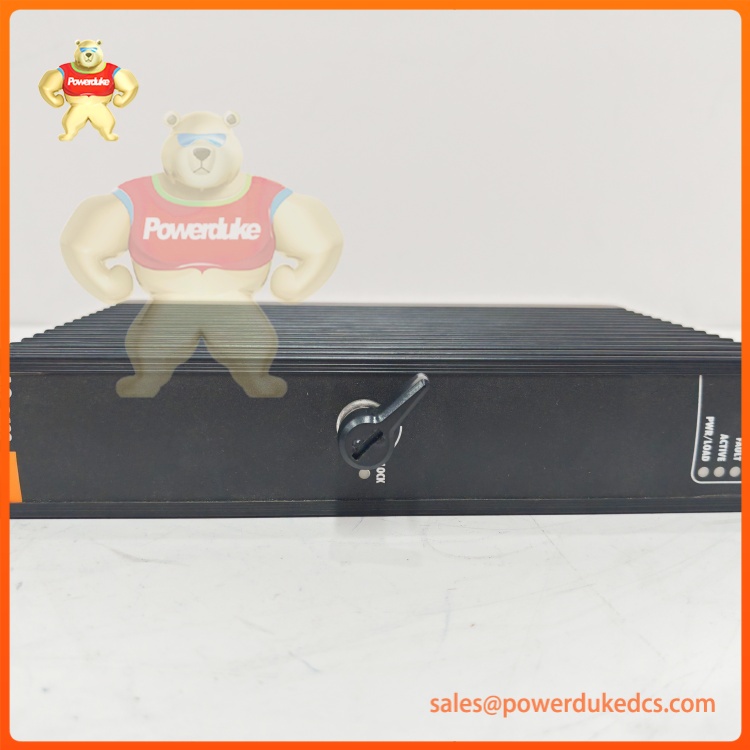

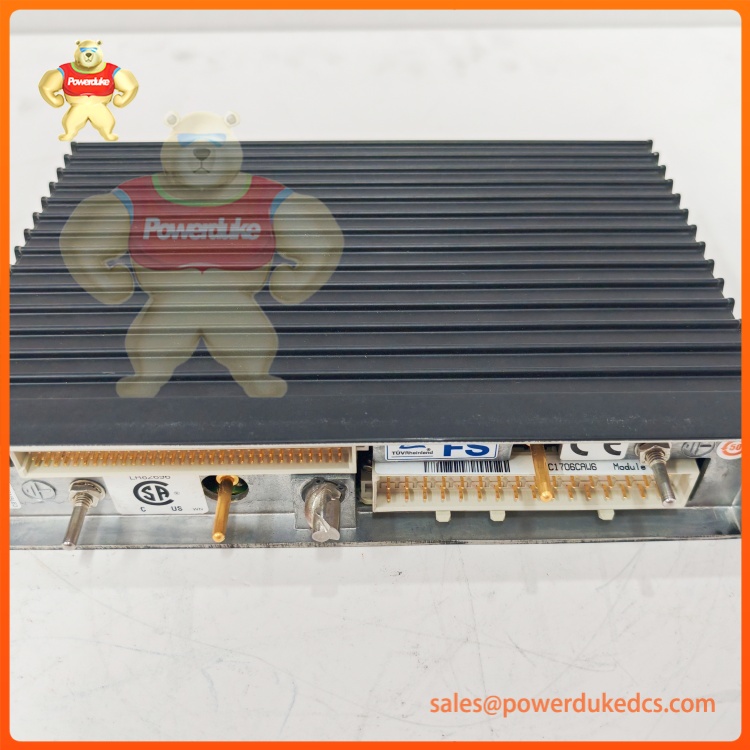

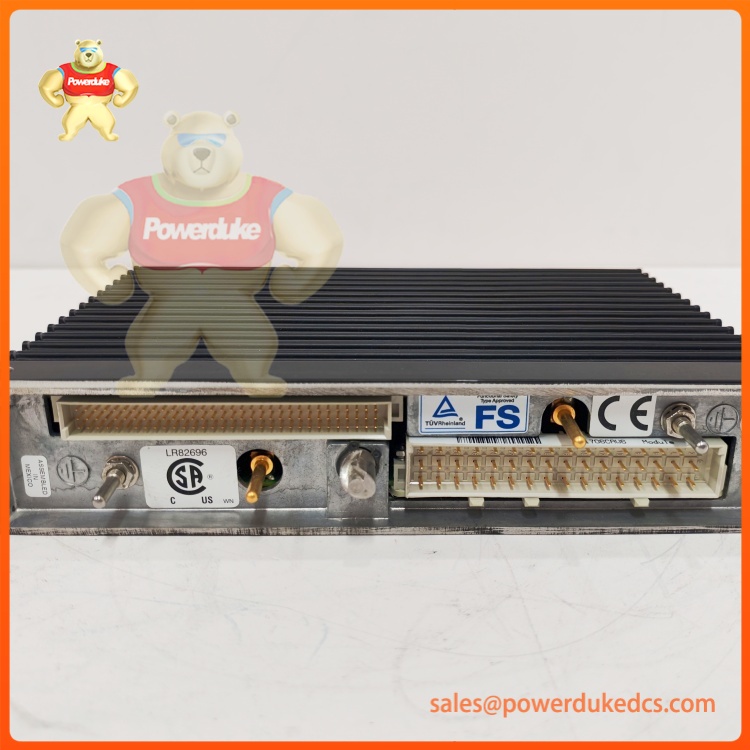

TRICONEX AO3082|Analog output module

Description

Technical Specifications

• Product Model: TRICONEX AO3082
• Brand: Triconex (Schneider Electric)
• Warranty: One Year
• Input Voltage: 24 VDC module supply
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -55°C to +85°C
• Response Time: ≤10 ms per channel
• Protection Class: Industrial safety module with electrical isolation between channels and system
• Accuracy Class: ±0.1% of full scale
• Output Frequency: Real-time analog signal updates within control cycle
• Rated Current Range: 4–20 mA analog output loop
• Communication Interface: Integrated Tricon backplane communication
• Supported Protocols: Triconex Safety Instrumented System (SIS) internal communication architecture
• Overload Capacity: Maximum loop load up to 750 Ω
• Output Channels: 8 independent analog output channels
• Architecture: Triple Modular Redundancy (TMR) safety design
• Power Consumption: Approximately 20 W
• Resolution: Approximately 0.01% full scale digital-to-analog conversion

Product Overview

The TRICONEX AO3082 is a Triple Modular Redundant (TMR) analog output module designed for Triconex safety instrumented systems used in critical industrial process environments. Manufactured by Triconex, this module converts control commands from the system processor into precise analog signals that operate field devices such as control valves, actuators, and variable-speed drives.

Within a Tricon safety controller architecture, the module acts as the interface between digital control logic and analog field equipment. The controller calculates process control values and sends commands to the module, which then outputs stable 4–20 mA current signals to regulate process equipment. This design enables accurate control of flow, pressure, temperature, or speed in safety-critical operations.

A key advantage of the module is its Triple Modular Redundant architecture, where three parallel processing paths perform continuous comparison and voting logic. If one path experiences a fault, the remaining channels maintain accurate output, eliminating single points of failure. This fault-tolerant design supports SIL-3 functional safety applications, making it suitable for emergency shutdown systems and high-integrity process control environments.

The module also includes extensive diagnostics, electrical isolation, and support for hot-swap replacement, allowing maintenance teams to replace modules without shutting down the safety system.

Key Functions

Triple Modular Redundant Output Architecture

The module uses three independent processing channels that continuously compare output values using voting logic. This design ensures continuous operation even if a component failure occurs, maintaining process safety and reliability.

Precision Analog Signal Control

Each of the eight output channels generates high-accuracy 4–20 mA analog signals with ±0.1% full-scale precision. This accuracy ensures stable control of process equipment such as valves, drives, and actuators.

Integrated Diagnostic Monitoring

The controller continuously performs internal diagnostics to detect open circuits, short circuits, overload conditions, and module faults. These diagnostics allow maintenance engineers to identify problems quickly and maintain system availability.

Hot-Swappable Maintenance Capability

The module supports online replacement within a running Tricon system. Technicians can replace a faulty module without shutting down the safety controller, minimizing production downtime.

Application Scenarios

Emergency Shutdown Systems (ESD)

In oil and gas facilities, the module sends precise control signals to shutdown valves and actuators during emergency events. Its redundant architecture ensures the safety system remains operational even if internal faults occur.

Burner Management Systems (BMS)

Industrial boilers and furnaces require reliable analog output control for fuel valves and combustion devices. The module provides accurate signal transmission for safe burner operation.

Chemical Processing Plants

Chemical production environments rely on continuous monitoring and control of process variables. The module drives analog control loops that regulate pumps, valves, and dosing systems.

Power Generation Safety Control

In power plants, the module provides reliable analog signals to turbine control devices and protective systems. This ensures stable process operation and compliance with safety integrity standards.
