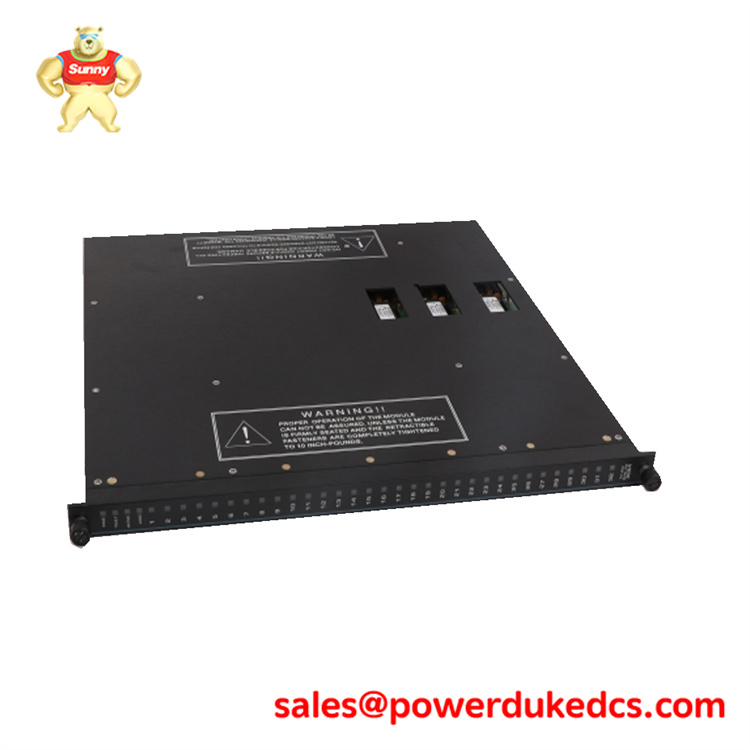

TRICONEX 3601E | –40 °C to +85 °C | digital input/output (I/O) interface module

Technical Specifications

• Product Model: 3601E
• Brand: TRICONEX
• Warranty: One Year
• Input Voltage: 24 V DC (system supplied)
• Operating Temperature: –20 °C to +60 °C
• Storage Temperature: –40 °C to +85 °C
• Response Time: ≤ 10 ms (discrete I/O response)
• Protection Class: IP20
• Accuracy Class: Not applicable (digital I/O module)
• Output Frequency: Not applicable
• Rated Current Range: ≤ 0.5 A per channel (maximum)
• Communication Interface: Tricon backplane interface
• Supported Protocols: Tricon proprietary safety communication (TMR architecture)
• Overload Capacity: Short-duration transient tolerant per Triconex I/O standards
• Dimensions: Approx. 233 × 30 × 115 mm (H × W × D)

Product Overview

The TRICONEX 3601E is a digital input/output (I/O) interface module engineered for deployment within Tricon safety instrumented systems (SIS). Designed to serve as a robust interface between discrete field devices and Tricon controller logic, this module enables accurate, real-time signal acquisition and actuation essential for safety-critical operations. The 3601E processes discrete status inputs—such as alarms, limit switches, and interlocks—and provides corresponding output actions, helping ensure that safety logic executes as intended under all operating conditions.

With its fault-tolerant construction and native integration into Tricon’s triple modular redundant architecture, this module supports rapid and reliable communication with Triconex safety processors. The 3601E enhances safety loop fidelity and supports consistent performance in demanding industrial environments, where accurate digital signaling is crucial to safeguarding personnel, assets, and processes. It is an ideal choice for safety engineers seeking dependable digital I/O performance in mission-critical applications.

Key Functions

Digital Input/Output Processing

The module handles both discrete inputs and outputs, interfacing directly with field devices such as limit switches, emergency stop circuits, and alarm contacts. It ensures that discrete status changes are captured and propagated accurately into the safety logic.

Fast Response and Signal Integrity

With a typical response time of ≤ 10 ms, the 3601E delivers prompt signal processing that enables the safety system to detect and react quickly to abnormal conditions, reducing risk and enhancing operational safety.

Fault-Tolerant Performance

Built for Tricon’s safety-critical environments, the module maintains functionality even under electrical disturbances or component faults, supporting the overall fault-tolerant architecture of the safety system.

Seamless Tricon Integration

Designed for direct backplane installation, the module integrates seamlessly with Tricon controllers and other SIS modules, simplifying system configuration and ensuring dependable communication across the safety network.

Application Scenarios

Oil & Gas Production Safety Loops

In upstream and midstream facilities, the 3601E interfaces with field switches, pressure and temperature trip contacts, and emergency shutdown (ESD) circuits. Accurate capture of these discrete signals enables safe system responses during hazardous events.

Chemical and Petrochemical Plants

Here, the module processes safety interlocks, leak detection switches, and high/low level alarms, ensuring rapid propagation of critical input changes into the safety logic and enabling timely protective actions.

Power Generation Protection Systems

The 3601E supports monitoring of turbine overspeed devices, boiler safety contacts, and auxiliary shutdown alarms, contributing to safe plant operation by ensuring protective logic acts decisively in response to abnormal conditions.

Industrial Manufacturing with SIL Requirements

In manufacturing processes requiring safety instrumented functions, the module ensures monitoring of machine guard switches, emergency stops, and interlock circuits, helping meet SIL compliance and improve overall safety performance.
