Description
1. Unboxing & Physical Snapshot

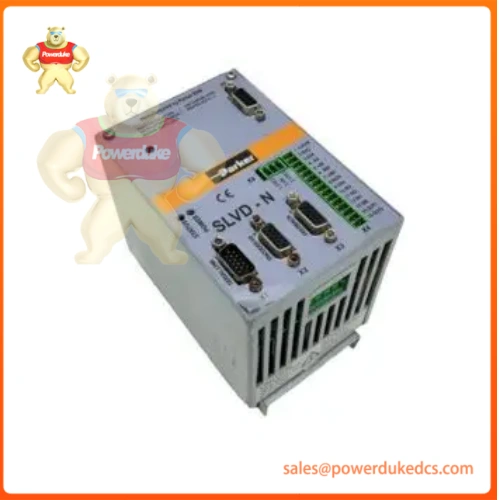

- Model & Brand: Parker Hannifin / SSD Drives SLVD Series Digital Servo Drive (Part No. SLVD5NDR)
- Physical Dimensions (Approximate W x H x D): 65.0 mm x 175.0 mm x 160.0 mm (2.56 in x 6.89 in x 6.30 in).
- Estimated Shipping Weight: 1.20 kg (2.65 lbs).
- What’s in the Box: Digital servo drive unit, pluggable power and motor control connectors, front-panel status LED array, RS-485 / CANopen communication port interfaces, and original manufacturer compliance documentation.
2. Product Introduction
High-precision motion control systems deployed in automated manufacturing lines and robotics require fast, deterministic servo drives to manage high-torque motor positioning without lag. This Parker SLVD-series digital servo amplifier mounts directly into electrical control cabinets—which is vital for regulating brushless AC servo motors across complex multi-axis motion architectures.
The ruggedized metallic and polymer housing encloses advanced power electronics protected against thermal stress and electrical noise. Translating high-level motion controller commands into precise current loops, this hardware ensures stable torque and velocity control under continuous heavy operational cycles.
3. Core Technical Specifications
| Parameter | Value |
| Drive Type | Digital AC Servo Drive / Amplifier |
| Continuous Output Current | 5.0 A RMS nominal rating |
| Input Power Supply | Single-phase / Three-phase 230 V AC nominal bus |
| Control Interface | Analog speed/torque reference, pulse/direction, and fieldbus |
| Communication Ports | RS-485 / CANopen / fieldbus expansion options |
| Operating Temperature Range | 0 °C to +45 °C (32 °F to +113 °F operational limits) |
| Enclosure Protection Class | IP20 cabinet-mounted module classification |
| Feedback Compatibility | Resolver, encoder, and digital hall sensor support |
4. Global Compliance & Industry Certifications
- Expected Regulatory Approvals: CE Mark, UL Listed, cUL, RoHS, and EMC directive compliance (EN 61800-3).
- Safety & Compliance Impact: Compliance with strict electromagnetic compatibility (EMC) standards ensures that high-frequency pulse-width modulation (PWM) switching noise is effectively suppressed, preventing interference with nearby sensitive instrumentation loops.
- Verify specific lot certifications with OEM.
5. Long-Term Storage & Asset Preservation Guide
Keep this servo drive sealed inside its original anti-static (ESD) shielding bag to protect sensitive internal power semiconductors and gate drivers from electrostatic discharge. Maintain warehouse storage conditions at a relative humidity level strictly below 60% to prevent micro-corrosion on the pluggable terminal block pins and internal capacitors. Store the unit flat on shelving racks, avoiding heavy stacking loads that could twist or distort the housing assembly.
6. Physical Installation Prerequisites
- Mount the drive vertically onto a grounded metallic backplate inside the enclosure to ensure proper heat dissipation through natural convection.
- Torque all power and motor terminal screws precisely to prevent loose connections and high-resistance heating under continuous dynamic load currents.
- Route motor power cables and brake lines separately from encoder feedback cables and low-voltage control signals to eliminate induced electrical noise.
7. Buyer’s FAQ (Logistics & Compliance Focus)
- Q: What Harmonized System (HS) code applies for international customs clearance on this Parker servo drive?
- A: Industrial motor controllers, servo amplifiers, and frequency converters typically classify under HS code 8504.40 (static converters) or 8537.10. Confirm exact local code accuracy with your trade compliance broker.
- Q: Does this drive ship with pre-loaded motion tuning parameters?
- A: Units are shipped with baseline factory firmware. System integrators must configure motor parameters, tuning gains, and feedback settings via the configuration software suite during commissioning.
- Q: How does the Country of Origin (COO) documentation affect our import compliance audit?
- A: Manufacturing origin records correspond to authorized European or global production facilities for this series. Check the commercial invoice documentation for exact country records to satisfy trade treaty requirements.
- Q: Is specialized transit insurance recommended during shipment?
- A: Yes. Because electronic servo drives contain heavy internal power components and delicate circuit boards, comprehensive transit insurance guarding against mechanical shock damage is strongly advised.
