1. Unboxing & Physical Snapshot

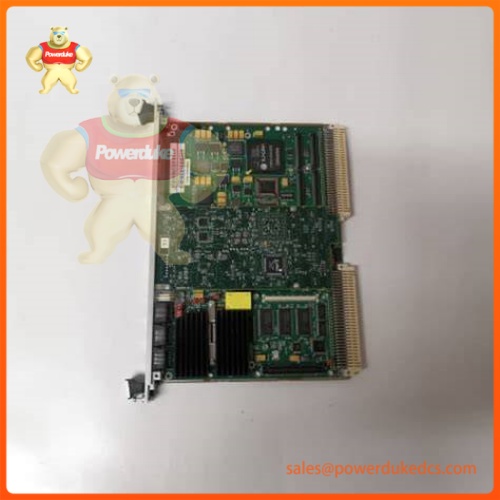

- Model & Brand: Motorola / Artesyn Embedded Technologies (MVME5100 Series) VMEbus Single Board Computer — Part Number: MVME51005E-0163
- Physical Dimensions: Standard 6U VMEbus single-slot board profile (Approximately 233.4 mm × 160 mm, 0.8 inches / 19.8 mm front panel width)
- Estimated Shipping Weight: Approximately 1.2 kg net (Packaged in multi-layer anti-static containment and heavy corrugated transport box)
- What’s in the Box: MVME51005E-0163 VMEbus processor module card, extraction handles, front-panel interface ports, and manufacturer compliance insert.
2. Product Introduction
Structure B (Architecture hook): Engineered for high-performance industrial control, telecommunications, defense, and scientific instrumentation, this VMEbus Single Board Computer (SBC) slides securely into standard 6U VME chassis backplanes. Within rugged real-time computing architectures, the module executes intensive multitasking control routines, acting as the primary system master or intelligent slave node across distributed VMEbus systems.
Housed in a durable metal-shielded front-panel and bare-board chassis, the internal PowerPC processor architecture resists severe mechanical vibration and industrial electromagnetic interference. Its dual Ethernet ports and PMC expansion mezzanine slots provide flexible high-speed connectivity to peripheral instrumentation and supervisory control networks.
3. Core Technical Specifications
| Parameter | Value |
| Component Type | VMEbus Single Board Computer (SBC) / Processor Module |
| Product Family | Motorola / Emerson / Artesyn MVME5100 Series |
| Microprocessor | High-performance PowerPC (e.g., MPC7400/MPC750 RISC architecture) |
| System Memory | High-speed on-board ECC SDRAM |
| Flash Memory | 17MB on-board Flash memory configuration |
| Expansion Mezzanine | Dual IEEE P1386.1 compatible 32/64-bit PMC slots |
| Network Interfaces | Dual 10BaseT / 100BaseTX Ethernet ports |
| Bus Support | VME64 / VMEbus master/slave interface with DMA support |
| Operating Temperature | 0°C to +55°C (Standard industrial range; extended variants available) |
| Physical Net Weight | Approximately 0.95 kg to 1.1 kg |
4. Global Compliance & Industry Certifications
Rigorous type-test verification and environmental standards compliance are mandatory for processing assets deployed within mission-critical industrial and defense infrastructures.
- Expected Certifications: CE Mark (EMC and Low Voltage Directives), UL/cUL Recognized Component listings for industrial control equipment, and RoHS compliance.
- Safety Relevance: Integrated thermal monitoring, watchdog timers, and robust bus-isolation circuitry prevent systemic lockups or erratic memory states from disrupting critical control loops.
- Audit Note: Cross-verify board revision codes, jumper settings, and onboard battery health logs against your system engineering files before backplane insertion.
5. Long-Trust Storage & Asset Preservation Guide
Veteran Maintenance Note: Storing legacy VMEbus computer boards in unconditioned warehouses requires strict electrostatic and humidity control to protect onboard volatile memory backup batteries and surface-mount components.
- ESD Protection: Keep the module permanently sealed inside its original metallized anti-static shielding bag to protect sensitive CMOS logic chips from electrostatic discharge.
- Climate Baseline: Store the unit in a clean, dry environment maintaining relative humidity strictly below 50% non-condensing and ambient temperatures between -20°C and +40°C.
- Battery Maintenance: Inspect or disconnect the onboard lithium real-time clock backup cell if the board is placed in long-term storage to eliminate the risk of acid leakage onto the circuit traces.
6. Physical Installation Prerequisites
- Ensure that the VME rack backplane power is completely locked out and de-energized before inserting or extracting the SBC module to prevent electrical arcing across backplane connector pins.
- Align the board carefully with the top and bottom card guides of the 6U chassis slot, pushing evenly until the rear P1/P2/P5 connectors seat completely.
- Fasten the top and bottom front-panel captive screws tightly to anchor the board against high-vibration industrial environments and maintain proper chassis ground continuity.
7. Buyer’s FAQ (Logistics & Compliance Focus)
- What Harmonized System (HS) code governs international customs clearance?The standard global export classification for this VMEbus single board computer is 8471.50.0150 (Processing units other than those of subheading 8471.41 or 8471.49, whether or not containing in the same housing one or two of the following types of unit: storage units, input-output units).
- How does Country of Origin (COO) verification impact trade compliance?Accurate origin tagging on commercial shipping documents ensures compliance with international trade frameworks; verify the manufacturer label (typically United States manufacturing origin) on the original product box.
- Does this surplus hardware require special software tools for loading firmware?Yes, system configuration and bootloader initialization (such as PPCBug or OpenFirmware environments) require specialized serial console terminal connections and development software.
- What level of transit insurance should be specified?Always mandate fully declared-value, tracked international air cargo insurance to protect delicate printed circuit assemblies and connector pins against impact shocks during transit.
