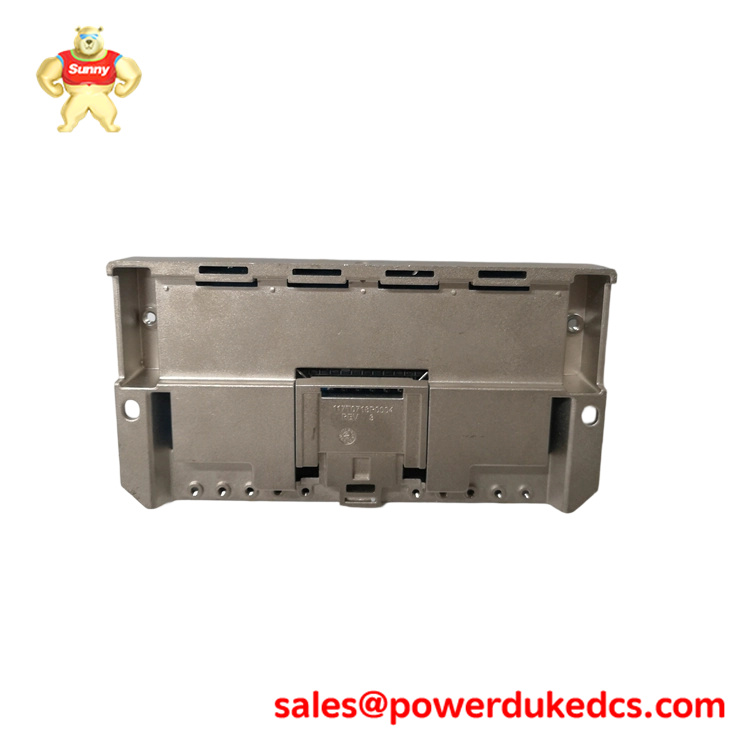

GE IS430SNUAH1A – Universal I/O Module

GE IS430SNUAH1A is a versatile universal input/output module designed for GE’s Mark VIe turbine control systems, supporting diverse signal types including analog, digital, temperature, and high-speed acquisition. This module features 1 MHz sampling with 16-bit resolution for precise waveform capture from ±10V differential inputs, making it ideal for vibration analysis and process monitoring in gas turbine applications. It addresses multi-signal integration challenges by providing configurable I/O channels with advanced conditioning, industrial-grade durability (-40°C to +85°C), and seamless compatibility with Mark VIe controllers via Ethernet IONet. The GE IS430SNUAH1A compact design (12.7 x 10.2 x 3.8 cm) enables easy retrofitting in existing control cabinets.

Technical Specifications

• Brand: GE

• Model: IS430SNUAH1A

• Warranty: One Year

• Condition: 100% New & Original

• Series: Mark VIe​

• Signal Types: Analog (±10V), digital, RTD/TC temperature​

• Sampling Rate: 1 MHz, 16-bit resolution​

• Power Supply: 10-30 VDC universal​

• Operating Temp: -40°C to +85°C​

• Dimensions: 12.7 × 10.2 × 3.8 cm​

• Weight: 0.98 kg​

• Isolation: Integrated low-noise amplifiers

• ​

Key Features & Benefits

• Multi-Signal Flexibility: Configurable channels handle diverse inputs/outputs, reducing module count in mixed-signal turbine monitoring.​

• High-Speed Acquisition: 1 MHz sampling captures transient events for vibration diagnostics and protective relaying.​

• Rugged Construction: Extended temperature range with error correction ensures reliability in harsh turbine environments.​

Application Scenarios

• Turbine Vibration Monitoring: Acquires high-frequency accelerometer signals for machinery health analysis.​

• Process Control Loops: Interfaces pressure/temperature transmitters with Mark VIe controllers.​

• Auxiliary Systems: Manages digital interlocks and analog actuators in balance-of-plant operations.

• ​

Frequently Asked Questions (FAQ)

• Q: What is the primary function of the GE IS430SNUAH1A?

  • A: It provides universal I/O with high-speed analog acquisition for Mark VIe turbine signal processing and control.​

• Q: Is GE IS430SNUAH1A compatible with legacy systems?

  • A: Yes, it integrates via standard Mark VIe IONet Ethernet and supports GE Speedtronic field wiring configurations.
