Description
1. Product Title

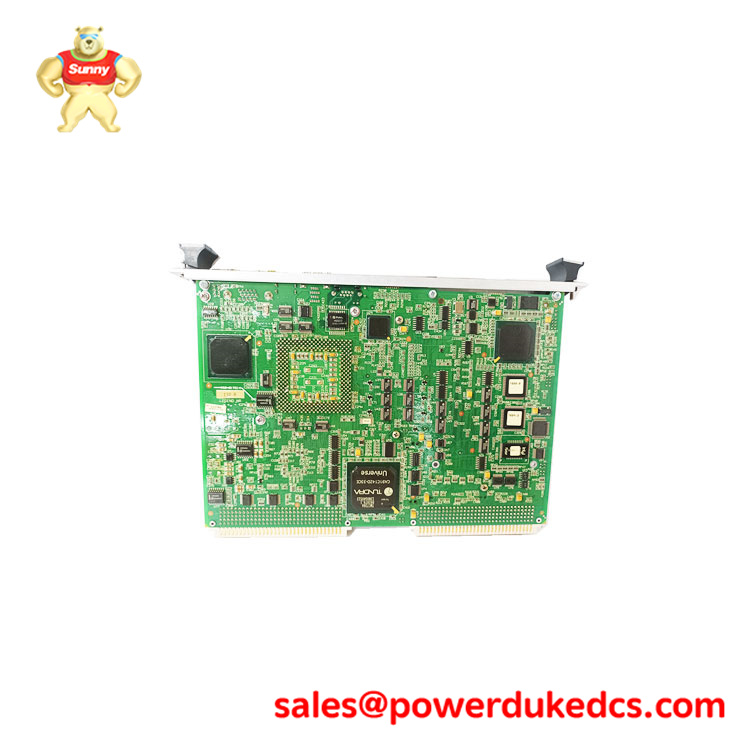

GE IS415UCVHH1A – Mark VIe UCSV Series Controller Module
2. Product Overview
The GE IS415UCVHH1A is a high-performance, standalone controller belonging to the Mark VIe Distributed Control System (DCS) family. As a part of the UCSV controller series, this module is designed to execute heavy-duty application logic for turbine control and balance-of-plant (BOP) systems. TheGE IS415UCVHH1A acts as the central computational hub, processing high-speed data from I/O packs over the IONet and communicating with the Human Machine Interface (HMI) and data historians.
Engineered for mission-critical reliability, this controller supports single (simplex), dual, or Triple Modular Redundant (TMR) configurations. By utilizing a high-speed processor and a deterministic real-time operating system (RTOS), the GE IS415UCVHH1A ensures that complex control loops—such as fuel regulation and overspeed protection—are executed with microsecond precision, addressing the stringent safety requirements of global power generation assets.
3. Technical Specifications
- Brand: General Electric (GE)
- Model:GE IS415UCVHH1A
- Warranty: One Year
- Condition: 100% New & Original
- Series: Mark VIe (UCSV series)
- Processor Type: High-speed Intel-based processor
- Operating System: QNX Real-Time OS
- Memory: 128MB
- Communication: * 3x 10/100 Mbps Ethernet Ports (IONet R/S/T)
- 1x 10/100 Mbps Ethernet Port (Unit Network/HMI)
- Serial Interface: RS-232C for local diagnostics and configuration
- Operating Temp: 0°C to +60°C (+32°F to +140°F)
- Power Input: 24V DC nominal
4. Key Features & Benefits
- Deterministic Performance: Runs the industrial-standard QNX operating system to provide consistent, jitter-free execution of critical turbine control algorithms.
- Integrated IONet Redundancy: Features three dedicated Ethernet ports to facilitate Triple Modular Redundancy (TMR), allowing the system to remain online even if two network paths fail.
- Fanless Thermal Management: Designed with high-efficiency heat sinks to eliminate the need for mechanical fans, significantly reducing the risk of component failure due to dust or mechanical wear.
- Cybersecurity Ready: Built with hardware and software safeguards designed to protect the control layer from unauthorized network traffic and potential cyber threats.
5. Application Scenarios
- Main Turbine Controller: Deployed as the primary processor for GE gas and steam turbines, managing start-up sequences, combustion mapping, and load sharing.
- Safety Instrumented System (SIS): Utilized in safety-critical applications where high-speed logic solver capabilities are required to prevent equipment damage.
- Plant-Wide DCS Integration: Serves as a gateway for aggregating data from various I/O packs and providing a unified data stream to the plant’s HMI and SCADA systems.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the <span style=”color: blue;”>IS415UCVHH1A</span>?
- A: It is a central controller module that executes application software and coordinates communication between I/O modules and the operator interface.
- Q: Can the <span style=”color: blue;”>IS415UCVHH1A</span> be used in TMR systems?
- A: Yes, it is specifically designed to support 2-out-of-3 (2oo3) voting logic when three units are installed in a TMR configuration.
