1. Product Title

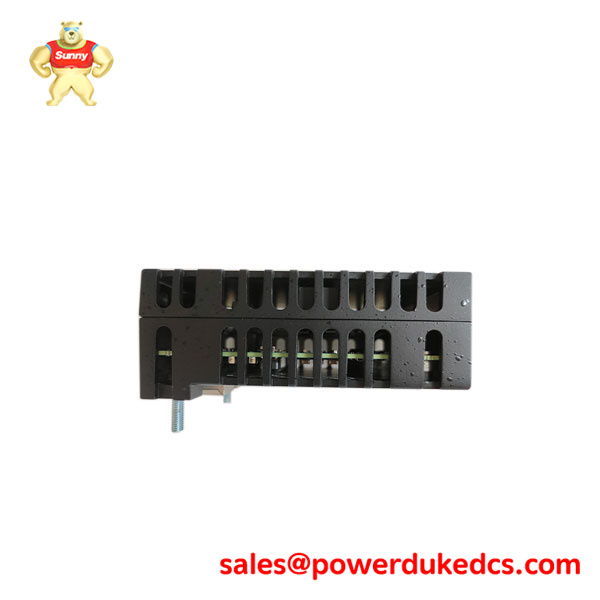

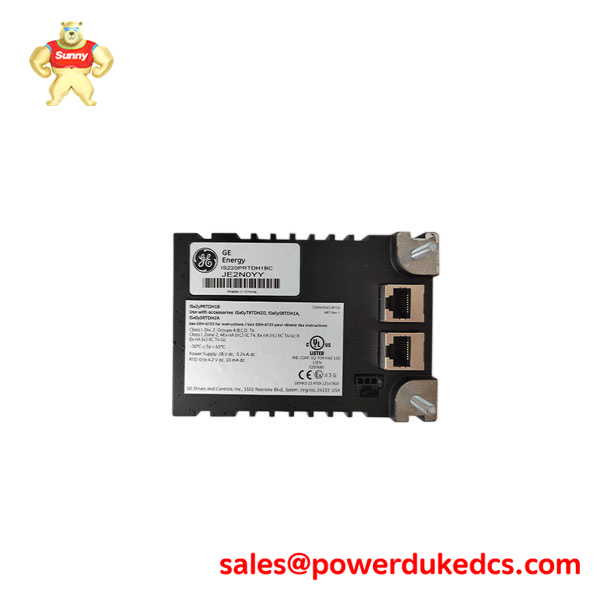

GE IS220PRTDH1A – Mark VIe Resistance Temperature Detector (RTD) Input Pack
2. Product Overview
The GE IS220PRTDH1A is a high-precision I/O pack designed for the Mark VIe Distributed Control System (DCS). Its primary function is to interface with Resistance Temperature Detectors (RTDs) to provide accurate thermal monitoring of critical industrial assets. The module converts analog resistance signals from field-mounted RTDs into digital temperature data, which is then transmitted over the high-speed IONet to the system controllers.
The IS220PRTDH1A is engineered to handle various RTD types and wiring configurations (2, 3, or 4-wire), addressing the need for high-resolution temperature sensing in environments where thermal stability is vital for machine health. With its onboard processor, the module performs local linearization, hardware filtering, and comprehensive self-diagnostics to ensure signal integrity and system safety.
3. Technical Specifications
- Brand: General Electric (GE)
- Model: IS220PRTDH1A
- Part Number: 336A4940CSP6
- Warranty: One Year
- Condition: 100% New & Original
- Input Channels: 8 RTD channels per pack
- RTD Types Supported: Platinum (100Ω, 200Ω), Copper (10Ω), Nickel (120Ω)
- Wiring Configurations: 2, 3, or 4-wire resistance measurements
- Communication: Dual 10/100 Mbps Ethernet ports (IONet)
- A/D Conversion: 16-bit resolution
- Accuracy: Typically within ±0.1% of full scale (depending on RTD type)
- Operating Temp: -30°C to +65°C (-22°F to +149°F)
- Microprocessor: 32-bit RISC processor for local signal processing
4. Key Features & Benefits
- Local Intelligence: The IS220PRTDH1A features a local microprocessor that handles all linearization and engineering unit conversions (^\circC or ^\circF), reducing the computational burden on the main controller.
- Flexible Sensor Compatibility: Supports a wide range of RTD materials and resistances, allowing for standardized hardware across different plant sensors.
- Enhanced Fault Detection: The module continuously monitors for open circuits, short circuits, and out-of-range hardware values, triggering alarms before the faulty data can impact process control.
- Redundant Network Path: Dual Ethernet ports facilitate connection to redundant IONet switches, ensuring temperature data remains available even during a network hardware failure.
5. Application Scenarios
- Generator Bearing Monitoring: Crucial for tracking the temperature of turbine and generator bearings to detect lubrication failure or mechanical wear.
- Winding Temperature Protection: Used in large industrial motors and transformers to monitor internal winding temperatures and prevent insulation breakdown.
- Exhaust Gas Monitoring: Deployed in gas turbine exhaust frames to provide precise temperature profiles for combustion optimization and emissions control.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the IS220PRTDH1A ?
- A: It is an I/O pack that digitizes resistance signals from RTD sensors and transmits the temperature data to the Mark VIe controller via IONet.
- Q: Does the IS220PRTDH1A support 3-wire RTDs?
- A: Yes, it supports 2, 3, and 4-wire configurations, with the 3-wire and 4-wire setups providing superior lead-wire resistance compensation for long cable runs.
