Description

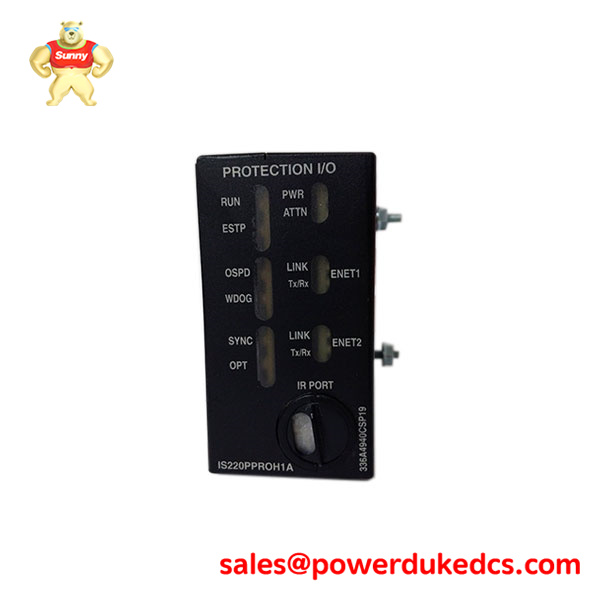

GE IS220PPROH1A – Backup Turbine Protection Module

GE IS220PPROH1A is a specialized I/O protection module within GE’s Mark VIe turbine control systems, providing emergency backup protection for gas and steam turbines. It interfaces directly with critical field devices for overspeed detection, vibration monitoring, and emergency trip functions, operating independently of primary controllers to ensure fail-safe shutdowns. This module resolves safety risks in power generation by delivering hardwired logic, high-speed signal processing, and SIL-rated redundancy, maintaining turbine integrity during primary system faults. With dual Ethernet ports, local processor, and robust diagnostics, the GE IS220PPROH1A supports hot-pluggable installation and real-time health monitoring in control cabinets.

Technical Specifications

• Brand: GE

• Model: IS220PPROH1A

• Warranty: One Year

• Condition: 100% New & Original

• Series: Mark VIe​

• Channels: 16 I/O (digital/analog mix)​

• Communication: Dual Ethernet 100 Mbps​

• Power Supply: 24 VDC​

• Operating Temp: -20°C to +70°C​

• Dimensions: 100 x 50 x 25 mm​

• Weight: 0.2 kg

• ​

Key Features & Benefits

• Emergency Protection Logic: Independent hardwired circuits execute turbine trips on overspeed or severe vibration, bypassing network delays for sub-100ms response.​

• Turbine-Specific Interfaces: Direct connections to speed sensors, accelerometers, and trip relays ensure precise field data acquisition in high-vibration environments.​

• Diagnostic Monitoring: Local processor with temperature sensors and status LEDs enables predictive maintenance, achieving MTBF over 1 million hours.​

Application Scenarios

• Gas Turbine Overspeed Protection: Monitors magnetic pickups and executes immediate shutdowns during acceleration faults in power plants.​

• Steam Turbine Backup: Provides secondary vibration trips and lube oil pressure monitoring in combined-cycle operations.​

• Emergency Shutdown Systems: Integrates with ESD logic for compressor and generator drives in oil & gas facilities.

• ​

Frequently Asked Questions (FAQ)

• Q: What is the primary function of the GE IS220PPROH1A?

  • A: It delivers backup turbine protection through dedicated I/O interfaces for emergency trips and field device monitoring in Mark VIe systems.​

• Q: Is GE IS220PPROH1A compatible with legacy systems?

  • A: Yes, it connects via standard Mark VIe Ethernet IONet and turbine field wiring, supporting integration with Speedtronic Mark VI controls.
