1. Product Title

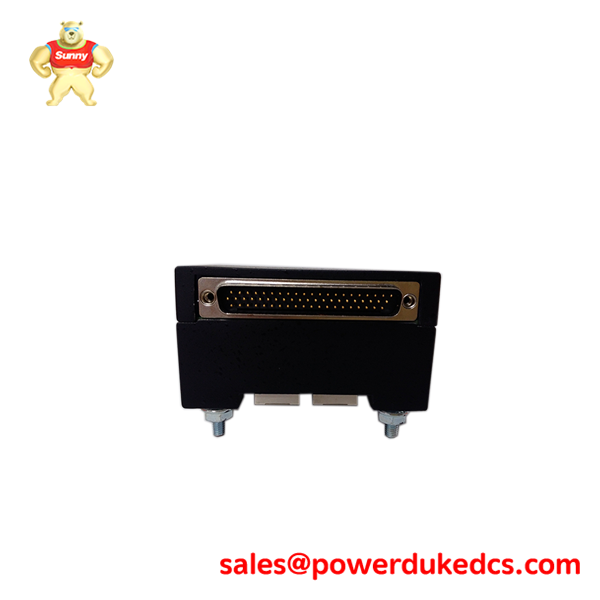

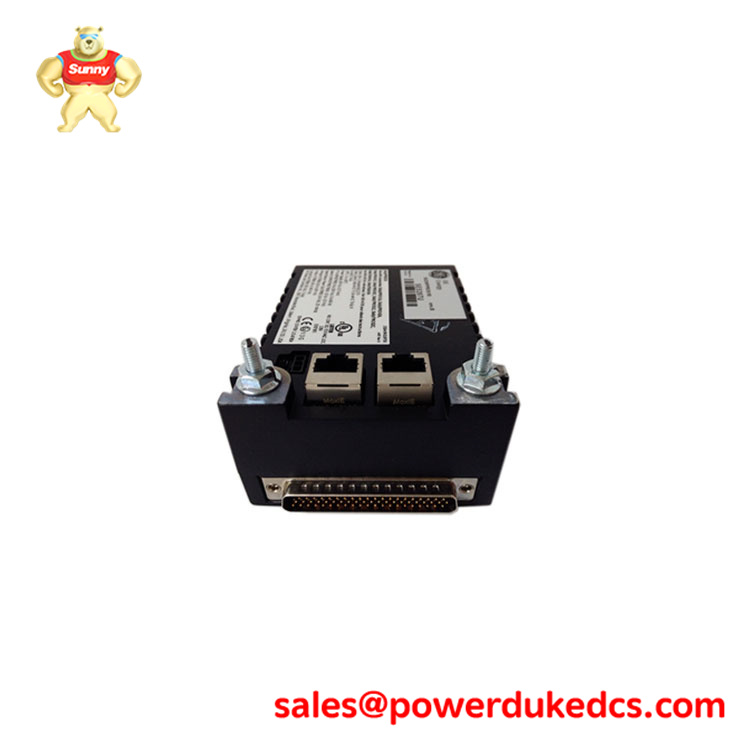

GE IS220PPDAH1B – Mark VIe Power Distribution System Feedback Pack
2. Product Overview
The GEIS220PPDAH1B is a specialized Power Distribution (PPDA) functional module within the Mark VIe Distributed Control System (DCS) ecosystem. This I/O pack is specifically designed to monitor and manage the health of the system’s internal power distribution hardware. Unlike standard I/O modules that interface with external field process equipment, the IS220PPDAH1B provides high-level diagnostic feedback regarding the status of power supplies, fuses, and circuit breakers within the control cabinet.
By integrating directly with the IONet, the IS220PPDAH1B ensures that the central controller has real-time visibility into the integrity of the power bus. It detects issues such as ground faults, blown fuses, and voltage fluctuations, allowing for proactive maintenance and preventing catastrophic system failure due to power loss in critical control loops.
3. Technical Specifications
- Brand: General Electric (GE)
- Model: IS220PPDAH1B
- Warranty: One Year
- Condition: 100% New & Original
- Function: Power Distribution System Monitoring
- Communication: Dual 10/100 Mbps Ethernet ports (IONet)
- Input Voltage Monitoring: Supports feedback from 24V DC, 48V DC, and 125V DC distribution boards
- Monitoring Points: Up to 60 inputs for fuse and breaker status (configuration dependent)
- Time Sync: IEEE 1588 precision time protocol
- Operating Temp: -30°C to +65°C (-22°F to +149°F)
- Mounting: Direct mounting on SPDA or similar Power Distribution Terminal Boards
4. Key Features & Benefits
- Comprehensive Power Diagnostics: The IS220PPDAH1B monitors every critical power path in the rack, providing instant alarms for tripped breakers or missing redundancy.
- Ground Fault Detection: Includes specialized circuitry to identify high and low resistance ground faults on the DC power bus, preventing electrical interference and hardware damage.
- Redundant Network Connectivity: Equipped with dual Ethernet ports to maintain communication with the Mark VIe controllers even during a primary network switch failure.
- Predictive Maintenance Data: By tracking voltage trends and power stability, the module helps operators identify aging power supply components before they cause an unplanned outage.
5. Application Scenarios
- Mark VIe Cabinet Monitoring: Standard installation in any large-scale Mark VIe control cabinet to oversee the power health of all attached I/O packs and processors.
- Turbine Control Power Integrity: Vital for gas and steam turbine systems where the loss of power to a fuel valve or safety trip string must be detected instantly.
- Remote Control Centers: Deployed in unmanned or remote stations to provide detailed power status telemetry to centralized maintenance teams.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the IS220PPDAH1B ?
- A: It is a feedback pack that monitors the status of the power distribution system, including fuse integrity, ground faults, and voltage levels within the DCS cabinet.
- Q: Can the IS220PPDAH1B detect blown fuses?
- A: Yes, it is specifically designed to monitor fuse status on the power distribution terminal boards and report an alarm via the IONet if a fuse opens.
