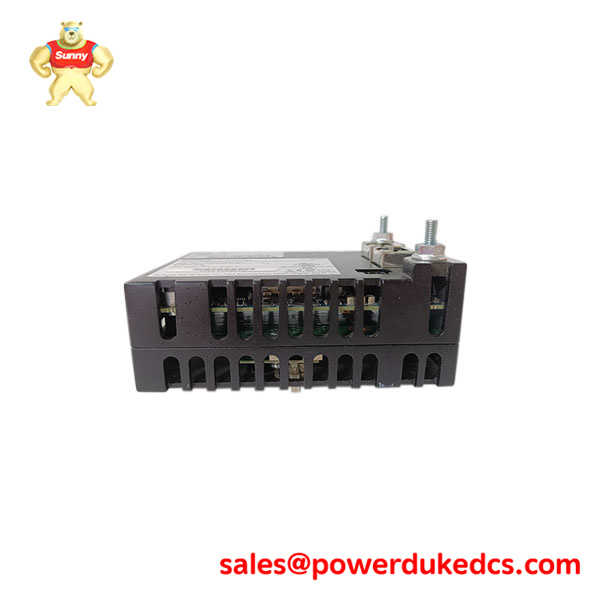

GE IS220PAICH1A – Analog I/O Pack Module

GE IS220PAICH1A is an analog input/output (I/O) pack developed for GE’s Mark VIe turbine control systems, providing precise signal conditioning and processing for field sensors and actuators. Associated with part number 336A4940CSP3, it digitizes analog signals from transducers like pressure, temperature, and vibration sensors, transmitting data to controllers via high-speed Ethernet links. This module solves integration challenges in simplex and triple modular redundant (TMR) architectures by offering scalable I/O capacity, hazardous location certifications, and robust diagnostics for reliable turbine protection and control. The GE IS220PAICH1A supports 28 VDC nominal power with front-panel status LEDs, enabling hot-pluggable operation in demanding power plant environments.

Technical Specifications

• Brand: GE

• Model: IS220PAICH1A

• Warranty: One Year

• Condition: 100% New & Original

• Series: Mark VIe / Mark VI IS200

• Channels: 12 analog inputs/outputs​

• Power Supply: 27.4–28.6 VDC nominal 28 VDC​

• Operating Temp: -30°C to +65°C (-22°F to +149°F)

• Certifications: Class I Div. 2 Groups A/B/C/D, UL E207865, ATEX​

• Communication: Dual 100 Mb Ethernet ports​

• Associated Part: 336A4940CSP3 [query context]

•

Key Features & Benefits

• Analog Signal Processing: Converts field signals to digital format with high accuracy, supporting TMR synchronization for fault-tolerant turbine monitoring and control.​

• Hazardous Location Rating: Certified for Class I Div. 2 environments, ensuring safe deployment in explosive atmospheres common to oil & gas and power sites.​

• Diagnostic Indicators: Four front-panel LEDs provide real-time status on power, communication, and health, facilitating rapid troubleshooting without system halt.​

Application Scenarios

• Gas Turbine Systems: Interfaces analog sensors for combustion monitoring, fuel flow, and exhaust temperature control in Mark VIe platforms.​

• Steam Turbine Controls: Processes vibration and speed inputs for overspeed protection and sequencing in combined-cycle power plants.​

• Compressor Stations: Manages pressure and flow signals in oil & gas pipelines, enabling precise regulation under variable loads.

• •

  ​

Frequently Asked Questions (FAQ)

• Q: What is the primary function of the GE IS220PAICH1A?

  • A: It acts as an analog I/O pack, digitizing sensor signals and interfacing with Mark VIe controllers via Ethernet for turbine applications.​

• Q: Is GE IS220PAICH1A compatible with legacy systems?

  • A: Yes, it integrates with Mark VI TMR setups and supports Ethernet protocols for upgrades from prior GE Speedtronic controls.
