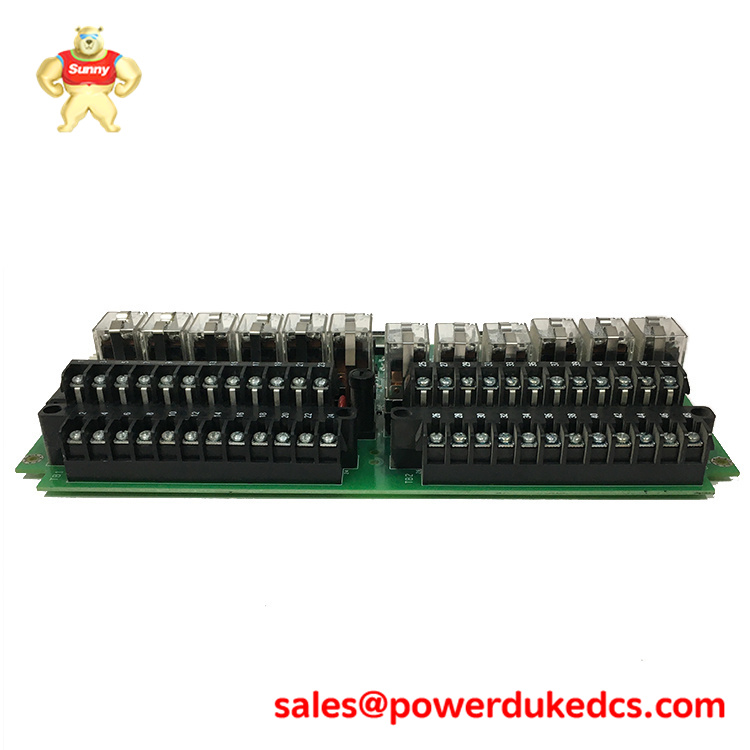

GE IS200TTURH1CCC – Mark VI Primary Turbine Protection Termination Board
2. Product Overview
TheIS200TTURH1CCC is a critical Turbine Primary Protection (TTUR) termination board designed for the GE Mark VI Speedtronic control system. This module serves as the primary interface for essential turbine safety and monitoring functions, specifically handling inputs for turbine speed, overspeed protection, and synchronization. Its role is to bridge the gap between field-mounted sensors and the VME-based I/O processors (typically the VTUR or PTUR modules).
In high-speed power generation, precise speed monitoring is a non-negotiable safety requirement. TheIS200TTURH1CCC solves the industrial challenge of high-frequency signal integrity by providing specialized circuitry for Magnetic Pickup (MPU) sensors. It monitors the turbine’s rotational velocity and provides the hardware-level data required to trigger emergency trips during overspeed events. Additionally, it handles generator and bus voltage inputs for the automatic synchronization process, ensuring the turbine safely connects to the electrical grid.
3. Technical Specifications
- Brand: General Electric (GE)
- Model: IS200TTURH1CCC
- Warranty: One Year
- Condition: 100% New & Original
- Series: Mark VI Speedtronic
- Speed Inputs: Supports multiple Magnetic Pickup (MPU) or Active Speed Sensors
- Voltage Inputs: Generator and Bus PT (Potential Transformer) inputs for synchronization
- Termination: Two-tier, high-density screw-type terminal blocks
- Redundancy: Supports Simplex and TMR (Triple Modular Redundant) voting architectures
- Operating Temp: -30°C to +65°C (-22°F to +149°F)
- Mounting: Standard Mark VI cabinet rack mounting
4. Key Features & Benefits
- Advanced Speed Processing: The IS200TTURH1CCC is engineered to handle high-frequency pulses from speed sensors, converting them into clean data for the overspeed protection logic.
- Synchronization Support: Includes dedicated channels for monitoring generator and bus voltages, allowing the Mark VI to calculate phase angles and frequencies for safe breaker closure.
- System Isolation: Features onboard isolation transformers and surge suppression to protect the control rack from high-voltage transients on the PT lines.
- TMR Reliability: Designed to fan out critical speed and sync data to the R, S, and T processors, ensuring that a single sensor or processor failure does not compromise turbine safety.
5. Application Scenarios
- Overspeed Protection: Acting as the primary landing point for MPUs on the turbine shaft to prevent catastrophic mechanical failure due to uncontrolled acceleration.
- Auto-Synchronization: Deployed in power plants to facilitate the automatic matching of turbine speed and voltage to the utility grid before the main breaker is closed.
- Flame Detection Interface: In specific Mark VI configurations, this board may also assist in routing signals for combustion monitoring and flame intensity verification.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the IS200TTURH1CCC ?
- A: It is a termination board that manages turbine speed inputs, overspeed protection signals, and generator synchronization inputs for the Mark VI system.
- Q: How does the “S1DF00Z” code impact the module?
- A: This represents a specific build configuration or kit version. It ensures that the board meets the exact hardware and labeling requirements for the turbine’s original equipment manufacturer (OEM) specifications.
- Q: Is this board compatible with both Simplex and TMR systems?
- A: Yes, theIS200TTURH1CCC is designed to support both standard Simplex setups and Triple Modular Redundant (TMR) architectures for maximum safety.
