1. Product Title

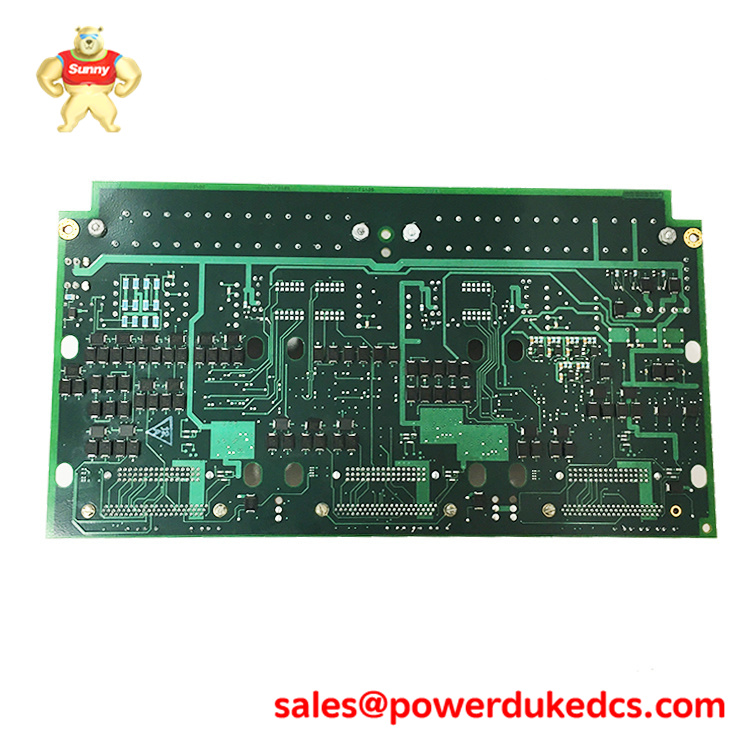

GE IS200TSVCH2AED – Servo Control Terminal Board
2. Product Overview
The IS200TSVCH2AED s a high-precision Servo Control (TSVC) terminal board designed for the GE Mark VI and Mark VIe control systems. Its primary function is to provide the physical interface for controlling electro-hydraulic servo valves, which are responsible for modulating fuel and steam flow in turbine applications. This board, often identified by the assembly part number MRP246517, manages the critical feedback loop between the controller and the turbine’s actuators. By facilitating the connection for Linear Variable Differential Transformers (LVDTs) or Rotary Variable Differential Transformers (RVDTs), the <span style=”color: blue;”>IS200TSVCH2AED</span> ensures accurate positioning of valves. It solves the complex industrial challenge of maintaining tight process control over high-pressure hydraulic systems while providing essential electrical isolation and signal conditioning.
3. Technical Specifications
- Brand: General Electric (GE)
- Model: IS200TSVCH2AED
- Part Number: MRP246517
- Warranty: One Year
- Condition: 100% New & Original
- Series: Mark VI / Mark VIe
- Channels: 2 Servo Output Channels
- Feedback Support: LVDT (Linear Variable Differential Transformer) / RVDT
- Excitation Frequency: 3.2 kHz or 1.6 kHz (System dependent)
- Servo Current: Up to 10 mA or 200 mA (Configurable via I/O pack)
- Operating Temp: -30°C to +65°C (-22°F to +149°F)
- Connectors: Dual 37-pin D-type connectors for TMR or Simplex operation
4. Key Features & Benefits
- Precision Actuator Control: Provides highly accurate current output to drive servo coils, enabling the minute adjustments necessary for stable turbine speed and load control.
- Integrated Feedback Conditioning: Includes specialized circuitry to process AC excitation and return signals from LVDTs, ensuring the control system knows the exact position of every valve.
- Robust Circuit Protection: TheIS200TSVCH2AED features built-in suppression and isolation to protect the sensitive I/O processors from electrical surges originating in the field.
- Redundancy Compatibility: Designed to work in Triple Modular Redundant (TMR) configurations, where three independent processors can vote on the servo output for maximum system reliability.
5. Application Scenarios
- Steam Turbine Inlet Valves: Used to control the main steam valves (Stop and Control valves), where precise modulation is required to manage steam flow into the turbine.
- Gas Turbine Fuel Systems: Manages the Gas Control Valves (GCV) and Variable Inlet Guide Vanes (VIGV) on GE Frame turbines, ensuring optimal air-to-fuel ratios.
- Hydraulic Actuator Calibration: Deployed in any heavy industrial process requiring high-force hydraulic movement with sub-millimeter positioning accuracy.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the IS200TSVCH2AED?
- A: It is a terminal board that interfaces the control system with servo valves and their associated position feedback sensors (LVDTs).
- Q: What does the “AED” suffix signify on this model?
- A: The suffix indicates the specific hardware revision and functional group. The “AED” version is typically used in Mark VIe systems and may include specific component optimizations for newer I/O packs.
- Q: Is the part number MRP246517 the same as the board model?
- A: MRP246517 is the manufacturing assembly number often found on the PCB, while IS200TSVCH2AED is the functional catalog number used for ordering and system configuration.
