1. Product Title

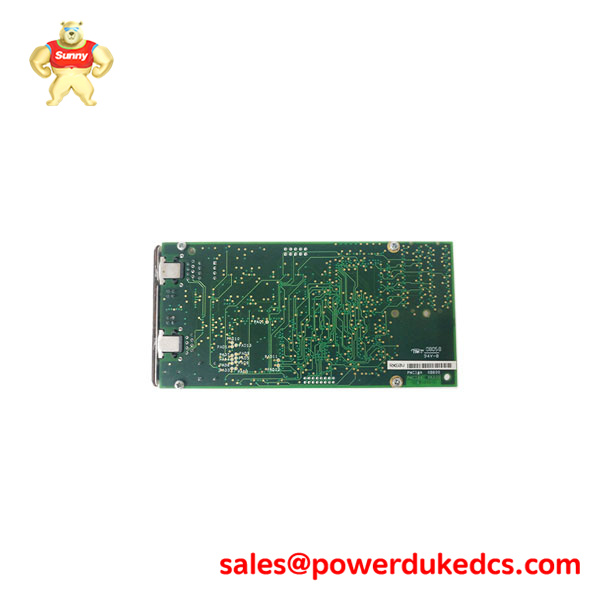

GE IS200PMCIH1AAA6BA00 – Mark VI Power Management Control Interface Board
2. Product Overview
The IS200PMCIH1AAA6BA00 is a sophisticated Power Management Control Interface (PMCI) module within the GE Mark VI Speedtronic turbine control family. This board serves as a specialized processing hub designed to manage power distribution, monitoring, and sequencing for the control system’s internal hardware. Its primary function is to ensure that all modules within the Mark VI rack receive stable, regulated power and to coordinate the diagnostic feedback related to power supply health.
By integrating localized processing with power monitoring, the IS200PMCIH1AAA6BA00 identifies voltage fluctuations, over-current conditions, or thermal abnormalities before they can impact the turbine’s control logic. This component is essential for maintaining the high availability required in mission-critical power generation, as it allows the system to manage redundant power sources and perform seamless failovers without interrupting the primary control loop.
3. Technical Specifications
- Brand: General Electric (GE)
- Model: IS200PMCIH1AAA6BA00
- Warranty: One Year
- Condition: 100% New & Original
- Series: Mark VI Speedtronic
- Function: Power Management and System Interface
- Processor Architecture: Integrated Digital Signal Processor (DSP) / FPGA
- Input Voltage: Supports standard Mark VI backplane power inputs (typically 24VDC/125VDC nominal)
- Connectivity: VMEbus backplane compatible
- Revision Code: H1AAA6BA00 (Specific hardware/software revision layer)
- Operating Temp: -30°C to +65°C (-22°F to +149°F)
4. Key Features & Benefits
- Intelligent Power Sequencing: The IS200PMCIH1AAA6BA00 manages the power-up and power-down sequences for the rack, preventing inrush current damage and ensuring modules initialize in the correct order.
- Real-time Diagnostic Feedback: Continuously monitors the status of power supply modules and reports anomalies to the HMI, enabling rapid identification of power-related faults.
- Hardware Redundancy Support: Specifically designed to manage dual or triple redundant power inputs, ensuring that the control system remains online even if one power source fails.
- Industrial Hardening: Features high-grade electrolytic capacitors and heavy-duty traces to ensure a long service life in the high-temperature environments of gas turbine enclosures.
5. Application Scenarios
- Main Turbine Control Enclosures: Acts as the power management interface for Mark VI cabinets in large-scale thermal power plants.
- Redundant Power Systems: Deployed in configurations where 125VDC battery backup systems and 115/230VAC mains must be managed simultaneously for the control rack.
- Remote I/O Stations: Used to manage power distribution and communication health for distributed I/O racks located far from the central processing unit.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the IS200PMCIH1AAA6BA00 ?
- A: It is a Power Management Control Interface board that monitors and manages the distribution of power to other modules within the GE Mark VI system.
- Q: Does the long suffix “H1AAA6BA00” matter for compatibility?
- A: Yes, this suffix specifies the hardware version, firmware compatibility, and physical board layout. It is crucial to match this version for exact replacements in critical control systems.
- Q: Is this board compatible with the Mark VIe series?
- A: The IS200PMCIH1AAA6BA00 is primarily a Mark VI component. While some cross-compatibility exists in migration paths, it is generally intended for VME-based Mark VI racks.
