Description
1. Unboxing & Physical Snapshot

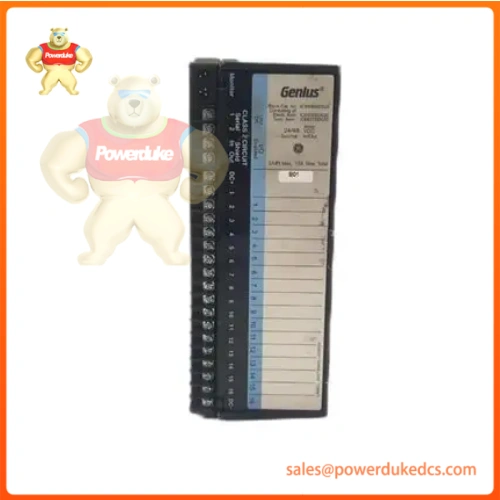

- Model & Brand: GE Fanuc / Emerson — IC660TSD020L (Genius I/O Terminal Assembly)
- Physical Dimensions: Approximately 200 mm x 105 mm x 75 mm (7.9 in x 4.1 in x 3.0 in molded housing).
- Estimated Shipping Weight: 1.0 kg (2.2 lbs) enclosed in heavy corrugated cardboard with custom shock-absorbing foam.
- What’s in the Box: IC660TSD020L terminal base assembly, 16 independent screw-type wiring connection points, built-in handheld programmer port cover, and safety instruction sheets (note: electronic blocks like the IC660EBD020 are ordered separately).
2. Product Introduction
Architectural placement within the decentralized Genius bus network dictates how this terminal base anchors into industrial control panels. Operating as a physical wiring interface, the molded block mounts securely onto standard DIN rails or backplates, routing field actuator signals directly into matching electronic blocks via high-density pin headers (—which eliminates endless point-to-point field wiring).
Internal screw-type terminals paired with heavy bus isolation handle incoming power distribution from field supplies. Plant maintenance engineers rely on this modular base framework to swap failed electronic circuit blocks in seconds without disturbing any permanent external field wiring.
3. Core Technical Specifications
| Parameter | Value |
| Series Type | Genius I/O Terminal Assembly (TSD) |
| Circuit Capacity | 16 independent screw-type terminal connection points |
| Operating Voltage Range | 24 to 48 VDC source power |
| Maximum Current Rating | 2 Amps per connection point (2.8 A overload limit) |
| Block-to-Block Isolation | 1500 Volts dielectric rating |
| Input Impedance | 1.7 milliseconds response characteristic |
| Heat Dissipation | 68.8 Watts maximum operational thermal load |
| Operating Temperature | 0^\circC to +60^\circC (32^\circF to 140^\circF) |
| Storage Temperature | -40^\circC to +100^\circC (-40^\circF to +212^\circF) |
| Enclosure Rating | IP20 industrial molded plastic housing |
4. Global Compliance & Industry Certifications
Auditors require clear validation documents before authorizing control hardware inside heavy industrial facilities.
- Certifications: CE Mark, cULus Listed industrial control equipment, and standard industrial electromagnetic compatibility directives.
- Safety Relevance: The cULus and 1500V isolation ratings ensure that high-voltage electrical spikes on field wiring cannot breach the backplane barrier, protecting central PLC processors and operating personnel from dangerous electrical shocks.
- Audit Note: Verify specific revision lot stamp details with the original manufacturer prior to final system safety inspection.
5. Long-Term Storage & Asset Preservation Guide
Spare terminal bases stored in warehouse stockrooms face environmental exposure that can degrade mechanical screw inserts (—requiring strict climate management to preserve asset integrity). Protect your capital inventory by adhering to these shop-floor maintenance rules:
- Keep warehouse ambient storage temperatures between -40^\circC and +100^\circC while maintaining relative humidity levels strictly between 5% and 95% non-condensing to prevent terminal block corrosion.
- Store the assembly inside its original factory anti-static barrier bag with desiccant packs intact until the exact panel installation date.
- Inspect the 16 screw-type terminal inserts annually for dust or oxidation, wiping exposed metal surfaces lightly with a clean, dry cloth if necessary.
6. Physical Installation Prerequisites
Proper mechanical layout inside the electrical enclosure guarantees safe thermal performance and prevents backplane misalignment.
- Clearance Space: Leave at least 50 mm of vertical clearance above and below the block assembly to allow proper cable routing and hand access to the upper handheld programmer port.
- Grounding Requirements: Secure the mounting base directly to the grounded panel backplate using low-impedance metal hardware to suppress high-frequency electrical noise.
- Torque Specifications: Tighten field wiring screws strictly to manufacturer torque guidelines (typically 0.5 to 0.6 Nm) to prevent loose connections or terminal block cracking under vibration.
7. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What Harmonized System (HS) Tariff Code applies to this GE terminal assembly for international shipping?
A: Industrial control terminal blocks and PLC accessories typically classify under HS code 8538.90.8180 (Parts suitable for use solely or principally with control apparatus). Always confirm with your customs broker.
Q: Does this terminal base ship with an active electronic block attached?
A: No. The IC660TSD020L is strictly the physical terminal assembly base; corresponding electronic blocks must be procured separately.
Q: What is the Country of Origin (COO) for trade compliance record-keeping?
A: This hardware is manufactured in designated global production plants, requiring correct country declarations on commercial import paperwork.
Q: Is specialized transit insurance required for international cargo delivery?
A: Yes, because molded plastic housing corners and terminal block barriers can fracture under heavy drop impacts, comprehensive freight insurance is strongly advised.
