1. Product Title

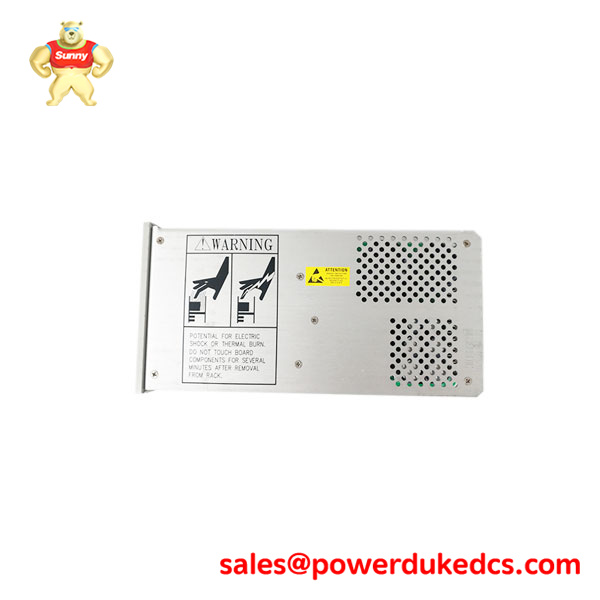

Bently Nevada 3500/15 (127610-01) – High AC Voltage Power Supply Module
2. Product Overview
The 3500/15 (127610-01) , specifically the 3500/15 (127610-01) assembly, is a half-rack High AC Voltage Power Supply designed for the Bently Nevada 3500 Machinery Protection System. This module is responsible for converting incoming AC line power into the regulated DC voltages required by the various monitoring, relay, and communication modules installed within the 3500 rack.
The 3500/15 (127610-01) solves the industrial challenge of maintaining continuous machine protection by providing stable, filtered power that protects sensitive internal electronics from line surges and electrical noise. The 3500/15 (127610-01) variant is typically used in a redundant configuration (two power supplies per rack) to ensure that a single power source failure does not compromise the monitoring of critical assets like turbines, compressors, and large motors.
3. Technical Specifications
- Brand: Bently Nevada
- Model: 3500/15 (127610-01)
- Warranty: One Year
- Condition: 100% New & Original
- Input Voltage: 175 to 250 VAC, 47 to 63 Hz
- Output Voltages: Regulated +/- 15 VDC, +5 VDC
- Power Capacity: 100 Watts (Full Rack Load)
- Redundancy: Supports dual-redundant configuration
- Isolation: 2200 VDC (Input to Output)
- Form Factor: Half-height module (occupies the left-most slots in a 3500 rack)
- Operating Temp: -30°C to +65°C (-22°F to +149°F)
4. Key Features & Benefits
- Fail-Safe Redundancy: When two 3500/15 (127610-01) modules are installed, the rack automatically load-shares. If one supply fails, the other takes over the full load instantly without interrupting machine protection.
- Integrated Line Filtering: The 3500/15 (127610-01) includes advanced internal filtering to mitigate Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), ensuring clean signal processing for vibration sensors.
- Front-Panel Diagnostics: Features LED indicators for “Supply OK” status, providing maintenance personnel with immediate visual confirmation of power integrity without the need for external testing tools.
5. Application Scenarios
- Critical Turbine Protection: Providing the primary and backup power for 3500 racks monitoring multi-million dollar steam or gas turbines in power generation.
- Refinery Compression Trains: Ensuring the vibration monitoring system remains powered during electrical switchgear transitions or local power fluctuations in oil and gas facilities.
- Mining & Heavy Industry: Powering protection systems for massive grinding mills and crushers where electrical environments are often unstable and prone to voltage dips.
6. Frequently Asked Questions (FAQ)
- Q: What is the difference between the 127610-01 and other 3500/15 variants?
- A: The 3500/15 (127610-01) is specifically the High AC Voltage version (175–250 VAC). Other variants exist for Low AC (85–132 VAC) or DC (24 VDC/110 VDC) inputs.
- Q: Can the 3500/15 (127610-01) be hot-swapped?
- A: Yes, in a redundant configuration, one 3500/15 (127610-01) can be removed and replaced while the rack is energized and the machine is running, without losing protection data.
