1. Product Title

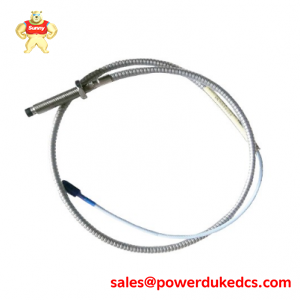

Bently Nevada 330103-00-04-10-02-00 – 3300 XL 8 mm Proximity Probe
2. Product Overview
The Bently Nevada 330103-00-04-10-02-00 is a precision 8 mm proximity probe from the 3300 XL series, engineered for non-contact detection of shaft vibration, position, and speed in rotating machinery. This eddy current probe generates voltage signals proportional to probe-to-shaft gap variations, feeding data to Proximitor® sensors for comprehensive machine health monitoring. It effectively addresses predictive maintenance challenges by enabling early fault diagnosis in fluid-film bearing equipment, such as unbalance or misalignment. Following the established 3300 XL probe pattern from similar models like 330103-00-03-05-02-05, the <span style=”color: blue;”>Bently Nevada 330103-00-04-10-02-00</span> features a 40 mm case length and 1.0 meter cable, ensuring seamless integration into existing 3300/3500 rack systems.
3. Technical Specifications
- Brand: Bently Nevada
- Model: 330103-00-04-10-02-00
- Warranty: One Year
- Condition: 100% New & Original
- Probe Diameter: 8 mm
- Unthreaded Length: 00 (0 mm / 0 inches)
- Overall Case Length: 04 (40 mm)
- Total Length: 10 (1.0 meter / 3.3 feet)
- Connector/Cable Type: 02 (Miniature coaxial ClickLoc™ connector, standard cable)
- Operating Temperature: -35°C to +177°C probe tip
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 303/304 stainless steel
4. Key Features & Benefits
- Extended Case Length: 40 mm design allows installation in moderate clearance housings while maintaining optimal probe tip positioning.
- ClickLoc™ Connector: Secure miniature coaxial connection resists disconnection under vibration, simplifying field maintenance.
- 1-Meter Cable Reach: Provides flexibility for routing to nearby Proximitor sensors without excessive signal attenuation.
- Robust Construction: PPS tip and stainless steel case withstand corrosive environments and high mechanical stresses.
5. Application Scenarios
- Centrifugal Pumps in Chemical Plants: Tracks radial shaft motion to identify impeller wear or cavitation damage early.
- Gearboxes in Mining Equipment: Measures gear mesh vibrations for condition-based maintenance scheduling.
- Boiler Feed Pumps: Monitors position variations to prevent dry-running failures in high-pressure systems.
6. Frequently Asked Questions (FAQ)
- Q: What is the primary function of the 330103-00-04-10-02-00 ?
A: It detects shaft proximity variations for vibration, position, and speed sensing in 3300 XL transducer systems. - Q: Is 330103-00-04-10-02-00 compatible with legacy systems?
A: Yes, fully compatible with 3300 XL Proximitor sensors, extension cables, and 3300/3500 monitoring racks.
