Description
Product Overview

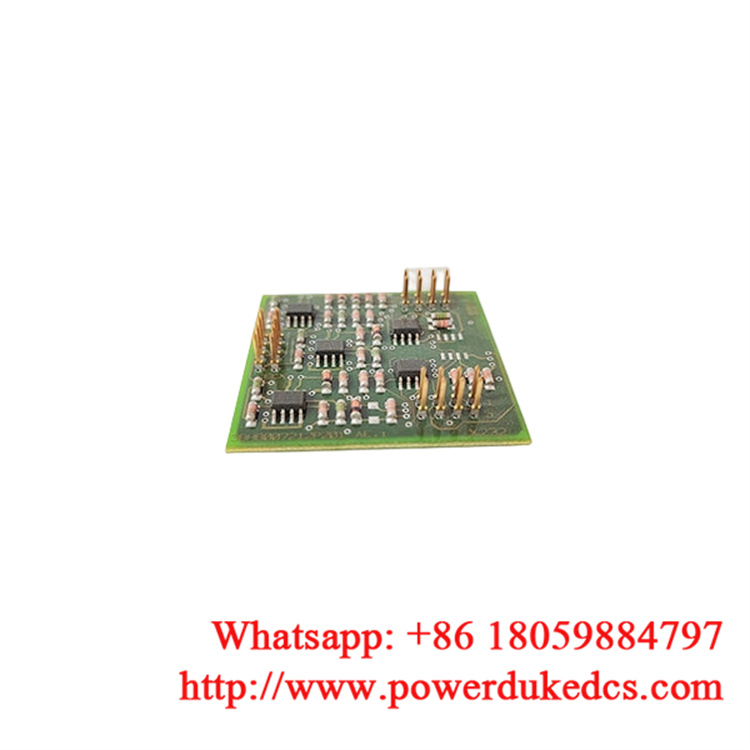

The ABB XVC768115 3BHB007211R115 is a high-performance analog output module designed for ABB’s S800 I/O system, a core component of distributed control solutions in industrial automation. This module converts digital control signals from a host system into precise analog outputs—supporting 4–20 mA current loops, 0–10 V voltage signals, and configurable current/voltage ranges—to drive field actuators such as control valves, variable frequency drives (VFDs), and proportional valves. Engineered for accuracy and reliability, the ABB XVC768115 3BHB007211R115 offers 8 isolated analog output channels, enabling simultaneous control of multiple actuators with minimal cross-interference. Its robust design, fast update rates, and wide environmental tolerance make it ideal for harsh industrial settings, including chemical processing, power generation, and pharmaceutical manufacturing, where precise analog signal delivery is critical for process stability.
Parameter Values
-
Product Model: XVC768115 3BHB007211R115
-
Brand: ABB
-
Warranty: One Year
-
Input Voltage: 24 V DC (±15%)
-
Operating Temperature: -40°C to +75°C
-
Storage Temperature: -50°C to +90°C
-
Response Time: ≤8 ms (per channel update)
-
Protection Class: IP20
-
Accuracy Class: 0.04% of full scale
-
Output Frequency: 150 Hz max (signal refresh rate)
-
Rated Current Range: 0.25 A to 0.7 A (module power consumption)
-
Communication Interface: S800 I/O backplane
-
Supported Protocols: Modbus TCP, PROFIBUS DP, Foundation Fieldbus (via external gateway)
-
Overload Capacity: 115% of rated output for 12 seconds
-
Dimensions: 120 mm x 90 mm x 35 mm
Application Scenarios
-
Chemical Process Control: XVC768115 3BHB007211R115 Driving control valves in reactors, distillation columns, and storage tanks to regulate reactant feed rates, temperature, and pressure, ensuring optimal reaction conditions and product quality.
-
Power Generation Optimization: Controlling VFDs for pumps, fans, and compressors in thermal or renewable energy plants, balancing load demands and minimizing energy consumption.
-
Pharmaceutical Batch Processing: Adjusting proportional valves in bioreactors, mixers, and filling machines to maintain precise levels of pH, dissolved oxygen, and ingredient ratios during drug formulation.
