Description
Product Overview

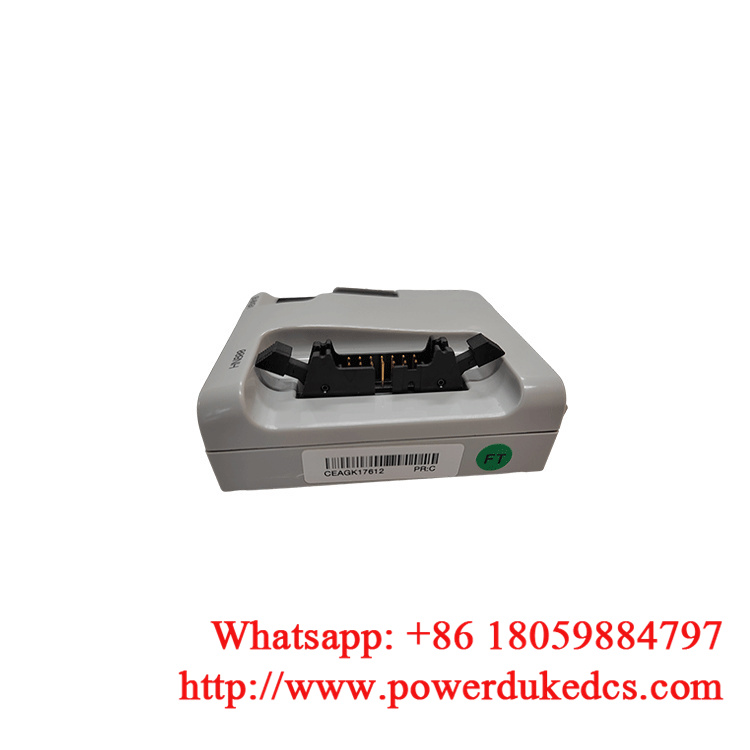

The ABB VBX01BA is a high-precision digital input control board designed for ABB AC800M and HN800/CW800 bus systems, specialized in reliable discrete signal acquisition and processing in industrial automation scenarios. As a core I/O component, ABB VBX01BA integrates 16 isolated input channels with configurable filtering, supporting AC voltage signals and ensuring strong anti-interference capability. With seamless compatibility with ABB industrial control architectures and flexible software configuration, ABB VBX01BA delivers stable signal transmission and accurate data feedback, making it ideal for critical processes requiring precise digital control and real-time monitoring.
Parameter Values
-
Product Model: ABB VBX01BA
-
Brand: ABB
-
Warranty: One Year
-
Input Voltage: 120 VAC (0-132 VAC, 47-63 Hz compatible)
-
Operating Temperature: -20°C to +60°C
-
Storage Temperature: -40°C to +85°C
-
Response Time: 0.5-100 ms (configurable via filter settings)
-
Protection Class: IP20 (panel-mounted)
-
Isolation Class: 250 VAC continuous (field to backplane), 1500 VAC for 1 minute
-
Input Channels: 16 isolated digital input channels
-
Input Current: 7.0 mA per channel (typical) at rated voltage
-
Communication Interface: Backplane Bus (compatible with AC800M/HN800)
-
Supported Protocols: ABB ModuleBus, HN800/CW800 Bus Protocol
-
Overload Capacity: 150% input current for 1 minute
-
Dimensions: 22.5 mm × 100 mm × 115 mm (W×H×D)
Application Scenarios
-
Process Industry Control: VBX01BA Applied in chemical, petroleum and power plants to collect discrete signals from valves, switches and sensors, supporting interlock control and real-time process monitoring.
-
Automated Manufacturing: Integrated into production lines and robotic control systems to capture equipment status signals, enabling precise workflow coordination and fault early warning.
-
Energy & Infrastructure: Used in power transmission monitoring systems, building automation and smart transportation, ensuring reliable data acquisition for energy management and facility control.
