Description
Product Overview

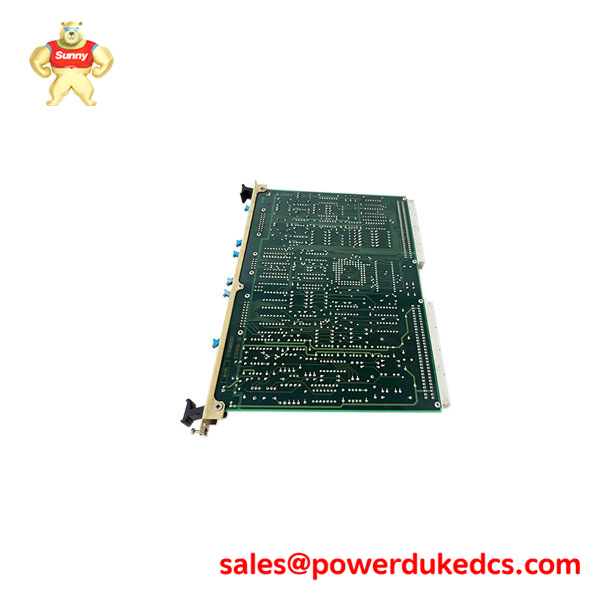

The ABB SCYC51040 58052680E is an industrial control module, widely used as a pulse / high‑speed counter board or I/O interface module in ABB Advant OCS, System 800xA, and other ABB control systems. It is designed to provide high‑precision pulse counting, speed measurement, or event timing for critical process variables. The ABB SCYC51040 58052680E is typically mounted in an S800 I/O rack or a dedicated control cabinet and is suitable for harsh industrial environments. It is commonly used to expand the digital I/O or pulse acquisition capabilities of a DCS/PLC system, ensuring accurate and reliable signal processing in real time
Parameter Values
-
Product Model: SCYC51040 58052680E
-
Brand: ABB
-
Warranty: One Year
-
Product Type: Pulse / High‑Speed Counter Module or I/O Interface Board
-
Function Code: SCYC51040
-
ABB Order No.: 58052680E
-
Input Voltage: 24 V DC
-
Input Signal Type: TTL / 24 V logic level pulse or switch signal
-
Input Frequency Range: Up to 100 kHz
-
Output Type: 24 V DC logic / open collector / relay contact
-
Output Load Capacity: Max. 500 mA per channel
-
Number of Channels: Varies by configuration
-
Isolation Voltage: 500 V AC RMS
-
Power Consumption: Approx. 3–6 W
-
Operating Temperature: –20°C to +60°C
-
Storage Temperature: –40°C to +85°C
-
Relative Humidity: 5–95% non‑condensing
-
Protection Class: IP20 (panel / cabinet mounting)
-
EMC Compliance: Meets IEC 61000‑6‑2 (industrial immunity) and IEC 61000‑6‑4 (emission)
-
Mounting: S800 I/O baseplate (e.g., TU830, TU840) or DIN rail / panel mount
-
Dimensions (W×H×D): Approx. 100 mm × 75 mm × 115 mm
-
Weight: Approx. 0.3–0.5 kg
Application Scenarios
-
Flow and Energy Metering:SCYC51040 58052680E Used with turbine or positive displacement flowmeters in oil & gas, water treatment, and power plants to provide accurate pulse‑based flow and energy data to the control system.
-
Motor Speed and Position Control:Connects to incremental encoders on motors or conveyors to provide real‑time speed and position feedback for closed‑loop control in manufacturing and material handling systems.
-
Batch and Event Counting:Employed in packaging, bottling, and textile industries to count product units, cycles, or events with high precision, ensuring accurate production data and quality control.
