Description
Product Overview

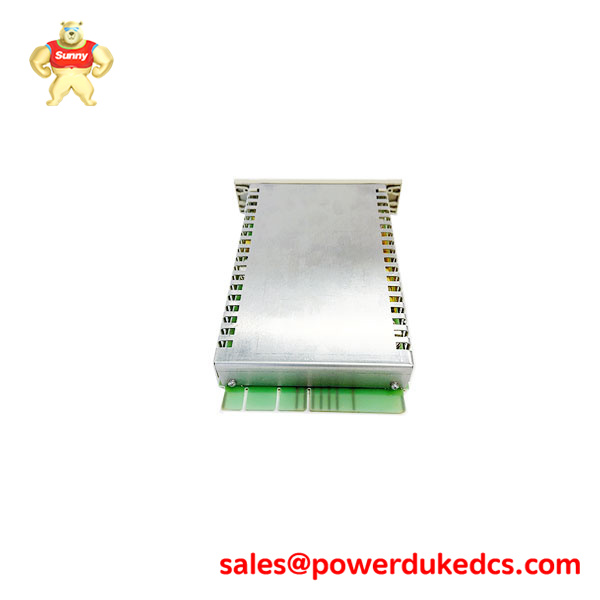

The ABB E3EP HENF315276R1 is a robust and advanced encoder interface module from ABB’s prestigious industrial automation portfolio, specifically designed for high-performance motion control and precision positioning systems. This module serves as a critical interface between incremental encoders and ABB’s AC500 PLC or higher-level control systems, converting precise shaft position feedback into reliable digital data. It is engineered for applications demanding exceptional accuracy and resilience in harsh industrial environments, such as heavy machinery, material handling, and advanced robotics. Core features include support for high-resolution signals, sophisticated diagnostics, and immunity to electrical noise. The ABB E3EP HENF315276R1 ensures seamless integration of precise feedback devices, forming the backbone of reliable closed-loop control systems where position accuracy is paramount for safety and efficiency.
Parameter Values
- Product Model: E3EP HENF315276R1
- Brand: ABB
- Warranty: One Year
- Supply Voltage: 24 VDC (19.2 – 30 VDC)
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +85°C
- Maximum Input Frequency: 1 MHz
- Signal Type: Differential (RS422) / Single-ended (HTL) selectable
- Input Channels: Dual-channel (A, B) with Zero pulse (Z)
- Number of Inputs: 3 (A, B, Z)
- Connection Type: Removable screw terminal block
- Supported Encoder Voltage: 5 VDC or 24 VDC (configurable)
- Power Consumption: 1.8 W typical
- Electrical Isolation: 500 V AC (between field side and logic side)
- Mounting: On DIN rail (35 mm)
- Dimensions: 105mm x 22.5mm x 116mm (H x W x D)
Application Scenarios
- Precision Motion Control: Critical for synchronizing axes in packaging machinery, printing presses, and CNC machines where the ABB E3EP HENF315276R1 provides the essential position feedback for accurate velocity and position loops.
- Material Handling Systems: Used in crane positioning, automated storage/retrieval systems (AS/RS), and conveyor line tracking to monitor and control the precise movement of goods and equipment.
- Heavy Industrial Machinery: Provides reliable rotational feedback for control systems in steel mill drives, paper winders, and mining equipment, ensuring operational accuracy under demanding conditions.
