Description
Product Overview

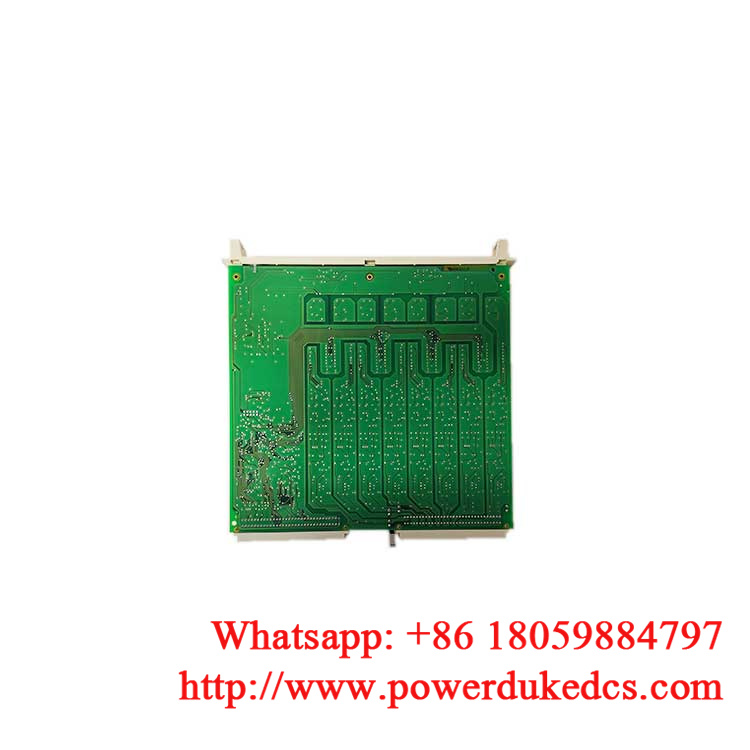

The ABB DSAO110 57120001-AT/1 is a high-precision analog output module developed for ABB’s Distributed Control System (DCS) platforms, delivering reliable signal transmission for critical process control applications. Designed to provide consistent and accurate voltage or current outputs, the ABB DSAO110 57120001-AT/1 supports multiple output ranges and ensures fast update rates with minimal deviation. Engineered for durability in harsh industrial settings, it integrates seamlessly into redundant architectures, offering enhanced system availability and simplified commissioning. With built-in diagnostics and flexible configuration options, the ABB DSAO110 57120001-AT/1 enables responsive control over actuators, valves, and other final control elements across a wide range of process industries.
-
Product Model: DSAO110 57120001-AT/1
-
Brand: ABB
-
Warranty: One Year
-
Input Voltage: 24 V DC ±15%
-
Operating Temperature: -25°C to +60°C
-
Storage Temperature: -40°C to +85°C
-
Response Time: ≤2 ms
-
Protection Class: IP30
-
Accuracy Class: 0.05%
-
Output Frequency: Up to 10 kHz equivalent update rate
-
Rated Current Range: 0 to 20 mA / 4 to 20 mA selectable
-
Communication Interface: Module bus (I/O backplane)
-
Supported Protocols: Proprietary DCS protocol (compatible with ABB S800 I/O systems)
-
Overload Capacity: 125% sustained, 150% for 10 seconds
-
Dimensions: 145 mm x 35 mm x 102 mm
Key Features and Benefits
High-resolution Analog Output: Delivers exceptionally accurate output signals with 16-bit resolution and low drift characteristics. The ABB DSAO110 57120001-AT/1 ensures precise actuator positioning and smooth process variable regulation in real time.
Integrated Diagnostics: Monitors channel status, output loop integrity, and supply conditions, providing early fault detection and reducing troubleshooting time. This feature boosts plant uptime and supports proactive maintenance strategies.
Seamless DCS Integration: Engineered for direct mounting in ABB S800 I/O systems, the ABB DSAO110 57120001-AT/1 supports hot-swappable installation and auto-addressing, facilitating fast deployment and minimal disruption during system updates or expansions.
Application Scenarios
-
Process Control: Driving analog actuators such as control valves in oil refining, gas processing, and pharmaceutical production.
-
Turbine and Boiler Regulation: Providing setpoints and control signals to governor systems and combustion controls in power generation facilities.
-
Industrial Heating and Cooling: Managing temperature control loops in continuous or batch processes requiring precise thermal management.
