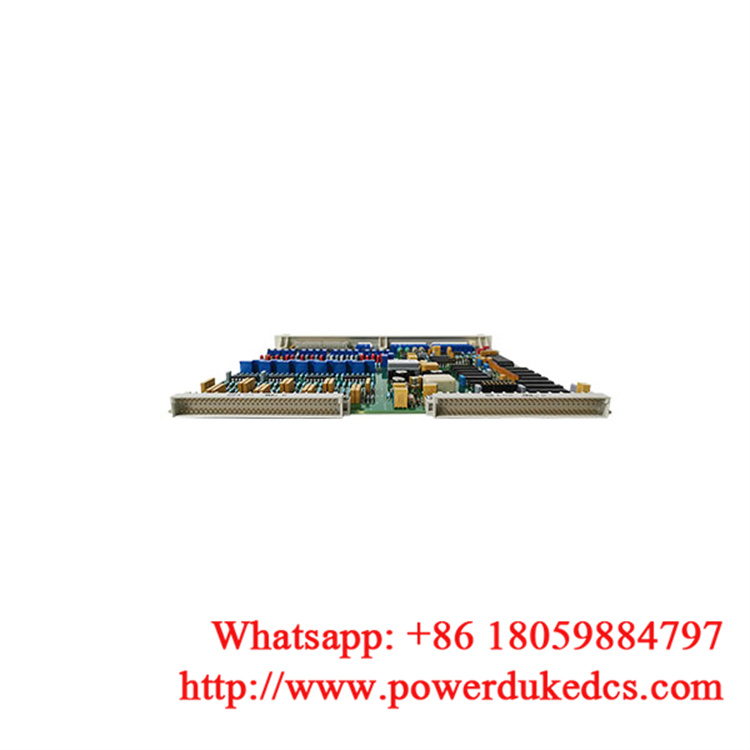

DSAI130D 3BSE003127R1 |±0.1% FS (25℃) | industrial automation analog input module

Description

The ABB DSAI130D 3BSE003127R1 is a high-performance industrial automation analog input module, specifically designed for analog signal acquisition tasks in industrial process control systems. The following is a detailed introduction to this module:

Core functions and features
It supports 8 independent analog input channels and can simultaneously collect continuous quantity signals such as temperature, pressure and flow.
The measurement accuracy reaches ± 0.1%FS (at 25℃), with a resolution of 16 bits and a sampling rate of 100Hz per channel, ensuring the precise capture of weak signals.
The input signal types include 4-20mA DC and millivolt-level signals (0-100mV), which are compatible with various field instruments (such as temperature transmitters, pressure sensors).

Number specification
Product Model:  DSAI130D 3BSE003127R1
Channel configuration: 8 independent analog input channels
Input signal types: 4-20mA DC, 0-100mV
Measurement accuracy: ±0.1% FS (25℃)
Resolution: 16 bits
Sampling rate: 100Hz per channel
Electrical isolation: 2500V AC (between channels and between systems)
Operating voltage: +5V DC / +24V DC (system backplane power supply)
Protection grade: IP20
Certification qualifications: CE, UL, CSA, IEC 61131-3, EN 61000

Application scenarios
Power industry: Collection of process parameters for thermal power/hydropower (such as boiler temperature, steam pressure).
Petrochemical industry: Pressure/flow signal acquisition and monitoring in refining and chemical plants.
Metallurgical industry: Monitoring and control of temperature signals in steelmaking/steel rolling.
Water treatment: Water quality parameter collection system (such as pH value, dissolved oxygen).
Rail transit: Temperature monitoring and fault early warning of traction systems.
Pharmaceutical industry: Temperature/pressure collection and safety interlock of reaction vessels.
Wind power industry: Collection of wind turbine operation parameters and condition assessment.

Please contact Sunny [email protected] for the best price.
